Name: 2.7 inch E-Paper 264x176 Resolution Eink Display Communicating via SPI Interface
Brand: GOOD DISPLAY
SKU: GDEY027T90
Price: 8.37 USD
Availability: InStock
Rating: 5 (7 reviews)

Description

		2.7 Inch E-Ink Display 264x176 High-Resolution SPI ePaper Screen for Low Power Applications

		The GDEY027T91 is a 2.7-inch E Ink display featuring a resolution of 264x176 pixels and an SPI interface, designed for displaying black and white content. It supports three refresh modes: full refresh in 3s, fast refresh in 1.5s, and partial refresh in 0.42s. Its bistable display technology ensures that images persist even when power is disconnected, making it ideal for low-power devices powered by solar or batteries. With wide viewing angles, anti-glare surface treatment, and no blue light or radiation emissions, it suits applications in smart home devices, wearables, electronic tags, and e-readers.

Our product boasts distinctive features that set it apart from the competition

● Forever Display, Zero Power Consumption: The GDEY027T91 features bistable display technology, ensuring images are preserved indefinitely even without power. Ideal for solar-powered devices or those requiring long battery life.
● Crystal Clear, Immersive Viewing: With a remarkable 264x176 pixel resolution and a wide viewing angle exceeding 170 degrees, every detail on the GDEY027T91 is rendered with vivid realism, whether in landscape or portrait orientation.
● Efficiency in Action, Real-Time Updates: Supporting multiple refresh modes—from rapid (1.5s) to selective (0.42s)—this display ensures information updates swiftly and responsively, setting a new standard for efficiency.
● Green Technology, Eye-Care Comfort: Operating without constant refresh needs and power support, the GDEY027T91 is environmentally friendly and energy-efficient. It emits no blue light or radiation, prioritizing both ecological responsibility and eye protection.
● Customizable Options, Smart Applications: Offering optional touch capabilities and front-lighting, it’s tailored to meet diverse needs perfectly, whether in smart homes, industrial settings, or beyond. Versatility at its finest.
● Reliable Performance, Leading Choice: Equipped with the SSD1680 driver chip and SPI interface, the GDEY027T91 delivers consistent and dependable performance, making it the forefront choice for advanced display solutions.

		Technical Details
		Please refer to the product drawings for detailed dimensions

Please refer to the product specifications for more details

PART NUMBER	GDEY027T91	CONNECTOR	24 Pin FPC
TYPE	Dot Matrix	MAX GRAYSCALE	4
SIZE	2.7 inch	COLOR	Black,White
IC	SSD1680	INTERFACE	SPI
RESOLUTION	264x176	FULL REFRESH(s)	3
OUTLINE SIZE(mm)	70.42x45.8x1.0	PARTIAL REFRESH TIME(s)	0.42
ACTIVE SIZE(mm)	57.29x38.19	FAST REFRESH TIME(s)	1.5
PIXEL PITCH(mm)	0.217x0.217	POWER CONSUMPTION OF THE REFRESH(mW)	9
OPERATING TEMP.	0℃~50℃	STANDBY POWER CONSUMPTION (mW)	0.003
STORAGE TEMP.	-25℃~70℃

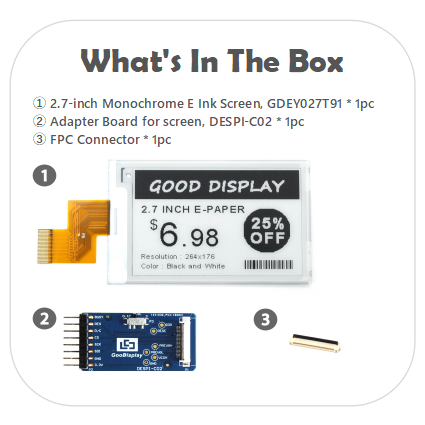

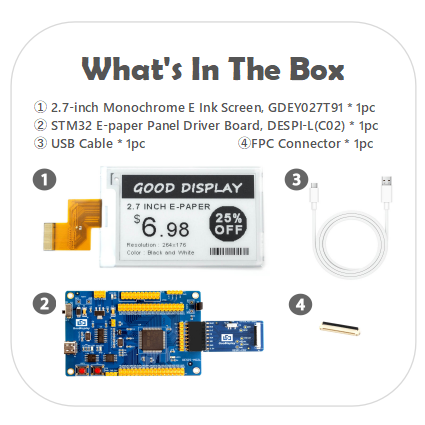

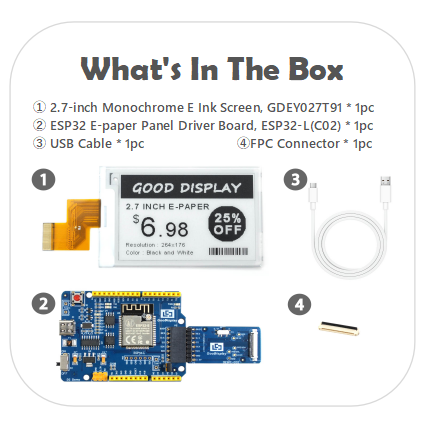

Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

a. DESPI-C02 (E-ink Display adapter Board)	b. DESPI-L(C02) (STM32 Demo Kit)	c. DEArduino-L(C02) (Arduino Platform Demo Kit)	d. ESP8266-L(C02) (ESP8266 Demo Kit)

e. ESP32-L(C02) (ESP32 Demo Kit)	f. NFC-D3-029 (NFC Driver Board	g. ESP32E6-E01 (24Pin SPI ePaper Display Demo Kit)

Related Information Download Click on the subheadings below to download

	● GDEY027T91 Specification	● GDEY027T91 Arduino Sample Code
	● SSD1680 Driver IC Datasheet	● GDEY027T91 ESP8266 Sample Code
	● Picture Production and Bitmap Convert for GDEY027T91	● The latest Catalog of ePaper display
	● GDEY027T91 STM32 Sample Code	● Why can't I download the files?
	● GDEY027T91 ESP32 Sample Code
