1.54 inch Electronic paper display Customizable 1.5s fast refresh partial refresh digital price tags screen
USD $6.68

1

Please selectProducts
EPD
qty :
191 available
Close
USD $6.68
Products :

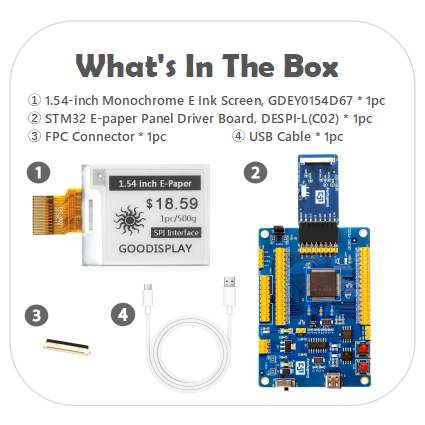

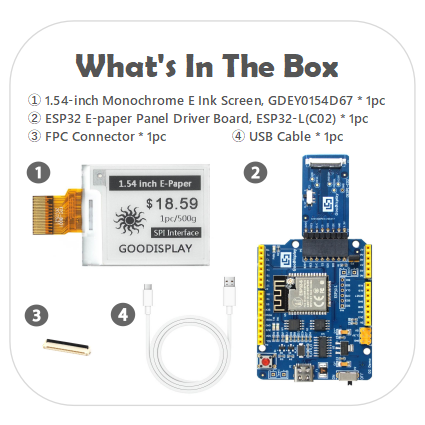

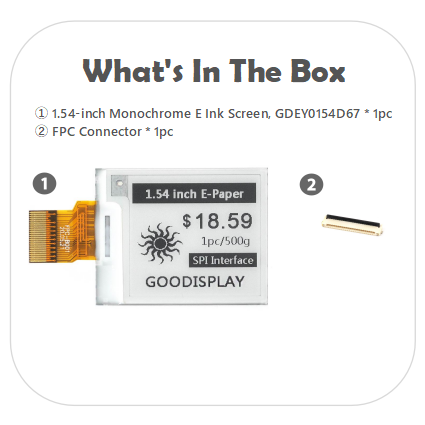

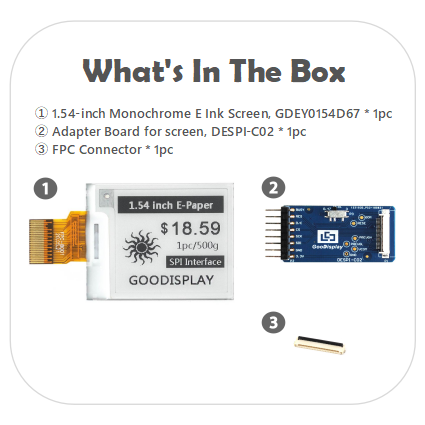

EPD EPD with adapter board EPD with STM32 Demo Kit EPD with ESP32 Demo Kit Adapter Board
qty :
191 available
Have a question?
Find answers in product info, Q&As, reviews
Have a question?
Description


1.54'' E-Paper Display with 1.5s Fast Refresh for Digital Price Tags





Reimagine Displays with the 1.54-Inch E-Ink Screen—Perfect for Every Smart Solution. From shelf tags and smart tags to wearable gadgets, industrial instruments, and smart cards—this versatile display is ready to meet your needs. With customizable options like touch screens and front lighting, it’s the ultimate choice to elevate your device. Ready to revolutionize your technology?

* Note: We can customize the OTP code to make the refresh time of this 1.54 inch e-paper display reach to 1.5s, if you need, please contact us.












Special Features


 ● Power-Saving Marvel: Runs on minimal energy—perfect for solar or battery-powered devices.
 ● Crystal-Clear Quality: 200x200 resolution, sharp black-and-white display, and image retention with zero power.
 ● Speed at Your Fingertips: Choose from Full (2s), Fast (1.5s), or Partial (0.26s) refresh modes.
 ● Built to Perform: Operates at 3.3V and thrives in temperatures from 0-50°C.
 ● Eyes Love It: Wide 170°+ viewing angle, anti-glare finish, and no harmful blue light.











Technical Details










Product Specifications


PART NUMBER GDEY0154D67 CONNECTOR 24 PIN 0.5mm
TYPE Dot Matrix COLOR Black, White
SIZE 1.54 inch INTERFACE SPI
IC SSD1681 MAX GRAYSCALE 4
RESOLUTION 200x200 FULL UPDATE TIME(s) 2
PPI 183.66 FAST REFRESH TIME(s) 1.5
OUTLINE SIZE(mm) 31.8x37.32x1.00 PARTIAL REFRESH TIME(s) 0.26
ACTIVE SIZE(mm) 27x27 POWER CONSUMPTION OF THE REFRESH(mW) 4.5
PIXEL PITCH(mm) 0.14x0.14 STANDBY POWER CONSUMPTION (mW) 0.003
OPERATING TEMP. 0℃~50℃ STORAGE TEMP. -25℃~70℃











Product Application

Smart home application

Smart card

Wearable device

Smart tag

Industrial instrument











Every Day is Earth Day





  You don't need to be an environmental scientist to make sustainable choices.
At GooDisplay, we passionately integrate sustainability into the production of e-paper.










Substitute for Paper Usage

Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.

Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.

Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.
