Description

1.54" E-Ink Display with Front Light and Touchscreen Enhanced Clarity and Interactivity

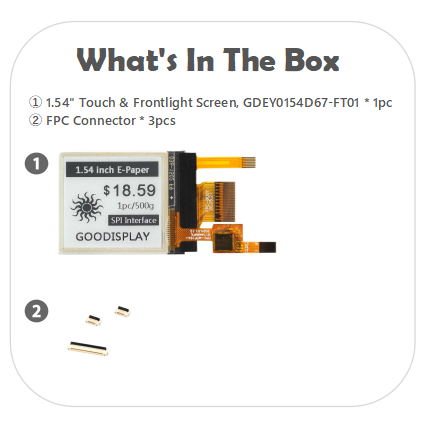

Name: 1.54-Inch E-Ink Screen with Frontlight and Touch Function Ultra-Fast 1.5s Refresh Rate
Brand: GOOD DISPLAY
SKU: GDEY0154D67-FT01
Price: 12.80 USD
Availability: InStock
Rating: 5 (3 reviews)

This 1.54-inch E-Ink display, with low power use, touchscreen, and a backlight, is perfect for smart devices, wearables, and IoT applications, offering always-on, energy-efficient performance in low-light environments.

TIP: The front light & touch screen is not sold separately due to precise bonding requirements. Please purchase the complete bonded product. For temperature details, refer to the display screen specifications.

	Special Features
	● Front Light, Read Anytime – Built-in lighting for clear visibility in low light, read effortlessly day or night. ● Touch Control, Intuitive & Smooth – Precise touch response, swipe and tap with ease for seamless navigation. ● 1.54-inch Display with Fast Refresh, achieve maximum efficiency with a 1.5 s full refresh and a super-fast 0.3 s partial refresh. ● A wide range of development solutions, dedicated after-sales support, and comprehensive user manuals to ensure your success every step of the way.

Touch in the Dark, Light Always with You

— The Perfect Fusion of Front Light and Touchscreen

The GDEY0154D67-FT01 is a 1.54-inch E Ink display featuring front light and touch screen functionality, with a resolution of 200x200,power consumption of the refresh 4.5 mW. It offers impressive refresh rates, ensuring smooth and efficient performance for various applications.

This e-paper display is built on the standard 1.54-inch (GDEY0154D67), enhanced with a front light and touchscreen functionality. The front light can even flash in low-light conditions, serving as a warning feature. With the integrated touchscreen, users can interact directly with the display, significantly improving usability. It's ideal for embedded control systems, intuitive input devices, interactive displays, especially in low-light environments. (This video is for demonstration purposes only and does not represent the actual product.)

	Technical Details

Product Specifications
PART NUMBER	GDEY0154D67-FT01	TOUCH CONNECTOR	6 Pin FPC
TYPE	Dot Matrix	TOUCH IC	FT6336U
SIZE	1.54 inch	TOUCH VOLTAGE	2.8-3.6 V
IC	SSD1681	CONNECTOR	6 pin FPC
RESOLUTION	200x200	NUMBER OF LED LIGHT	3
OUTLINE SIZE(mm)	37.32x31.8x2.23	FRONT-LIT CIRCUIT MODE	Parallel
ACTIVE SIZE(mm)	27.00x27.00	OPERATING VOLTAGE	2.8V-3.3V
ACTIVE SIZE(mm)	0.14x0.14	OPERATING CURRENT	≤45mA
OPERATING TEMP.	0℃~50℃	FULL REFRESH(s)	2
STORAGE TEMP.	-25℃~70℃	FAST REFRESH(s)	1.5
CONNECTOR	24 Pin FPC	PARTIAL REFRESH TIME(s)	0.3
MAX GRAYSCALE	4	POWER CONSUMPTION OF THE REFRESH(mW)	4.5
COLOR	Black,White	STANDBY POWER CONSUMPTION (mW)	0.003
INTERFACE	SPI

Matching Driver Boards

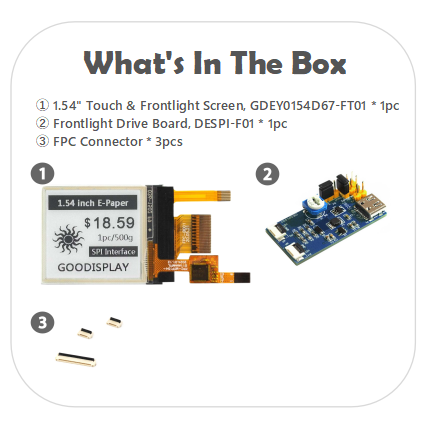

Ⅱ. DESPI-F01
(Front-light Driver Board)

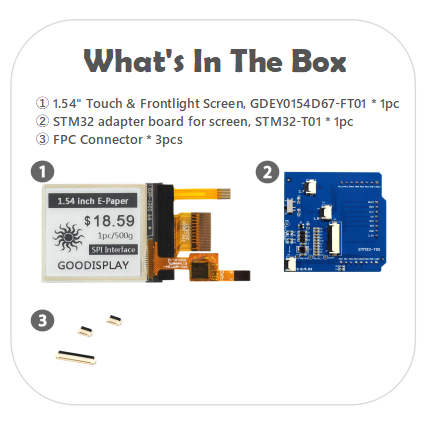

Ⅲ. STM32-T01
(STM32 adapter Board)

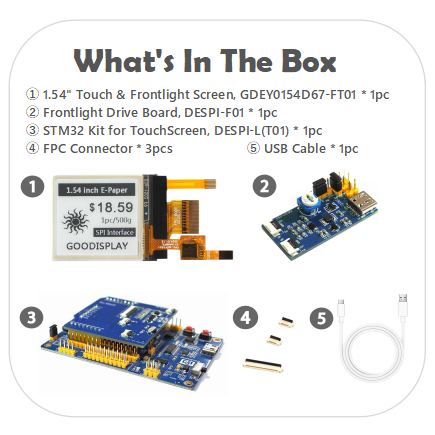

Ⅳ. DESPI-L(T01)
(STM32 Demo Kit)

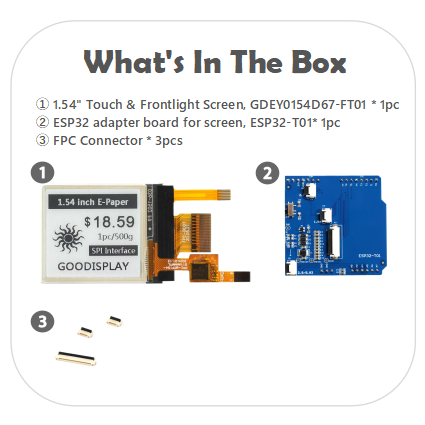

Ⅴ. ESP32-T01
(ESP32 adapter Board)

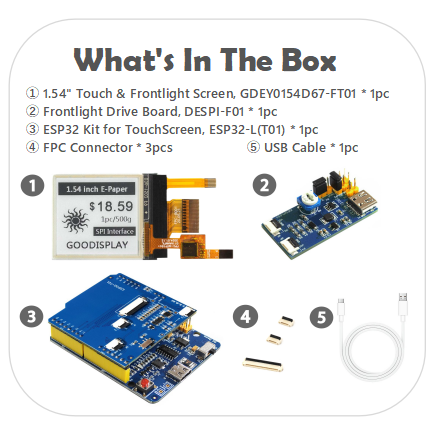

Ⅵ. ESP32-L(T01)
(ESP32 Demo Kit)

	Files And Download
	● GDEY0154D67-FT01 specification	● Why can't I download the files(updated)?
	● The Lastest Catalog

Product Application

Smart Home Control Panels	Portable Health Devices	Industrial Control Terminals	Nameplates and Desk Cards	Personalized Accessories

Every Day is Earth Day
You don't need to be an environmental scientist to make sustainable choices. At GooDisplay, we passionately integrate sustainability into the production of e-paper.

Substitute for Paper Usage Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.	Device Packaging 95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.	Energy Efficiency Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.

WE ALSO SUGGEST


1.54 inch electronic paper display Customizable 1.5s fast refresh partial refresh digital price tags screen, GDEY0154D67	1.54 inch E-paper Display 200x200 Resolution Partial Screen Update Touch Eink Display, GDEY0154D67-T03	1.54 inch small e-ink display with frontlight 4 Grayscale display panel, GDEY0154D67-FL04	1.54 inch e-paper display high resolution 200x200 partial refresh fast speed GDEW0154M09

Epaper-display Thin 1.54inch epaper Electronic Shelf Label E Ink Panel, GDEM0154Z91	1.54 inch E-paper four color yellow and red Eink High Resolution 200x200, GDEM0154F51H	1.54-inch E-paper Display Module Wide Temperature(-25°C~50°C) Resolution 200x200, GDEM0154D67WT	1.22 inch high-frequency update E Ink screen with 2s fast refresh 176x192, GDEM0122T61

ABOUT US
Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com]. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].

PARAMETERS

PARAMETERS

PART NUMBER	GDEY0154D67	CONNECTOR	24 Pin FPC
TYPE	Dot Matrix	MAX GRAYSCALE	4
SIZE	1.54 inch	COLOR	Black,White
IC	SSD1681	INTERFACE	SPI
RESOLUTION	200x200	FULL REFRESH TIME(s)	2
OUTLINE SIZE(mm)	31.8x37.32x1.00	FAST REFRESH TIME(s)	1.5
ACTIVE SIZE(mm)	27x27	PARTIAL REFRESH TIME(s)	0.26
PIXEL PITCH(mm)	0.14x0.14	POWER CONSUMPTION OF THE REFRESH(mW)	4.5
OPERATING TEMP.	0℃~50℃	STANDBY POWER CONSUMPTION (mW)	0.003
STORAGE TEMP.	-25℃~70℃

1.54 Inch E-paper Display Related Products List >>

Explanation of the refresh process (Refresh time: the entire period from when the screen first reacts until the image stabilizes):

1. Full update: During the refresh process, the screen may flicker multiple times.
2.Fast update: The screen flickers once during the refresh process.
3. Partial update: The screen does not flicker during the refresh process.

Note: When using Fast update and Partial update, it is recommended to perform a Full-Screen Refresh after every five consecutive operations. This helps reduce the accumulation of screen ghosting.

If you need grayscale code, please contact us.
