Name: Ultra Compact 0.97-Inch E Ink Screen Lightning-Fast 0.26s Partial Refresh 18PIN
Brand: GOOD DISPLAY
SKU: GDEM0097T61
Price: 3.50 USD
Availability: InStock
Rating: 5 (3 reviews)

Description

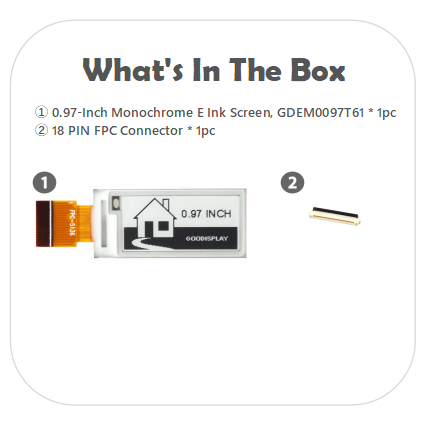

		0.97-inch Mini E-Ink Display for DIY Projects and IoT Devices

		This 0.97-inch mini e-paper screen, with a resolution of 184x88 and an SPI interface, is ideal for displaying black and white images. It supports partial refresh with a refresh time of 0.26 seconds. The display holds the image indefinitely without power, allowing you to update the image, then shut down the power completely. Once updated, the e-paper module retains the content even when disconnected from power. This feature makes the GDEM0097T61 perfect for low-power devices powered by solar or batteries. It's great for applications such as shelf tags, smart tags, wearable devices, smart home applications, industrial instruments, and smart cards.

Our product boasts distinctive features that set it apart from the competition

● Ultra-thin and lightweight: The ultra-small 0.97-inch e-ink screen is extremely thin and weighs only 0.89g, making it suitable for use in portable devices without adding significant weight or thickness.
● Lightning-Fast Refresh: Full refresh in just 3s and partial refresh in only 0.26s, ensuring quick response and real-time updates.
● Bistable Display: Retains images even when powered off, offering true "power-off image retention" for ultimate energy savings.
● Ultra-Wide Viewing Angle: With over 170 degrees of visibility, your display stays clear from any angle.
● Anti-Glare and Eye-Friendly: Hard-coated surface for glare resistance, no blue light, and zero radiation for healthier eyes.
● Low Power Consumption: Consumes power only during refreshes, making it perfect for solar or battery-powered devices, ensuring maximum efficiency.

		Technical Details
		Please refer to the product drawings for detailed dimensions

Please refer to the product specifications for more details

PART NUMBER	GDEM0097T61	CONNECTOR	18 Pin FPC
SIZE	0.97 inch	TYPE	Dot Matrix
IC	SSD1680	MAX GRAYSCALE	4 (Contact us for grayscale codes)
RESOLUTION	184x88	COLOR	Black, White
OUTLINE SIZE(mm)	30.0x14.15x1.0	INTERFACE	SPI
ACTIVE SIZE(mm)	22.26x10.65	FULL UPDATE TIME(s)	2
PIXEL PITCH(mm)	0.121x0.121	FAST REFRESH TIME(s)	2
OPERATING TEMP.	0℃~50℃	PARTIAL UPDATE TIME(s)	0.3
STORAGE TEMP.	-25℃~70℃	4 GRAYSCALE REFRESH(s)	2
DEEP SLEEP POWER(mW)	0.003	TYPICAL POWER(mW)	9

Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

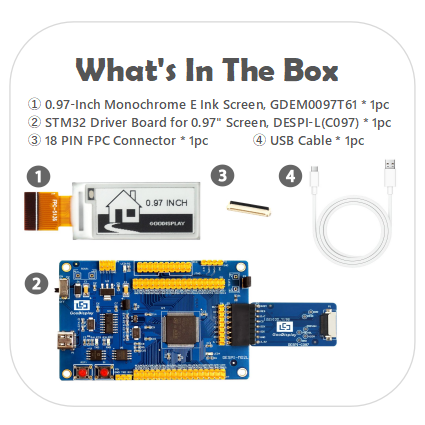

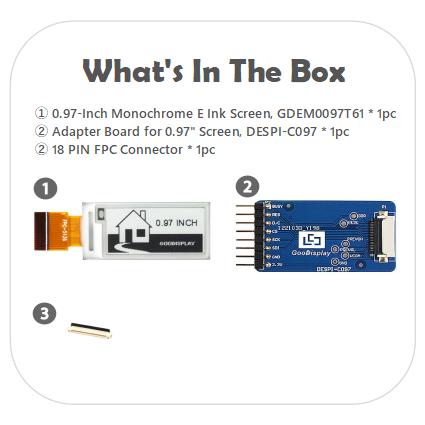

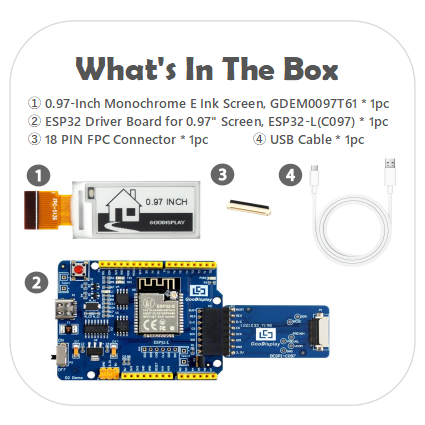

a.DESPI-C097 (E-ink Display adapter Board)	b.DESPI-L(C097) (STM32 Demo Kit)	c. ESP32-L(C097) (ESP32 Demo Kit)

Files and Download Click on the subheadings below to download

	● GDEM0097T61 Specification	● GDEM0097T61 Arduino Sample Code
	● SSD1680 Driver IC Datasheet	● GDEM0097T61 ESP8266 Sample Code
	● GDEM0097T61 STM32 Sample Code	● Why can't I download the files?
	● GDEM0097T61 ESP32 Sample Code	● ePaper display RoHS Report
	● Picture Production and Bitmap Convert for GDEM0097T61	● ePaper Display Reach Report

Product Application

Shelf tags	Smart tags	Wearable devices	Smart home applications	Industrial instruments	Smart card
