This is a 2.7 inch small e-ink display with capacitive touch screen, 264x176 resolution, SPI interface, and the display is capable to display images with black and white content. It supports 3s full refresh, 1.5s fast refresh and 0.42s partial refresh. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW027T91-T01 is perfect for low power devices powered by solar or batteries.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE

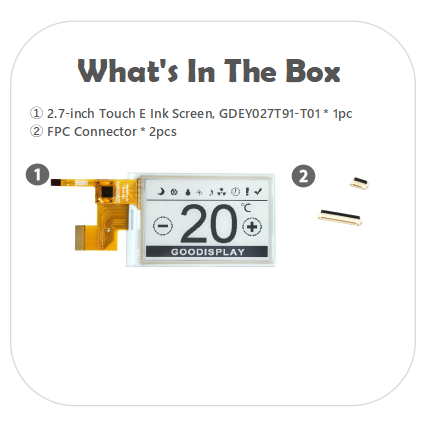

Package A | + | ||||||||
a. 2.7 inch e-ink touch screen SPI interface China 4 Grayscale e-ink screen manufacturer with touch panel,GDEY027T91-T01 * 1pc | b. FPC Connector * 2pc | ||||||||
|
|||||||||

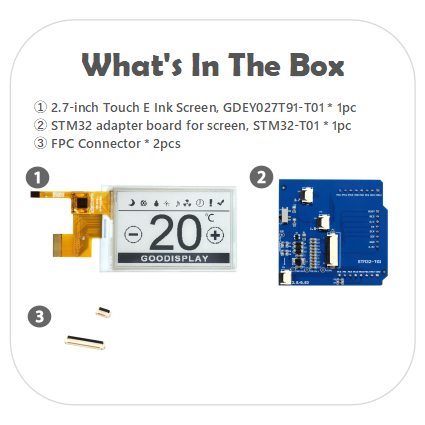

Package B | + | + | |||||||
a. 2.7 inch e-ink touch screen SPI interface China 4 Grayscale e-ink screen manufacturer with touch panel,GDEY027T91-T01 *1pc | b. FPC Connector * 2pcs | c. Multifunction E-paper HAT connection STM32 adapter board, STM32-T01* 1pc | |||||||
|
|||||||||

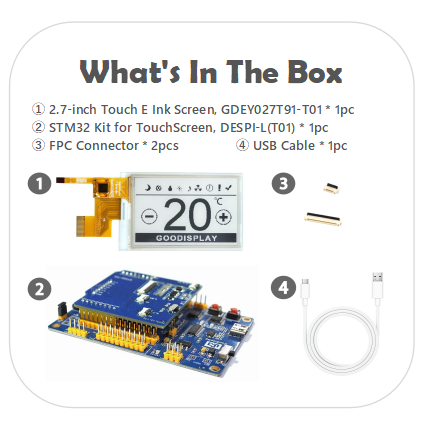

Package C | + | + | + | ||||||
a. 2.7 inch e-ink touch screen SPI interface China 4 Grayscale e-ink screen manufacturer with touch panel,GDEY027T91-T01 *2pcs | b. FPC Connector * 4pcs | c. STM32 development board Type-C interface ultra-low power consumption for touch e-ink epaper, DESPI-L(T01)* 1pc | d. USB Cable* 1pc | ||||||
|

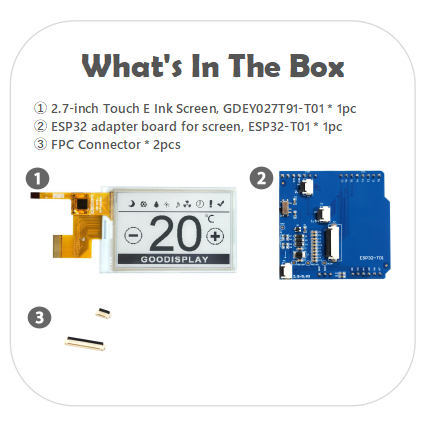

Package D | + | + | |||||
a. 2.7 inch e-ink touch screen SPI interface China 4 Grayscale e-ink screen manufacturer with touch panel,GDEY027T91-T01 *1pc | b. FPC Connector * 2pcs | c. Multifunction E-paper HAT connection ESP32 adapter board, ESP32-T01* 1pc | |||||
|
|||||||

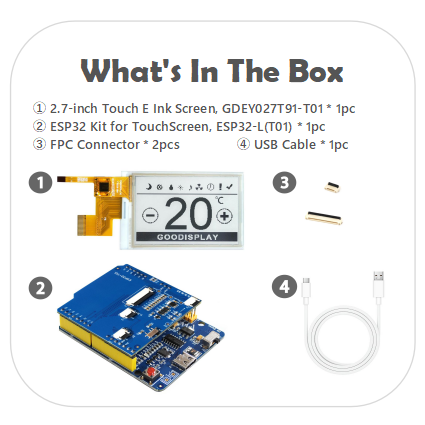

Package E | + | + | + | ||||
a. 2.7 inch e-ink touch screen SPI interface China 4 Grayscale e-ink screen manufacturer with touch panel,GDEY027T91-T01 *2pcs | b. FPC Connector * 4pcs | c. ESP32 development board Type-C interface ultra-low power consumption for touch e-ink epaper, ESP32-L(T01)* 1pc | d. USB Cable* 1pc |
PART NUMBER |
GDEY027T91-T01 |
||
TYPE |
Dot Matrix |
CONNECTOR | 24 Pin FPC |
SIZE |
2.7 inch |
MAX GRAYSCALE | 4 |
IC |
SSD1680 |
COLOR | Black,White |
RESOLUTION |
264x176 |
INTERFACE | SPI |
OUTLINE SIZE(mm) |
70.42x45.8x1.23 |
FULL REFRESH(s) | 3 |
ACTIVE SIZE(mm) |
57.29x38.19 |
FAST REFRESH(s) | 1.5 |
PIXEL PITCH(mm) |
0.217x0.217 |
PARTIAL REFRESH TIME(s) | 0.42 |
OPERATING TEMP. |
0℃~50℃ |
POWER CONSUMPTION OF THE REFRESH(mW) | 9 |
STORAGE TEMP. |
-25℃~70℃ |
STANDBY POWER CONSUMPTION (mW) | 0.003 |
OPERATING VOLTAGE(V) |
3.3 |
TOUCH SCREEN INTERFACE |
IIC |
TOUCH SCREEN CURRENT(mA) |
5 |
|
● Support 4 Grayscale
● Support 1.5s fast refresh
● With capacitive touch screen
● Versatile. Use in portrait or landscape format
● It supports partial refresh, the refresh rate is 0.42s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
● STM32-T01 (E-ink Display HAT)
● DESPI-L(T01) (STM32 Platform/Universal)
● ESP32-T01 (WiFi)
● ESP32-L(T01) (WiFi / Bluetooth)
☆ RELATED INFORMATION DOWNLOAD
● GDEY027T91-T01_Specification
● TP027-S01 Touch Screen Drawing
● Demo code for 2.7 inch touch panel FT6336
● GDEY027T91-T01 (E-Paper+Touch Screen) Drawing
● GDEY027T91-T01_STM32 Sample Code
● STM32-T01 Specification
● STM32-T01_SCH
Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
PART NUMBER | SIZE | COLOR | RESOLUTION | ACTIVE SIZE(mm) | FULL UPDATE(S) | OPERATING TEMP. | PARTIAL UPDATE | FLEXIBLE |
GDEW0097T50 | 0.97'' | BW | 184x88 | 22.264x10.648 | 4 | 0℃~50℃ | √ | |
GDEW0097C50 | 0.97'' | BWY | 184x88 | 22.264x10.648 | 22 | 0℃~40℃ | ||
GDEW0102T4 | 1.02'' | BW | 128x80 | 21.76x14 | 3 | 0℃~50℃ | √ | |
GDEW0102I3F | 1.02'' | BW | 128x80 | 21.76x14 | 3 | 0℃~50℃ | √ | √ |
1.02'' |
BW |
128x80 |
21.76x14 |
3 |
0℃~50℃ |
√ |
√ |
|
GDEW0154M10 | 1.54'' | BW | 152x152 | 27.512x27.512 | 3 | -10℃~60℃ | ||
GDEY0154D67 | 1.54'' | BW | 200x200 | 27x27 | 2 | 0℃~50℃ | √ | |
GDEW0154T8D | 1.54'' | BW | 152x152 | 27.51x27.51 | 3 | 0℃~50℃ | √ | |
GDEY0154Z90 | 1.54'' | BWR | 200x200 | 27x27 | 16 | 0℃~40℃ | ||
GDEW0154I9FC | 1.54'' | BW | 152x152 | 27.51x27.51 | 3 | 0℃~50℃ | √ | √ |
GDEW0213I5FD | 2.13'' | BW | 212x104 | 48.55x23.71 | 3 | 0℃~50℃ | √ | √ |
GDEY0213B74 | 2.13'' | BW | 250x122 | 48.55x23.7046 | 3 | 0℃~50℃ | √ | |
GDEY0213Z98 | 2.13'' | BWR | 250x122 | 48.55x23.7046 | 14 | 0℃~40℃ | ||
GDEW0213T5D | 2.13'' | BW | 212x104 | 48.55x23.71 | 3 | 0℃~50℃ | √ | |
GDEW026T0D | 2.6'' | BW | 296x152 | 60.09x30.7 | 3 | 0℃~50℃ | √ | |
GDEY0266T90 | 2.66'' | BW | 296x152 | 60.088x30.704 | 3 | 0℃~50℃ | √ | |
GDEY0266Z90 | 2.66'' | BWR | 296x152 | 60.088x30.704 | 12 | 0℃~40℃ | ||
GDEY027T91 | 2.7'' | BW | 264x176 | 57.29x38.19 | 3 | 0℃~50℃ | √ | |
GDEY029T94 | 2.9'' | BW | 296x128 | 66.896x29.056 | 3 | 0℃~50℃ | √ | |
GDEY029Z94 | 2.9'' | BWR | 296x128 | 66.896x29.056 | 12 | 0℃~40℃ | ||
GDEW029I6FD | 2.9'' | BW | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | √ | √ |
GDEQ031T10 | 3.1'' | BW | 320x240 | 62.72x47.04 | 3 | 0℃~50℃ | √ | |
GDEY037Z03 | 3.71'' | BWR | 416x240 | 81.54x47.04 | 12 | 0℃~40℃ | ||
GDEY037T03 | 3.71'' | BW | 416x240 | 81.54x47.04 | 3 | 0℃~50℃ |
