This is a 2.7 inch small e-ink display with front light, 264x176 resolution, SPI interface, and the display is capable to display images with black and white content. It supports 3s full refresh, 1.5s fast refresh and 0.42s partial refresh. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEY027T91-FL02 is perfect for low power devices powered by solar or batteries.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE

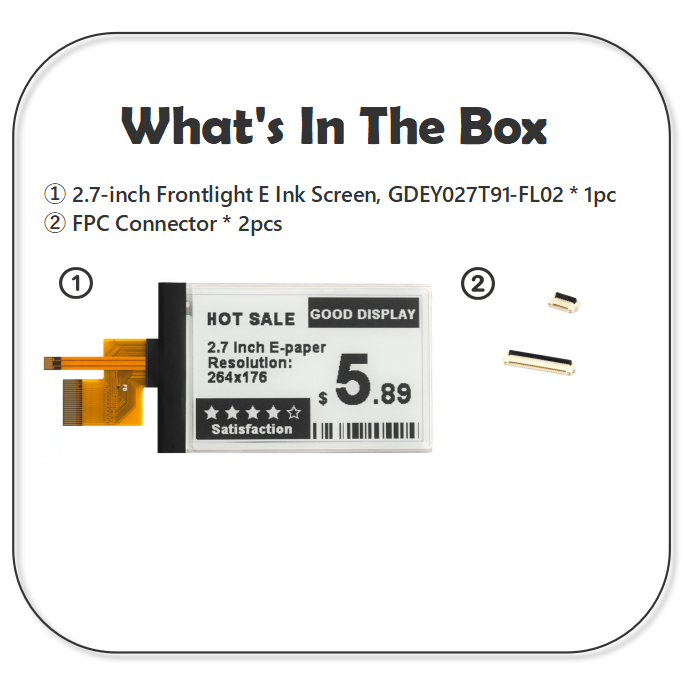

Package A | + | ||||||||
a. 2.7 inch e-ink touch screen SPI interface China 4 Grayscale e-ink screen manufacturer with front light, GDEY027T91-FL02 * 1pc | b. FPC Connector * 2pcs | ||||||||
|
|||||||||
Package B | + | + | |||||||
a. 2.7 inch e-ink touch screen SPI interface China 4 Grayscale e-ink screen manufacturer with front light, GDEY027T91-FL02 * 1pc | b. FPC Connector * 2pcs | c. Epaper HAT Connection Adapter Board Frontlight Drive Board, DESPI-F01* 1pc | |||||||
|
|||||||||

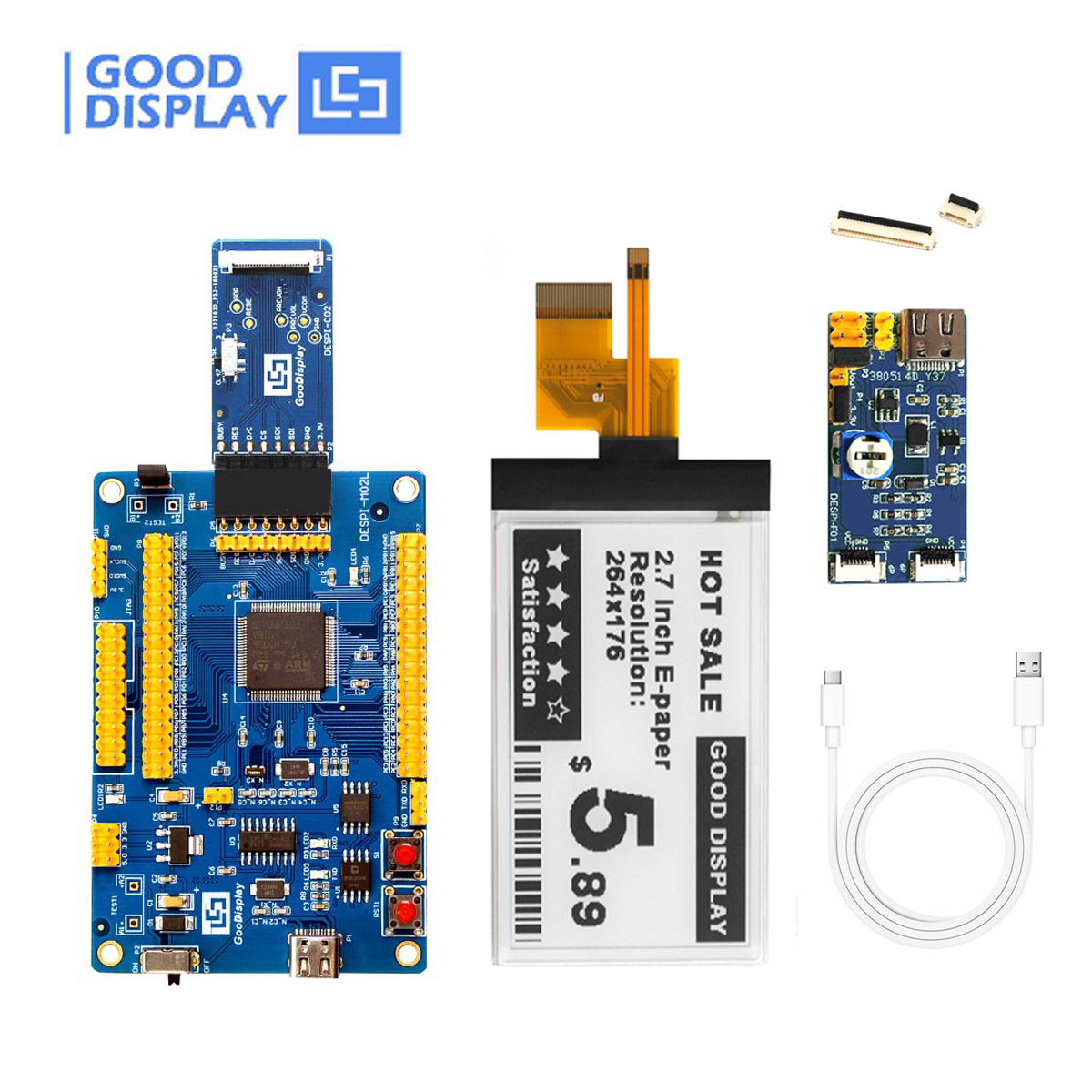

Package D | + | + | + | ||||||
a. 2.7 inch e-ink touch screen SPI interface China 4 Grayscale e-ink screen manufacturer with front light, GDEY027T91-FL02 * 2pcs | b. FPC Connector * 4pcs | c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02)* 1pc | d. USB Cable* 1pc | ||||||
|

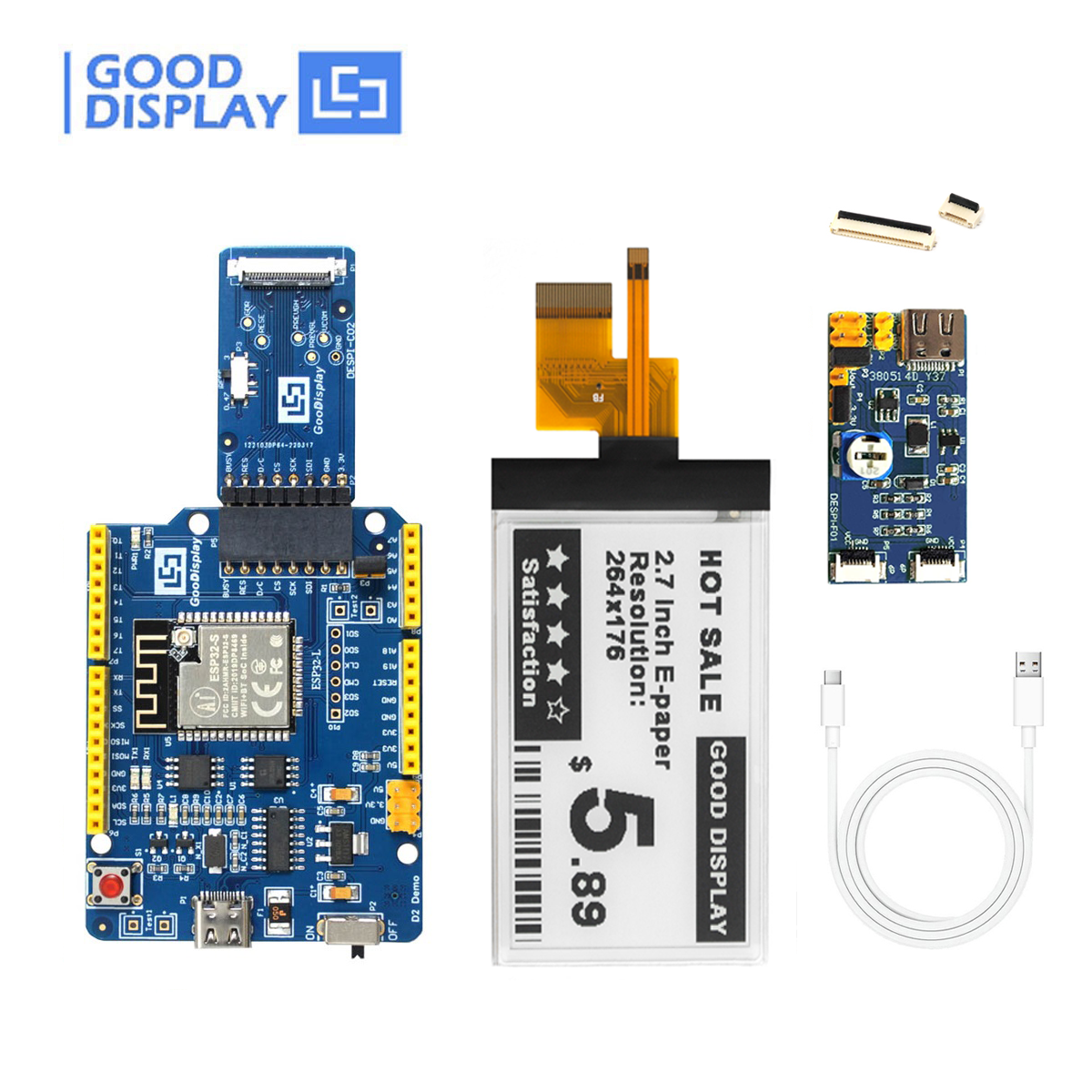

Package E | + | + | + | ||||
a. 2.7 inch e-ink touch screen SPI interface China 4 Grayscale e-ink screen manufacturer with front light, GDEY027T91-FL02 * 2pcs | b. FPC Connector * 4pcs | c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02)* 1pc | d. USB Cable* 1pc |
PART NUMBER |
GDEY027T91-FL02 |
||
TYPE |
Dot Matrix |
CONNECTOR | 24 Pin FPC |
SIZE |
2.7 inch |
MAX GRAYSCALE | 4 |
IC |
EK79652 | COLOR | Black,White |
RESOLUTION |
264x176 |
INTERFACE | SPI |
OUTLINE SIZE(mm) |
70.42x45.8x2.05 |
FULL REFRESH(s) | 3 |
ACTIVE SIZE(mm) |
57.288x37.192 |
FAST REFRESH(s) | 1.5 |
PIXEL PITCH(mm) |
0.217x0.217 |
PARTIAL REFRESH TIME(s) | 0.3 |
OPERATING TEMP. |
0℃~50℃ |
POWER CONSUMPTION OF THE REFRESH(mW) | 9 |
STORAGE TEMP. |
-25℃~70℃ |
STANDBY POWER CONSUMPTION (mW) | 0.003 |
OPERATING VOLTAGE(V) |
3.3 |
TOUCH SCREEN INTERFACE |
IIC |
TOUCH SCREEN CURRENT(mA) |
5 |
● Support 4 Grayscale
● Support 3s fast refresh
● With capacitive touch screen
● Versatile. Use in portrait or landscape format
● It supports partial refresh, the refresh rate is 0.3s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
☆ MATCHED DEVELOPMENT KIT
☆ RELATED INFORMATION DOWNLOAD
● GDEY027T91-FL02_Specification
Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
PART NUMBER | SIZE | COLOR | GREY SCALE | RESOLUTION | ACTIVE SIZE(mm) | FULL REFRESH TIME (S) | OPERATING TEMP. | PARTIAL REFRESH | FLEXIBLE | INTERFACE |
GDEW0102T4 | 1.02'' | BW | 2 | 128x80 | 21.76x14 | 3 | 0℃~50℃ | √ | SPI | |
GDEW0102I3F | 1.02'' | BW | 2 | 128x80 | 21.76x14 | 3 | 0℃~50℃ | √ | √ | SPI |
GDEW0154M10 | 1.54'' | BW | 2 | 152x152 | 27.512x27.512 | 3 | -20℃~60℃ | SPI | ||
GDEH0154D67 | 1.54'' | BW | 4 | 200x200 | 27x27 | 2 | 0℃~50℃ | √ | SPI | |
GDEW0154M09 | 1.54'' | BW | 2 | 200x200 | 27.6x27.6 | 0.82 | 0℃~50℃ | √ | SPI | |
GDEW0154T8D | 1.54'' | BW | 4 | 152x152 | 27.51x27.51 | 3 | 0℃~50℃ | √ | SPI | |
GDEH0154Z90 | 1.54'' | BWR | 2 | 200x200 | 27x27 | 15 | 0℃~40℃ | SPI | ||
GDEW0213M21 | 2.13'' | BW | 2 | 212x104 | 48.548x23.712 | 3 | -20℃~60℃ | SPI | ||
GDEW0213I5FD | 2.13'' | BW | 4 | 212x104 | 48.55x23.71 | 3 | 0℃~50℃ | √ | √ | SPI |
GDEM0213B74 | 2.13'' | BW | 4 | 250x122 | 48.55x23.7 | 3 | 0℃~50℃ | SPI | ||
GDEM0213U23 | 2.13'' | BWR | 2 | 250x122 | 23.67x48.50 | - | 0℃~25℃ | SPI | ||
GDEM0213D23 | 2.13'' | BW | 2 | 250x122 | 23.67x48.50 | - | 0℃~25℃ | SPI | ||
GDEW0213V7LT | 2.13'' | BW | 2 | 212x104 | 48.55x23.71 | 3 | -25℃~10℃ | √ | SPI | |
GDEY0213Z98 | 2.13'' | BWR | 2 | 250x122 | 48.55x23.7046 | 14 | 0℃~40℃ | SPI | ||
GDEW0213T5D | 2.13'' | BW | 4 | 212x104 | 48.55x23.71 | 3 | 0℃~50℃ | √ | SPI | |
GDEW0213T5D-FL01(With Frontlight) | 2.13'' | BW | 4 | 212x104 | 48.55x23.71 | 3 | 0℃~50℃ | √ | SPI | |
GDEW026T0D | 2.6'' | BW | 4 | 296x152 | 60.09x30.7 | 3 | 0℃~50℃ | √ | SPI | |
GDEW027W3 | 2.7'' | BW | 4 | 264x176 | 57.288x38.192 | 3 | 0℃~50℃ | √ | SPI | |
GDEW027W3-T(With Touch Panel) | 2.7'' | BW | 4 | 264x176 | 57.288x38.192 | 3 | 0℃~50℃ | √ | SPI | |
GDEM029E97 | 2.9'' | BW | 2 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | SPI | ||
GDEH029Z13 | 2.9'' | BWR | 2 | 296x128 | 66.9x29.06 | 15 | 0℃~40℃ | SPI | ||
GDEM029T94 | 2.9'' | BW | 4 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | √ | SPI | |
GDEY029T94 | 2.9'' | BW | 4 | 296x128 | 66.896x29.056 | 3 | 0℃~50℃ | √ | SPI | |
GDEW029M06 | 2.9'' | BW | 2 | 296x128 | 66.896x29.056 | 3 | -20℃~60℃ | SPI | ||
GDEW029I6FD | 2.9'' | BW | 4 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | √ | √ | SPI |
GDEW029T5D | 2.9'' | BW | 4 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | √ | SPI | |
GDEW029T5D-FL02(With Frontlight) | 2.9'' | BW | 4 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | √ | SPI | |
GDEH037Z01 | 3.71'' | BWR | 2 | 416x240 | 81.54x47.04 | 16 | 0℃~40℃ | SPI | ||
GDEW0371W7 | 3.71'' | BW | 2 | 416x240 | 81.536x47.04 | 4 | 0℃~50℃ | SPI |
PART NUMBER | SIZE | COLOR | GREY SCALE | RESOLUTION | ACTIVE SIZE(mm) | FULL REFRESH TIME (S) | OPERATING TEMP. | PARTIAL REFRESH | FLEXIBLE | INTERFACE |
GDEW042C37 | 4.2'' | BWY | 2 | 400x300 | 84.8x63.6 | 28 | 0℃~40℃ | SPI | ||
GDEW042T2 | 4.2'' | BW | 4 | 400x300 | 84.8x63.6 | 3 | 0℃~50℃ | SPI | ||
GDEY042T91 | 4.2'' | BW | 2 | 400x300 | 84.8x63.6 | 3 | 0℃~50℃ | SPI | ||
GDEQ042Z21 | 4.2'' | BWR | 2 | 400x300 | 84.8x63.6 | 19 | 0℃~40℃ | SPI | ||
GDEY0579T93 | 5.79'' | BW | 2 | 792x272 | 139.00×47.74 | 3 | 0℃~50℃ | SPI | ||
GDEY0579Z93 | 5.79'' | BWR | 2 | 792x272 | 139.00×47.74 | 20 | 0℃~40℃ | SPI | ||
GDEW0583C64 | 5.83'' | BWY | 2 | 600x448 | 118.80x88.26 | 25 | 0℃~40℃ | SPI | ||
GDEY0583T8 | 5.83'' | BW | 2 | 648x480 | 118.78x88.22 | 3 | 0℃~50℃ | SPI | ||
GDEW0583Z83 | 5.83'' | BWR | 2 | 648x480 | 119.232x88.32 | 12 | 0℃~40℃ | SPI | ||
GDEY075T7 | 7.5'' | BW | 4 | 800x480 | 163.2x97.72 | 3 | 0℃~50℃ | √ | SPI | |
GDEY075Z08 | 7.5'' | BWR | 2 | 800x480 | 163.2x97.72 | 12 | 0℃~40℃ | SPI | ||
GDEP097TC2 |
9.7'' |
BW |
16 |
1200x825 |
202.8x139.425 |
1 |
0℃~50℃ |
√ |
|
Parallel |
GDEQ102T90 | 10.2'' | BW | 2 | 960x640 | 215.52x143.68 | 4 | 0℃~50℃ | SPI | ||
GDEQ102Z90 | 10.2'' | BWR | 2 | 960x640 | 215.52x143.68 | 4 | 0℃~50℃ | SPI | ||
GDEH116T91 | 11.6'' | BW | 2 | 960x640 | 244.512x163.008 | 5 | 0℃~50℃ | SPI | ||
GDEH116Z91 | 11.6'' | BWR | 2 | 960x640 | 244.512x163.008 | 30 | 0℃~35℃ | SPI | ||
GDEY1248Z51 | 12.48'' | BWR | 2 | 1304x984 | 252.98x190.90 | 25 | 0℃~40℃ | SPI | ||
GDEP133UT3 | 13.3'' | BW | 16 | 1600x1200 | 270.4x202.8 | 1 | -15℃~65℃ | Parallel |
