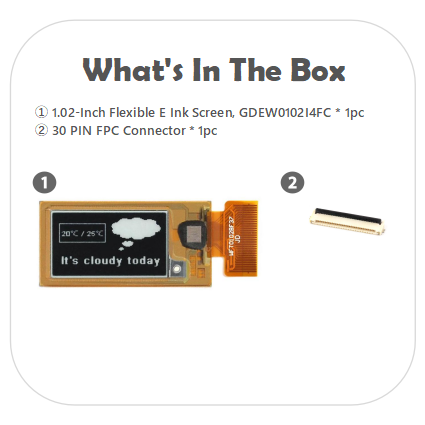

Name: Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
Brand: GOOD DISPLAY
SKU: GDEW0102I4FC
Price: 3.20 USD
Availability: InStock
Rating: 5 (5 reviews)

Description

		1.02 inch Mini flexible e-paper display ACF Thermal Compression

		Ultra-low power, never lose your display! This 1.02-inch flexible E-ink screen, with a 128x80 resolution and partial refresh capability, retains images even without power. Perfect for solar or battery-powered devices, featuring innovative ACF thermal compression bonding for easy integration and long-lasting, clear display!

	Special Features
	● Ultra-thin & Space-saving: ACF (Anisotropic Conductive Film) technology reduces thickness, ideal for space-constrained applications. ● Flexible & Durable: Can be bent and shaped, perfect for wearables and curved surfaces. ● Low Power Consumption: Consumes power only during refresh and retains images without power, ideal for battery-operated devices. ● Wide Viewing Angle: Over 170° viewing angle for clear visibility from almost any direction. ● Fast Refresh Rates: Full refresh in 3s and partial refresh in 0.3s, ensuring quick updates. Short ● Lead Time: Fast production and delivery, ideal for quick turnaround projects.

	Technical Details

Product Specifications
PART NUMBER	GDEW0102I4FC	CONNECTOR	30 PIN FPC
SIZE	1.02 inch	COLOR	Black, White
TYPE	Dot Matrix	MAX GRAYSCALE	2
IC	UC8175	FULL UPDATE TIME(s)	3
PPI	147.98	PARTIAL UPDATE TIME(s)	0.3
RESOLUTION	128x80	TYPICAL POWER(mW)	26.4
OUTLINE SIZE(mm)	32.57x18.6x0.3	DEEP SLEEP POWER(mW)	0.0165
ACTIVE SIZE(mm)	21.76x14	OPERATING TEMP.	0℃~50℃
PIXEL PITCH(mm)	0.175x0.17	STORAGE TEMP.	-25℃~70℃

Matching Driver Boards

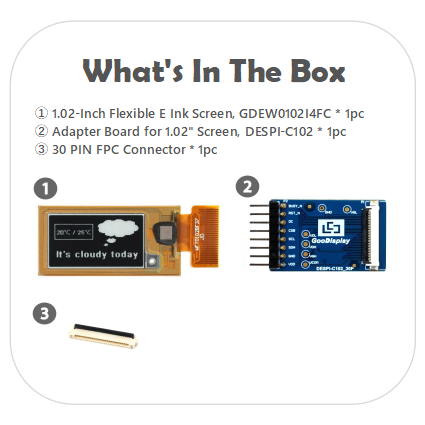

Ⅰ. DESPI-C102
(E-ink Display adapter Board)

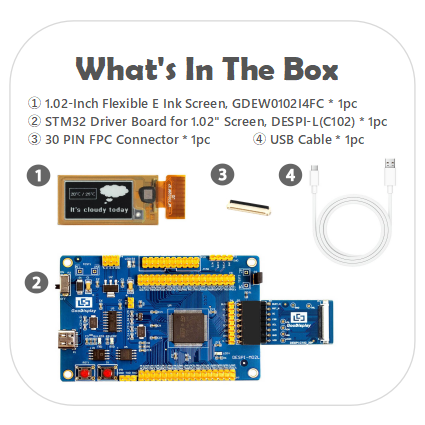

Ⅱ. DESPI-L(C102)
(STM32 Platform Demo Kit)

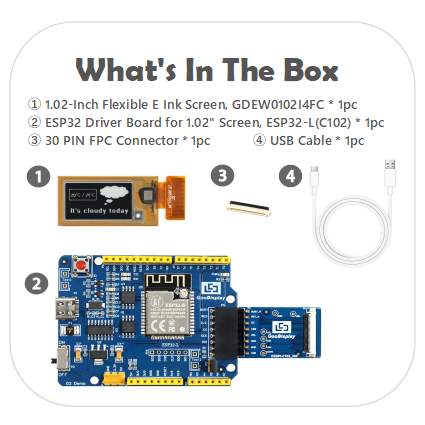

Ⅲ. ESP32-L(C102)
(ESP32 Platform Demo Kit)

	Files And Download
	● GDEW0102I4FC_Specification	● payment agreement
	● IC Driver UC8175	● Company Profile
	● GDEW0102I4FC_ESP32 Sample Code	● The Latest Catalog of ePaper Display
	● GDEW0102I4FC STM32 Sample Code	● Why can't I download the files(updated)?
	● GDEW0102I4FC_ESP8266 Sample Code	● ePaper Display Usage Guidelines
	● GDEW0102I4FC_Arduino Sample Code

Product Application

Wearable devices	Smart home applications	Industrial Applications	Smart card
