Name: 11.6 Inch E Ink Display Four Color E Paper Screen High Resolution 960x640
Brand: GOOD DISPLAY
SKU: GDEY116F51
Price: 139.40 USD
Availability: InStock
Rating: 5 (4 reviews)

Description

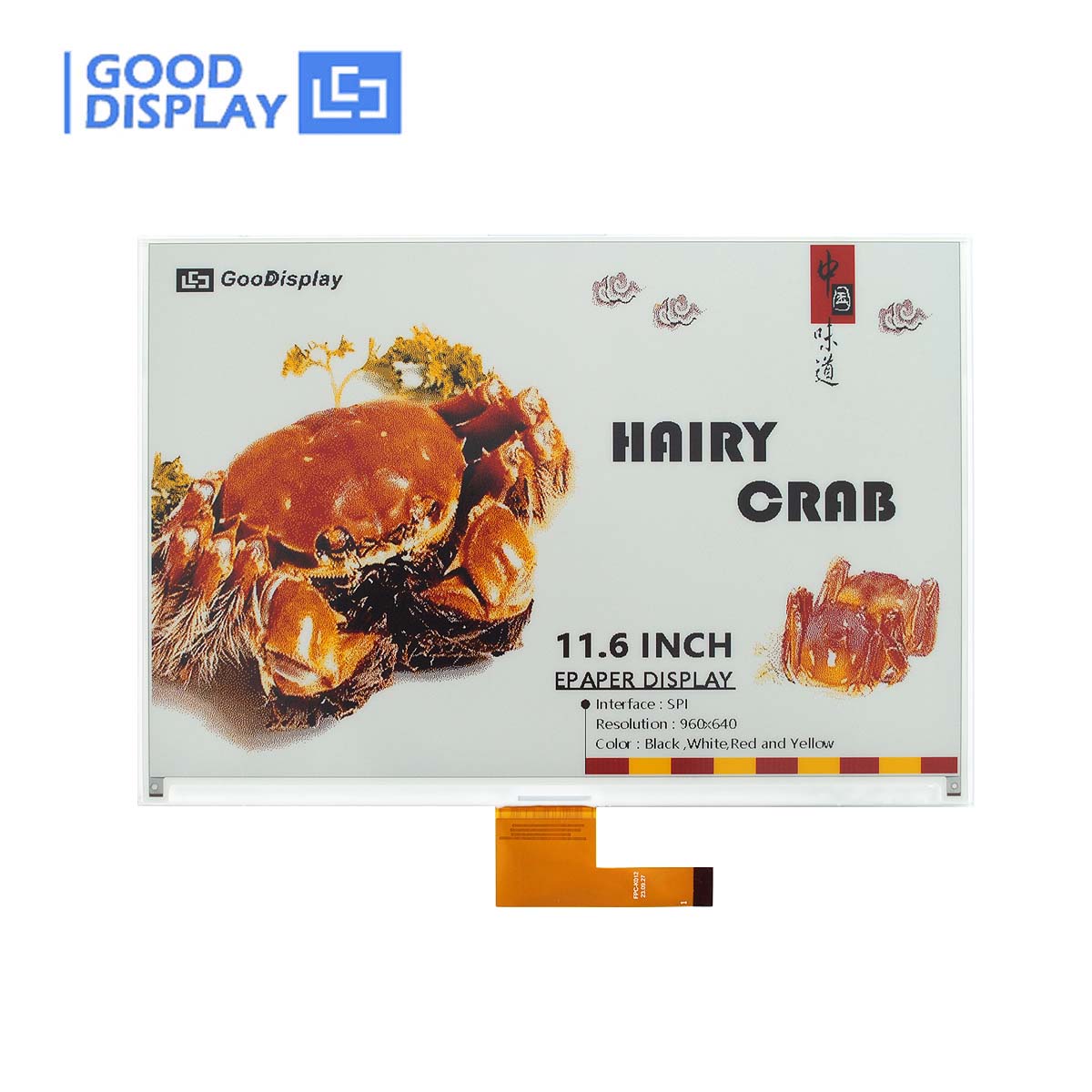

		11.6 inch E Ink display four color E Paper screen 960x640
		The GDEY116F51 is an 11.6-inch e-paper display with a 960x640 resolution and an SPI interface. This highly functional display retains images even when powered off, making it perfect for low-power applications like electronic shelf labels. Once the image is uploaded, no continuous power supply is needed, and the display content remains unchanged even if disconnected. Key features include a full refresh time of 20s and support for both horizontal and vertical orientations. It operates at 3.3V and within a temperature range of 0-40°C. The display supports four colors: black, white, red, and yellow, and uses the SSD2677 driver IC. Ideal for smart home applications, industrial instruments, electronic display boards, electronic posters, electronic tags, and conference doorplates, the GDEY116F51 stands out for its efficiency and performance.

Our product boasts distinctive features that set it apart from the competition

●  High Resolution Clarity: Experience crystal-clear visuals with a 960x640 resolution, perfect for detailed images and text. See every detail come to life!
●  Vibrant Four-Color Display: Stand out with four vibrant colors—black, white, red, and yellow. Add a splash of color to your displays!
●  Power-Efficient Image Retention: Keep your content visible even when powered off. Upload once, and enjoy lasting visibility without continuous power. Efficiency at its best!
●  Quick Refresh Time: Update your display in just 20 seconds. Fast, efficient, and perfect for dynamic content needs!
●  Versatile Application Flexibility: Ideal for smart homes, industrial instruments, electronic posters, and more. One display, endless possibilities!

		Technical Details
		Please refer to the product drawings for detailed dimensions

Every day is Earth Day

You don't need to be an environmental scientist to make sustainable choices.
At Good Display, we passionately integrate sustainability into the production of e-paper.

Substitute for Paper Usage

Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.

Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.

Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.

Please refer to the product specifications for more details

PART NUMBER	GDEY116F51	CONNECTOR	24 Pin 0.5mm
SIZE	11.6 inch	TYPE	Dot Matrix
IC	SSD2677	COLOR	Black, White, Red and Yellow
RESOLUTION	960x640	INTERFACE	SPI
OUTLINE SIZE(mm)	254.31×167.35 ×1.0	MAX GRAYSCALE	2
ACTIVE SIZE(mm)	244.51×163.01	FULL UPDATE TIME(s)	20
PIXEL PITCH(mm)	0.2547x0.2547	TYPICAL POWER(mW)	90
OPERATING TEMP.	0℃~40℃	DEEP SLEEP POWER(mW)	0.003
STORAGE TEMP.	-25℃~70℃

Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

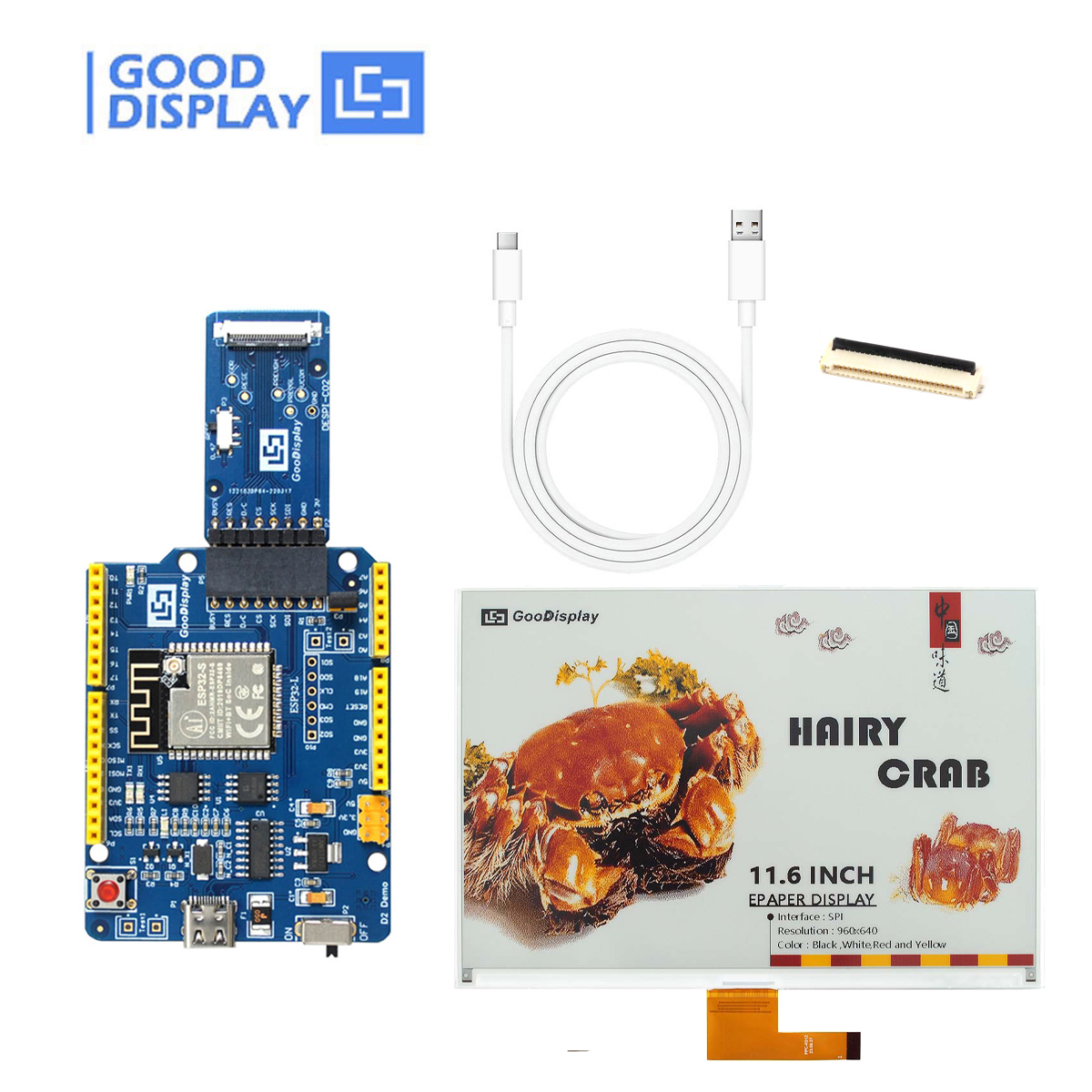

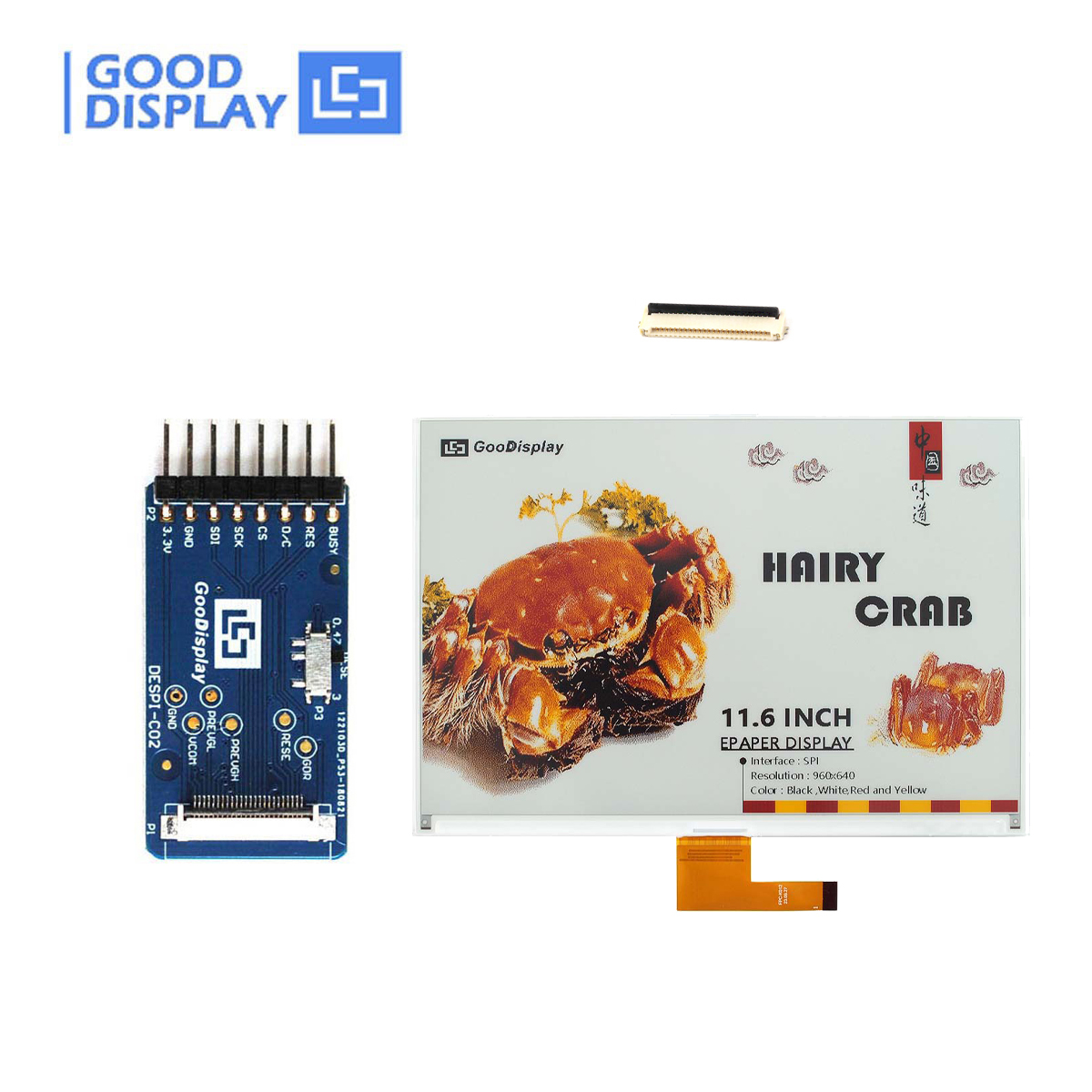

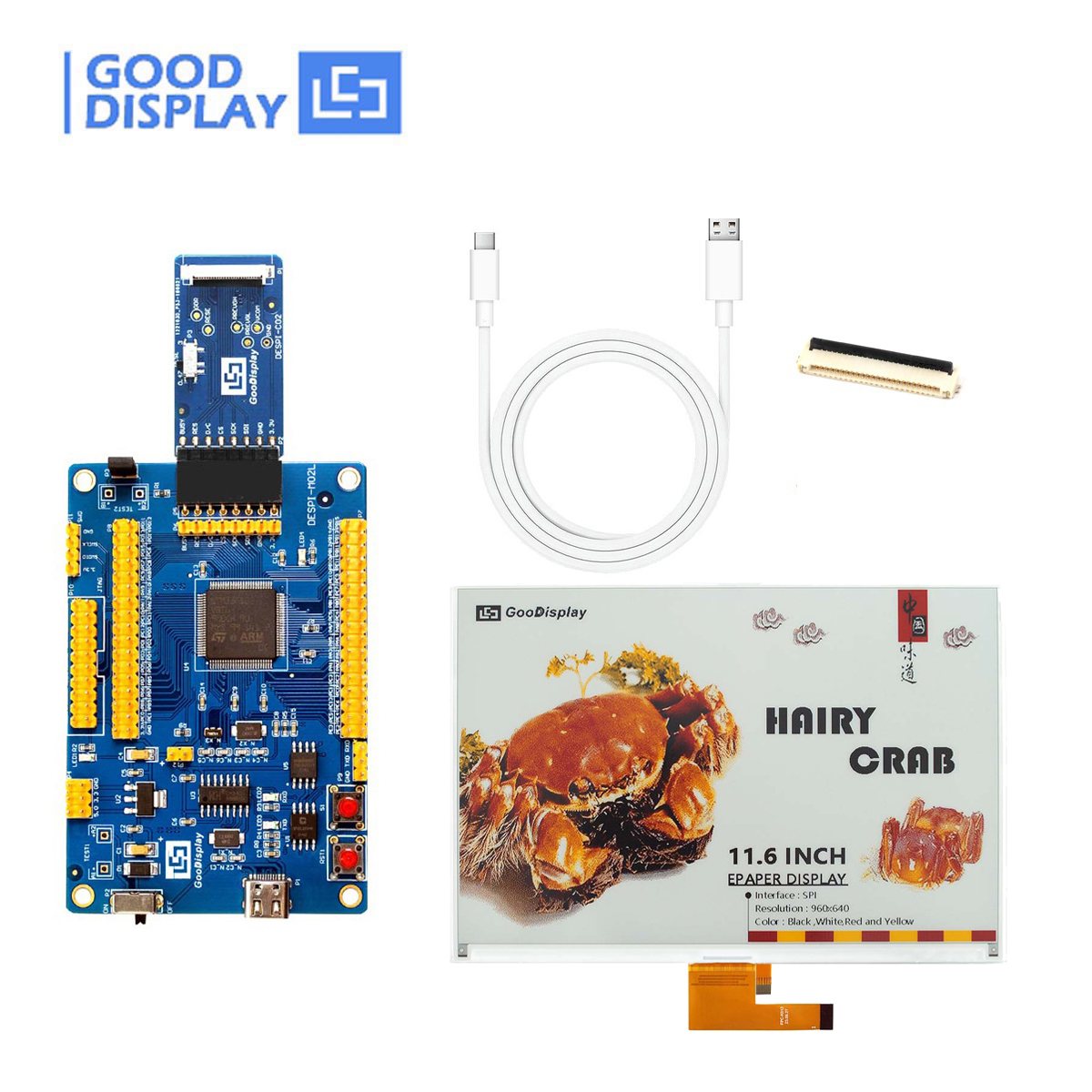

a.DESPI-C02 (E-ink Display adapter Board)	b.DESPI-L(C02) (STM32 Demo Kit)	c.ESP8266-L(C02) (ESP8266 Demo Kit)	d.ESP32-L(C02) (ESP32 Demo Kit)

Related Information Download Click on the subheadings below to download

	● GDEY116F51 Specification	● GDEY116F51 ESP8266 Sample Code
	● IC Driver SSD2677	● GDEY116F51 ESP32 Sample Code
	● Image2LCD Software Bitmap Conversion Instructions V1.0	● The latest Catalog of ePaper display
	● GDEY116F51 STM32 Sample Code	● Why can't I download the files(updated)?
