Name: 1.54-inch Flexible E Ink Display 0.3s Partial Refresh 200x200 ePaper Displays Module
Brand: GOOD DISPLAY
SKU: GDEY0154D67
Price: 9.68 USD
Availability: InStock

Description

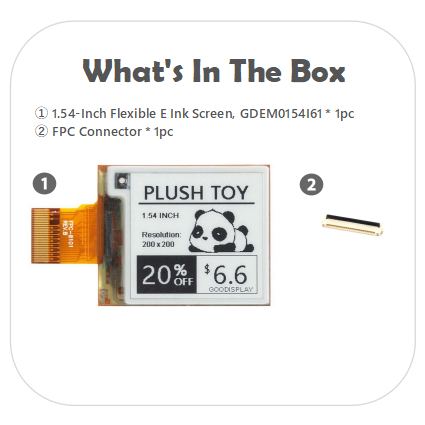

		1.54 Inch Flexible Ink Screen Module e-Paper Panel SPI Interface Black White Display

		Introducing the 1.54-inch flexible electronic ink screen—lightweight and thin, it bends without breaking, making it perfect for innovative designs. Enjoy unmatched durability and low power consumption, refreshing only when needed. With wide viewing angles, this screen retains your last display even when powered off, ensuring clarity at all times. Ideal for industrial instruments and smart wearables, it adapts seamlessly to curved surfaces, bringing your vision to life. Elevate your technology with the future of flexible displays!

Our product boasts distinctive features that set it apart from the competition

●  Flexible and Compact: Perfectly sized at 1.54 inches, this display can easily fit into various devices, ensuring seamless integration into your projects.
●  Rapid Refresh Rates: Enjoy multiple refresh options, including full refresh in just 3 seconds, partial refresh in 0.3 seconds, and fast refresh in 1.5 seconds for dynamic content updates.
●  Bistable Display Technology: This innovative display retains its image even when the power is off, significantly reducing energy consumption and enhancing device longevity.
●  Wide Viewing Angles: Experience outstanding visibility with a viewing angle exceeding 170 degrees, allowing for clear content display from various positions.
●  Eye-Friendly & Eco-Conscious: With no blue light emission and zero radiation, this display not only protects your eyes but also conserves energy by consuming power only during refresh cycles.

		Technical Details
		Please refer to the product drawings for detailed dimensions

Please refer to the product specifications for more details

PART NUMBER	GDEM0154I61	CONNECTOR	24 Pin 0.5mm
TYPE	Dot Matrix	MAX GRAYSCALE	4
SIZE	1.54 inch	COLOR	Black, White
IC	SSD1681	INTERFACE	SPI
RESOLUTION	200x200	FULL UPDATE(s)	3
PPI	183.66	PARTIAL UPDATE(s)	0.3
OUTLINE SIZE(mm)	37.32x31.8x0.44	FAST UPDATE(s)	1.5
ACTIVE SIZE(mm)	27x27	POWER CONSUMPTION OF THE REFRESH(mW)	6
PIXEL PITCH(mm)	0.135x0.135	STANDBY POWER CONSUMPTION (mW)	0.003
OPERATING TEMP.	0℃~50℃	GRAYSCALE	4
STORAGE TEMP.	-25℃~70℃

Files and Download Click on the subheadings below to download

	● GDEM0154I61_Specification	● GDEM0154I61 ESP8266 Sample Code
	● IC Driver SSD1681	● GDEM0154I61 ESP32 Sample Code
	● Image2LCD Software Bitmap Conversion Instructions V1.0	● The latest Catalog of ePaper display
	● GDEM0154I61_STM32 Sample Code	● Why can't I download the files(updated)?
	● GDEM0154I61 Arduino Sample Code	● Product Catalog

WE ALSO SUGGEST
Click the image below to learn more about our products


1.54 inch electronic paper display Customizable 1.5s fast refresh partial refresh digital price tags screen, GDEY0154D67	1.54 inch E-paper Display 200x200 Resolution Partial Screen Update Touch Eink Display, GDEY0154D67-T03	1.54 inch small e-ink display with frontlight 4 Grayscale display panel, GDEY0154D67-FL04	1.54 inch electronic paper display Customizable 1.5s fast refresh partial refresh digital price tags screen, GDEY0154D67-FT01

Epaper-display Thin 1.54inch epaper Electronic Shelf Label E Ink Panel, GDEM0154Z91	1.54 inch e-paper display high resolution 200x200 partial refresh fast speed GDEW0154M09	1.54 inch E-paper four color yellow and red Eink High Resolution 200x200, GDEM0154F51H	1.22 inch high-frequency update E Ink screen with 2s fast refresh 176x192, GDEM0122T61

Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].

Reviews Write a review

Product reviews can be carried out after the member login, please click here to login

Matching Driver Board

To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

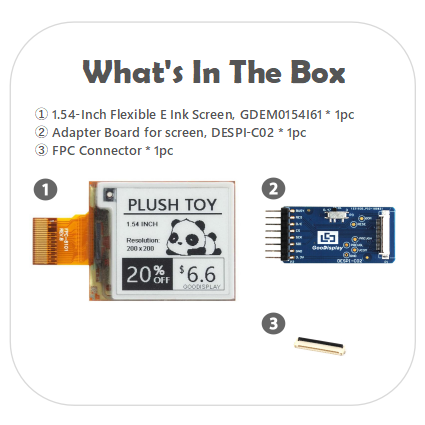

a. DESPI-C02 (E-ink Display adapter Board)

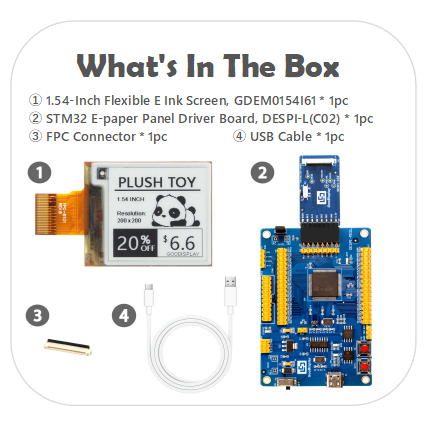

b. DESPI-L(C02) (STM32 Demo Kit)

c. DEArduino-L(C02) (Arduino Platform Demo Kit)

d. ESP8266-L(C02) (ESP8266 Demo Kit)

e. ESP32-L(C02) (ESP32 Demo Kit)

f. ESP32E6-E01 (24Pin SPI ePaper Display Demo Kit)
