Description

1.54" Flexible Color E-Ink Display

Engineered for innovators seeking breakthrough form factors, this is the GooDisplay’s first flexible color E Ink screen. Bend it. Twist it. Embed it in curved wearables, ergonomic medical sensors, or unbreakable retail tags — all while delivering vibrant, indoor readable color with zero power draw when static.

✔️ 200x200 High Resolution
✔️ 188 DPI
✔️ Black, White, Red, Yellow
✔️ Ultra-Low Power Consumption

Core Advantages

Flexibility & Durability

• Ultra-thin 0.5mm flexible design reduces damage from drops and stress.
• Bendable for innovative form factors
• 40% less damage from impacts
• Perfect for wearables and curved surfaces

Quad-Color Display

• Vivid Black, White, Red & Yellow for enhanced visual communication.
• High-contrast information hierarchy
• Paper-like readability in any light
• Perfect for alerts and status indicators

Ultra-Low Power

• Bistable technology with zero power consumption when static.
• 0.009mW standby consumption
• 10x longer life vs LCD
• Years of operation on single charge

Technical Specifications

Part Number GDEM0154I51F

Color Black, White, Red, Yellow

IC IST7160CA2

Size 1.54"

Type Dot Matrix

Operating Temp. 0℃~40℃

Resolution 200x200

DPI 188

Storage Temp. -25℃~70℃

Outline Size(mm) 37.32x31.8x0.5

Full Refresh(s) 20

Power Consumption Of The Refresh(mW) 9

Active Size(mm) 27x27

Connector 24pin FPC

Standby Power Consumption (mW) 0.009

Pixel Pitch(mm) 0.135x0.135

Interface SPI

Drawing Details

Matching Driver Boards

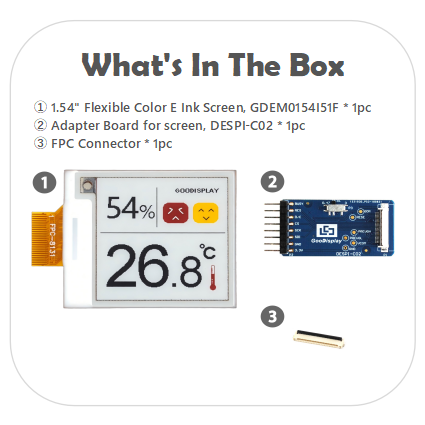

DESPI-C02

Pure interface adapter (no MCU) for connecting external boards to 24-pin SPI EPDs.

View Details

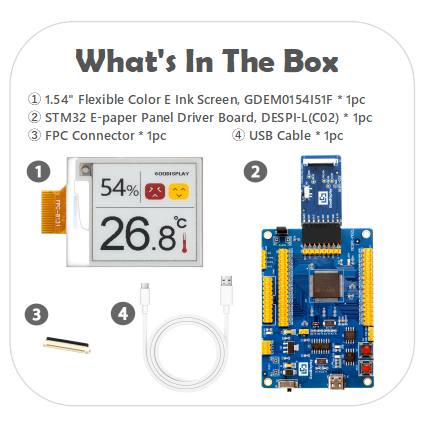

DESPI-L(C02)

Top-tier industrial processing power (Cortex-M), featuring USB data transmission.

View Details

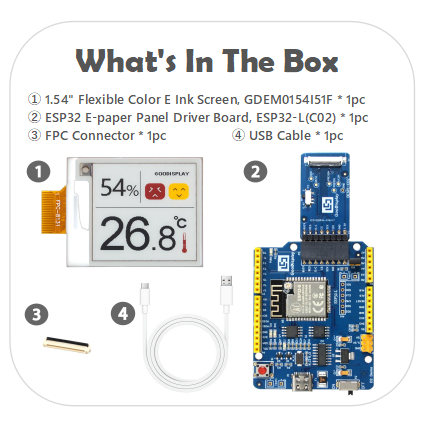

ESP32-L(C02)

Supports common WiFi/BT/USB data transmission.

View Details

ESP32E6-E01

Dedicated 50-pin port for E6 displays + standard 24-pin port.Top-tier ESP32-S3 performance with WiFi/BT/USB.

View Details

Files & Download

[PDF] GDEM0154I51F_Specification

[PDF] The Latest Catalog

[FAQ] Why can't I download the files?

Typical Applications

Wearables

Health Monitoring Patches

Manufactured into flexible patches that adhere to the skin, displaying real-time health data such as heart rate and body temperature. Four-color display distinguishes data statuses, combined with low-power design to maintain days of monitoring on a single charge.

Industrial

Intelligent Retail Price Tags

Replacing traditional paper price tags, supporting remote batch updates of prices and promotional information. Four-color display highlights high-margin products or limited-time discounts to attract customer attention.

Office

Smart Business Cards and Certificates

Manufactured into bendable electronic business cards, refreshing contact information or company promotional videos via NFC wireless technology. The metal frame design balances texture and durability, ideal for business scenarios.

We Also Recommend

Sustainable Technology

Paperless Future

Each display saves ≈3,000 sheets annually. Join 15,000+ businesses reducing paper waste with ePaper solutions.

Sustainable Packaging

95% recycled materials with FSC-certified packaging. 100% plastic-free protective materials.

Energy Leadership

90% less energy than LCDs. Annual CO₂ reduction equivalent to 50 mature trees.

About Us

Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at www.good-display.com.
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at buyepaper@good-display.com.
