Name: 0.97 Inch Mini E-Paper Display Red E-Ink Screen with 18-Pin Connector Partial Update Capable
Brand: GOOD DISPLAY
SKU: GDEM0097Z61
Price: 3.50 USD
Availability: InStock
Rating: 5 (3 reviews)

Description

		Mini 0.97 inch Red E Paper Screen 0.26s Partial Update

		Compact, energy-efficient, and eye-friendly – the 0.97-inch tri-color e-paper display with 184x88 resolution. Supports partial black-and-white updates and full red updates. Powered by the SSD1680 driver IC, 18-pin SPI interface, and 3.3V operation. Retains content even when powered off. No blue light, zero radiation – perfect for your DIY electronics projects!

	Special Features
	● Ultra-Thin & Lightweight: At just 0.97 inches and 1.1g, this e-ink screen is perfect for portable devices without adding bulk. ● 3-Color Display: Black, white, and red for vibrant, versatile content. ● Fast & Clear: 184x88 resolution with quick 0.26-second partial updates – ideal for dynamic info. ● Energy Efficient: Bistable display retains content even when powered off, saving energy. ● Eye-Friendly: No blue light or radiation, offering a comfortable viewing experience. Wide ● Viewing Angle: Over 170° view with anti-glare coating for clear, bright visuals.

	Technical Details

Product Specifications
PART NUMBER	GDEM0097Z61	CONNECTOR	18 PIN FPC
SIZE	0.97 inch	COLOR	Black, White, Red
TYPE	Dot Matrix	MAX GRAYSCALE	2
IC	SSD1680	FULL UPDATE TIME(s)	20
PPI	210.27	PARTIAL UPDATE TIME(s)	0.26
RESOLUTION	184x88	TYPICAL POWER(mW)	9
OUTLINE SIZE(mm)	30.0x14.15x1.0	OPERATING TEMP.	0℃~40℃
ACTIVE SIZE(mm)	22.264x10.648	STORAGE TEMP.	-25℃~70℃
PIXEL PITCH(mm)	0.121x0.121	INTERFACE	SPI

Matching Driver Boards

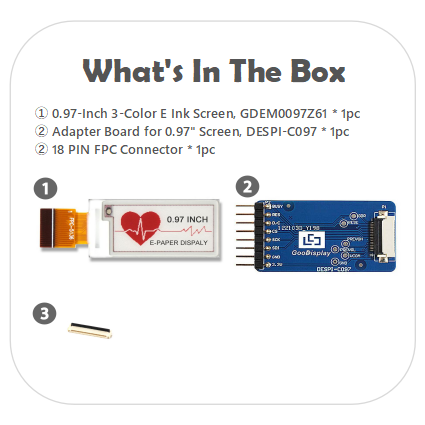

Ⅰ. DESPI-C097
(E-ink Display adapter Board)

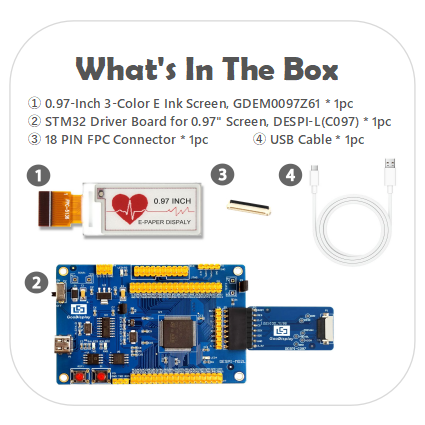

Ⅱ. DESPI-L(C097)
(STM32 Platform Demo Kit)

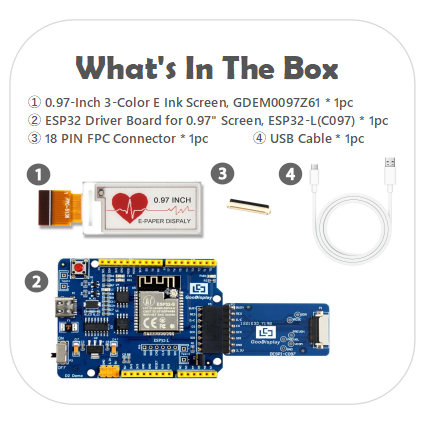

Ⅲ. ESP32-L(C097)
(ESP32 Platform Demo Kit)

	Files And Download
	● GDEM0097Z61_Specification	● GDEM0097Z61_Arduino Sample Code
	● IC Driver SSD1680	● GDEM0097T61_ESP8266 Sample Code
	● GDEM0097Z61 STM32 Sample Code	● The Latest Catalog of ePaper Display
	● GDEM0097Z61_ESP32 Sample Code	● Why can't I download the files(updated)?
	● Picture Production and Bitmap Convert for GDEM0097Z61	● ePaper Display Usage Guidelines

Product Application

Smart home application	Industrial instrument	Smart tag	Shelf tag
