Name: 0.97-Inch E Ink Display Versatile Black,White,Yellow&Red Options for Modern Tech Solutions 18PIN
Brand: GOOD DISPLAY
SKU: GDEM075F51
Price: 4.90 USD
Availability: InStock
Rating: 5 (2 reviews)

Description

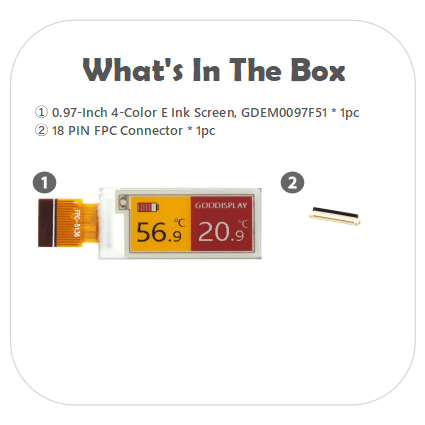

		0.97-inch Mini Black, White, Yellow and Red E Ink Display

		This is a 0.97 small e-ink display, 184x88 resolution, SPI interface, and the display is capable to display images with 4 colors content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEM0097F51 is perfect for low power devices powered by solar or batteries, such as smart tags, wearable devices, smart home applications, industrial instruments, and smart cards.

Our product boasts distinctive features that set it apart from the competition

● Ultra-thin and lightweight: The ultra-small 0.97-inch e-ink screen is extremely thin and weighs only 1.1g, making it suitable for use in portable devices without adding significant weight or thickness.
● Four-color Display: Supports black, white, red, and yellow colors.
● Features vibrant colors and the ability to achieve color mixing: This allows for enhanced visual appeal and richer display options, making it suitable for applications that require bright and diverse colors.
●  Resolution: Features a resolution of 184x88 pixels.
●  Viewing angle: Wide viewing angle exceeding 170 degrees.
●  Display feature: Bistable display (retains the current content after a power outage)
●  Energy conservation: No power consumption when not refreshing the screen.

		Technical Details
		Please refer to the product drawings for detailed dimensions

Please refer to the product specifications for more details

PART NUMBER	GDEM0097F51	CONNECTOR	18 Pin FPC
SIZE	0.97 inch	TYPE	Dot Matrix
IC	JD79661	MAX GRAYSCALE	2
RESOLUTION	184x88	COLOR	Black, White, Yellow and Red
OUTLINE SIZE(mm)	30.0x14.15x1.0	INTERFACE	SPI
ACTIVE SIZE(mm)	22.26x10.65	FULL UPDATE TIME(s)	20
PIXEL PITCH(mm)	0.121x0.121	FAST UPDATE TIME(s)	12
OPERATING TEMP.	0℃~40℃	TYPICAL POWER(mW)	9
STORAGE TEMP.	-25℃~70℃	DEEP SLEEP POWER(mW)	0.0012

Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

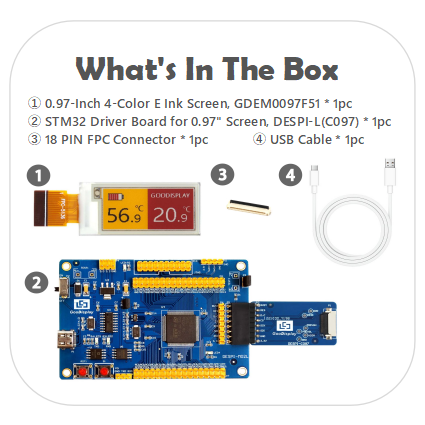

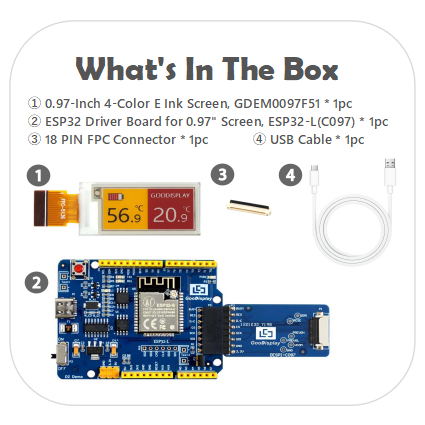

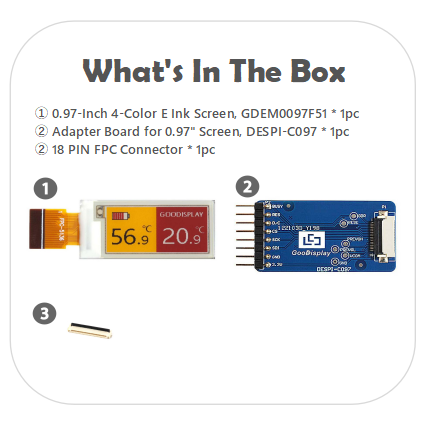

a. DESPI-C097 (E-ink Display adapter Board)	b. DESPI-L(C097) (STM32 Demo Kit)	c. ESP32-L(C097) (ESP32 Demo Kit)

Related Information Download Click on the subheadings below to download

	● GDEM0097F51- Specification	● GDEM0097F51-STM32 Sample Code
	● JD79661 Driver IC Datasheet	● GDEM0097F51-Arduino Sample Code
	● Image2LCD Software Bitmap Conversion Instructions V1.0	● GDEM0097F51-ESP8266 Sample Code
	● GDEM0097F51-ESP32 Sample Code	● The latest Catalog of ePaper display
	● GDEM0097F51-ESP8266 Sample Code	● Disabling-Pop-Up-Blockers

Product Application

Personalized Accessories	Smart Home Tags	Medical and Laboratory Labels	Name Plates and Conference Table Cards	Smart Labels and Electronic Shelf Labels (ESL)
