Name: E Ink Display Development Board Test Kit for 24-pin interface compatible E6 Series E-Paper
Brand: GOOD DISPLAY
SKU: ESP32E6-E01
Price: 23.80 USD
Availability: InStock

Description

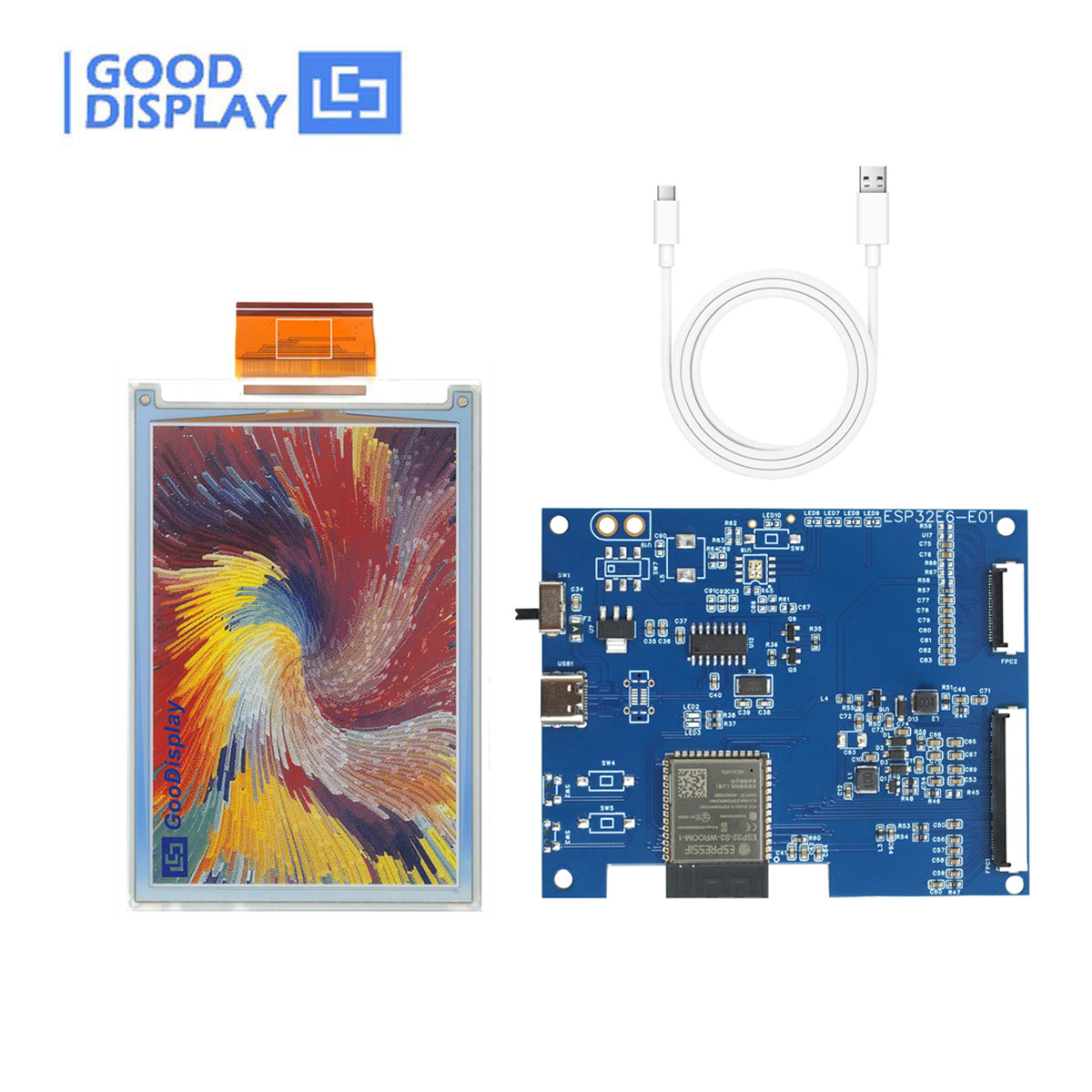

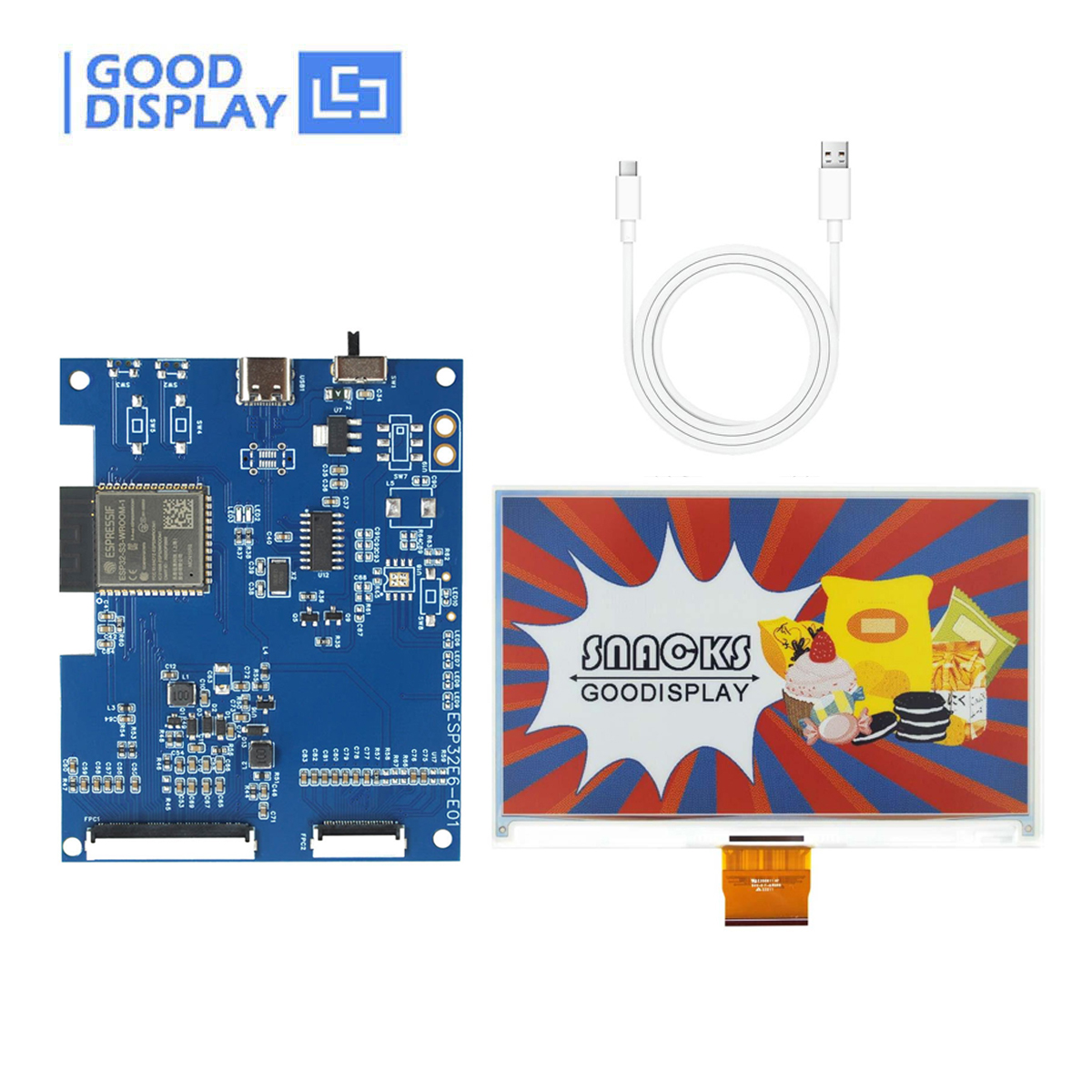

		24-pin Interface E Ink Display Development and Testing Kit
		The ESP32E6-E01 is a development board integrated with USB Serial Communication，Wi-Fi and Bluetooth capabilities, specifically designed for electronic paper display (EPD) applications. Based on the powerful ESP32-S3 series chip, it efficiently handles wireless communication and image updates for EPDs. The board is equipped with two e-paper interfaces: a 24-pin interface compatible with most monochrome, tri-color, and quad-color SPI e-paper displays, and a 50-pin interface suitable for 4-inch and 7.3-inch E Ink Spectra™ 6 series displays.

Our product boasts distinctive features that set it apart from the competition

●  Optimized for EPDs:The ESP32E6-E01 supports the low-power and high-contrast display characteristics of EPDs, enabling fast processing and display updates. It's ideal for applications like electronic shelf labels, digital signage, electronic nameplates, and e-photo frames.
●  Flexible Wireless Communication: Integrated with Wi-Fi and Bluetooth modules, it supports remote image updates and real-time data transmission, providing users with versatile application scenarios.
●  Efficient Image Processing and Display: Powered by the robust ESP32 processor, it can quickly process images and supports dithering and other display optimization algorithms, ensuring a clear display on e-paper screens.

		Technical Details
		Please refer to the product drawings for detailed dimensions

Please refer to the product specifications for more details

PART NUMBER	ESP32E6-E01
PROGRAM PLATFORM	Arduino IDE
APPLICABLE SIZE	4-inch and 7.3-inch E6, 24-pin e-paper displays
OUTLINE SIZE	86.3×69.2×1.63mm
INTERFACE SAMPLE PROGRAM	Type-C Power supply interface
SAMPLE PROGRAM	Able to provide
OPERATING TEMP	-20℃~70℃
THE MAIN FUNCTION	Learning how to drive an e-paper display, testing and evaluating the e-paper display, and conducting secondary development based on this board.
ACCESSIBILITY	USB communication, indicator light, current detection, etc

Related Information Download Click on the subheadings below to download

	● The latest Catalog of ePaper display	● Why can't I download the files?

Driven ePaper Compatibility Guide

1.22" Monochrome GDEM0122T61	1.54" Monochrome GDEY0154D67	1.54" 3-color GDEM0154Z90	1.54" 4-color GDEY0154F51	1.54" 4-color High Resolution GDEY0154F51H

1.54" Wide Temperature GDEM0154D67WT	2.13" Monochrome GDEY0213B74	2.13" 4-color GDEY0213Z98	2.13" 4-color GDEY0213F52	2.66" Monochrome GDEY0266T90

2.66 Inch 3-color GDEY0266Z90	2.66 " 3-color GDEY0266F51	2.66 Inch 4-color High Resolution GDEM0266F51H	2.66" Wide Temperature GDEY0266D91LT	2.7" Monochrome GDEM027Q72

2.7" Monochrome GDEY027T91	2.7" 3-color GDEM027Z71	2.9" Monochrome GDEY029T94	2.9" 3-color GDEY029Z95	2.9 " 4-color GDEY029F51

2.9 " 4-color High Resolution GDEY029F51H	2.9" Wide Temperature GDEY029D57LT	3.5 " 4-color GDEM035F51	3.7" Monochrome GDEY037T03	3.7" 3-color GDEY037Z03

3.5 " 4-color GDEM035F51	4" Full-color GDEP040E01
