Name: GooDisplay Wide Temperature 2.13-inch E-paper -25℃ to 50℃ E-Ink Outdoor Display 250x122 Resolution
Brand: GOOD DISPLAY
SKU: GDEM0213B74WT
Price: 6.36 USD
Availability: InStock

Description

		Ready for Any Weather: The 2.13” E-Paper Display Module That Won’t Let You Down!

		Designed for the toughest conditions, this 2.13" wide-temperature e-paper display module is your go-to solution for outdoor and industrial applications.With a wide operating temperature range, this module keeps displaying crisp, clear black-and-white content no matter the weather. Whether you’re braving the cold or the heat, this e-paper display has got you covered! Tip: If you need to display complex images on this wide-temperature e-paper, please be sure to contact our customer support team for special tuning.

		Special Features
		● Wide Temperature Range: maintains reliable performance in a wide range of temperatures from -25°C to 50°C. ● 4 Levels of Grayscale Support: Delivers sharp contrast and clarity, enhancing the user experience across various applications. ● Compatible with STM32, ESP32, ESP8266, Arduino main boards via SPI interface, backed by detailed documentation and features intuitive user manuals.

	Hot or Cold, Power-Efficient Display Unstoppable

			The 2.13-inch wide-temperature E Ink display is designed for extreme environments, offering stable performance within a temperature range of -25°C to 50°C, ensuring reliable operation in any condition. With its eco-friendly design and low power consumption, it’s the ideal solution for environments where traditional displays fail to perform.

	Technical Details

Product Specifications

PART NUMBER	GDEM0213B74WT	CONNECTOR	24 PIN 0.5mm
SIZE	2.13 inch	OPERATING TEMP.	-25℃~50℃
TYPE	Dot Matrix	STORAGE TEMP.	-25℃~70℃
IC	SSD1680	COLOR	Black, White
RESOLUTION	250x122	Interface	SPI
OUTLINE SIZE(mm)	59.2x29.2x1.0	Typical power(mW)	12.6
ACTIVE SIZE(mm)	48.55x23.705	Deep sleep power(mW)	0.003
PIXEL PITCH(mm)	0.1942x0.1942	Full update time(s)	4

Matching Driver Board

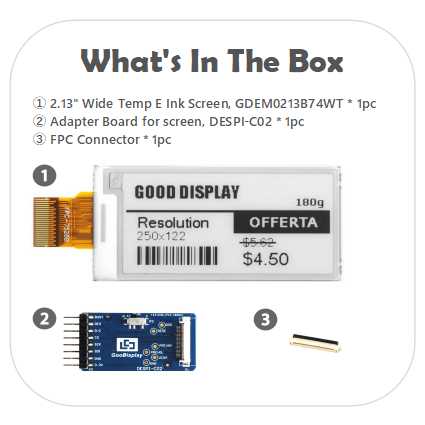

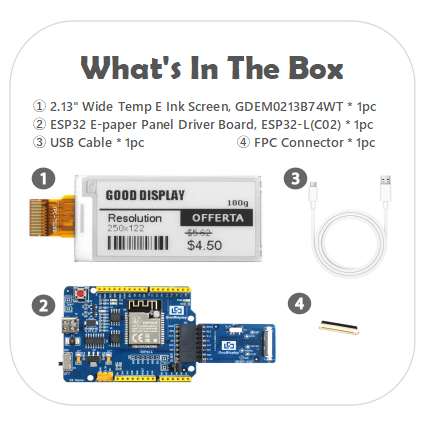

Ⅰ. DESPI-C02 (E-ink Display adapter Board)	Ⅱ. DESPI-L(C02) (STM32 Demo Kit)	Ⅲ. ESP32-L(C02) (ESP32 Demo Kit)

Ⅳ. ESP8266-L(C02) (ESP8266 Demo Kit)	Ⅴ. DEArduino-L(C02) (Arduino Platform Demo Kit)	Ⅵ. ESP32E6-E01 (24Pin SPI ePaper Display Demo Kit)


	Files and Download
	● GDEM0213B74WT_Specification		● The Lastest Catalog
	● Why can't I download the files(updated)?

Product Application

Automotive Dashboard	Medical Equipment	Industrial Applications	Smart Labels for Retail

Every Day is Earth Day
You don't need to be an environmental scientist to make sustainable choices. At GooDisplay, we passionately integrate sustainability into the production of e-paper.

Substitute for Paper Usage Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.	Device Packaging 95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.	Energy Efficiency Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.
