Name: 2.13 inch E-Paper Eink Display SSD1680Z Backlit Electronic Paper Screen
Brand: GOOD DISPLAY
SKU: GDEY0213B74-FL01
Price: 9.85 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

TIP: The front light is not sold separately due to precise bonding requirements. Please purchase the complete bonded product. For temperature details, refer to the display screen specifications.

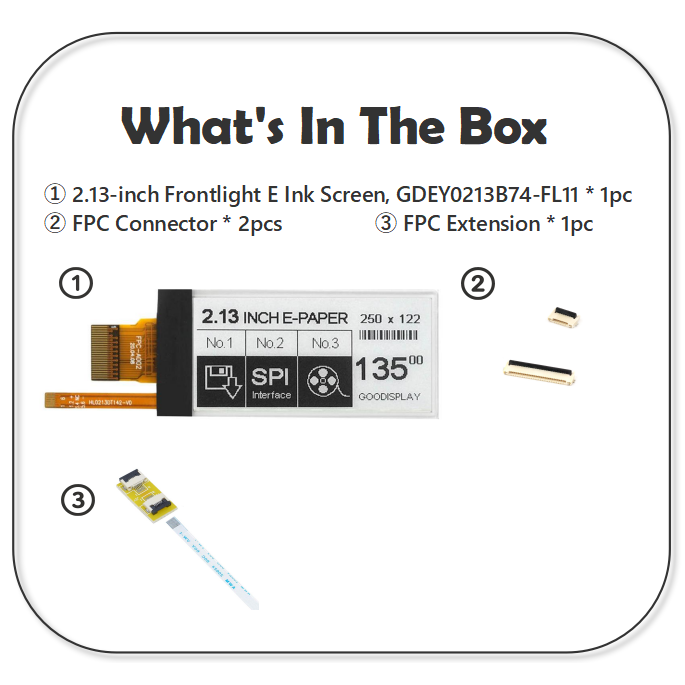

		2.13 Inch E-Ink Display with Front Light, SSD1680Z Controller
		This 2.13-inch e-paper E-Ink display with backlight, model GDEY0213B74-FL11, offers a resolution of 250x122 pixels. With a fast refresh rate of 1.5 seconds, a full refresh in 3 seconds, and partial refresh in just 0.4 seconds, this display provides efficient performance for various applications. It supports black and white image display, maintaining the image indefinitely without power once updated. This makes it ideal for low-power devices such as solar or battery-powered gadgets, especially in dark environments. Perfect for a range of practical applications in daily life, this e-paper display is an excellent choice for e-readers, smart labels, electronic shelf tags, and information boards. The front light ensures visibility in all lighting conditions, making it versatile for both indoor and outdoor use. Whether you're creating a low-power digital signage solution or developing innovative smart home devices, the GDEY0213B74-FL11 e-paper display combines low energy consumption with high readability and durability.

Our product boasts distinctive features that set it apart from the competition

●  Superior Readability in Any Light "See it clearly, anytime, anywhere": The integrated front light ensures crisp visibility even in low-light or dark environments, offering unparalleled readability.
●  Ultra-Low Power Consumption "Set it and forget it": Once updated, this e-ink display maintains its image indefinitely without power, making it perfect for battery or solar-powered devices.
●  Sharp and clear, every time: With a 200x200 resolution and 4-level grayscale, this display provides precise, easy-to-read text and images, ensuring your information is always clear and detailed.
●  Blazing Fast Refresh Rates: Experience ultra-responsive performance with 1.5s quick refresh, 3s full refresh, and a lightning-fast 0.4s partial refresh. Perfect for applications where timely and smooth content updates are crucial.
●  Versatile Applications "One display, endless possibilities": Perfect for smart home devices, wearables, portable information screens, and outdoor displays, this versatile e-ink panel adapts to a variety of uses with ease.
●  Eco-Friendly and Durable "Built to last, kind to the planet": Made from environmentally friendly materials, this display is durable and long-lasting, reducing maintenance costs and environmental impact.

		Technical Details
		Please refer to the product drawings for detailed dimensions

Please refer to the product specifications for more details

PART NUMBER	GDEY0213B74-FL11	CONNECTOR	ePaper:24 Pin FPC Front-light:6 pin FPC
SIZE	2.13 inch	QUANTITY OF LED	3pcs LEDs
IC	SSD1680Z	FRONT LIGHT CONNECTION	LED parallel
RESOLUTION	250x122	VOLTAGE OF BACKLIT	2.8V-3.3V
OUTLINE SIZE(mm)	59.2x29.2x1.85	CURRENT OF BACKLIT	≤45mA
ACTIVE SIZE(mm)	48.55x23.7046	TYPE	Dot Matrix
PIXEL PITCH(mm)	0.1943x0.1942	COLOR	Black,White
OPERATING TEMP.	0℃~50℃	MAX GRAYSCALE	4
STORAGE TEMP.	-25℃~70℃	INTERFACE	Parallel connection
FULL REFRESH(s)	3	EPD POWER CONSUMPTION OF THE REFRESH(mW)	10.5
FAST REFRESH(s)	1.5	EPD STANDBY POWER CONSUMPTION (mW)	0.003
PARTIAL REFRESH TIME(s)	0.42

Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

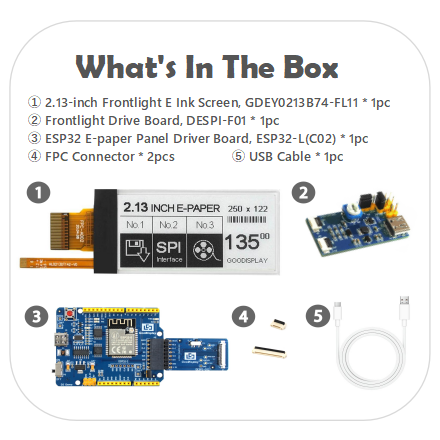

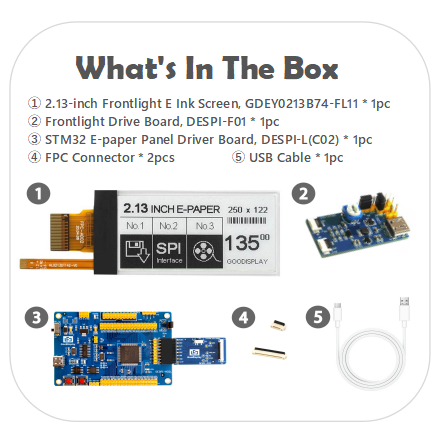

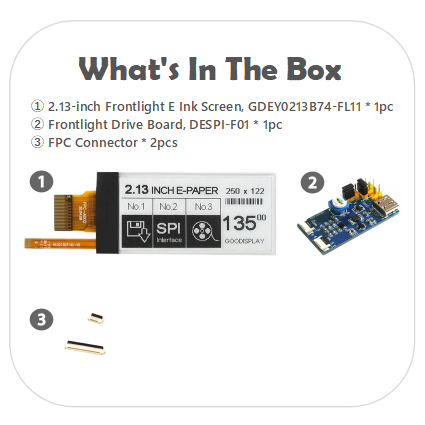

a. DESPI-F01 (Front-light Driver Board)	b. DESPI-C02 (E-ink Display adapter Board)	c. DESPI-L(C02) (STM32 Demo Kit)

d. DEArduino-L(C02) (Arduino Platform Demo Kit)	e. ESP8266-L(C02) (ESP8266 Demo Kit)	f. ESP32-L(C02) (ESP32 Demo Kit)

Files and Download Click on the subheadings below to download


	● Front-light Drawing of 2.13 inch EPD

Product Application

Electronic Shelf Labels	Smart Home Control Panels	Medical Devices	Portable Information Tags	Office Desk Nameplates
