Name: 2.13 inch 1.5s Fast Refresh 250x122 Raspberry Pi EPD supports Electronic Epaper price Tag
Brand: GOOD DISPLAY
SKU: GDEY0213B74
Price: 5.36 USD
Availability: InStock
Rating: 5 (18 reviews)

Description

		Affordable 2.13" E-Paper Display with Rapid 1.5s Refresh Rate

		This compact yet powerful screen offers quick refresh rates - full in 3s, fast in 1.5s, or partial in just 0.4s - ensuring flexibility for various applications. With a resolution of 250x122 pixels and 4 grayscale levels, it delivers crisp black and white images. Operating at 3.3 volts, it's ideal for low-power devices and retains displayed content indefinitely, even without power. Featuring wide viewing angles, anti-glare treatment, and zero blue light emission, it ensures clear visibility and eye comfort. Perfect for shelf tags, smart home setups, and industrial instruments, this ePaper display combines energy efficiency, clarity, and versatility in one impressive package. Get yours today and experience its brilliance firsthand!

Our product boasts distinctive features that set it apart from the competition

●  Rapid Refresh Rates: Say goodbye to sluggish displays! Our 2.13-inch ePaper boasts lightning-fast refresh rates of 3s for full updates, 1.5s for quick changes, and an impressive 0.4s for partial updates, ensuring your content stays dynamic and responsive.
●  Crystal-Clear Imagery: Experience the pinnacle of clarity with a resolution of 250x122 pixels and 4 grayscale levels, delivering stunningly clear and detailed black-and-white images that pop off the screen.
●  Efficiency Redefined: Power up your devices with confidence! Operating at just 3.3 volts, our ePaper display is a champion of energy efficiency, perfect for solar or battery-powered gadgets. Plus, its ability to retain content indefinitely without power means you can rely on it for hassle-free maintenance.
●  Ultimate Comfort and Visibility: Enjoy a viewing experience like no other! With wide viewing angles, anti-glare treatment, and zero blue light emission, our display ensures enhanced visibility and eye comfort, setting a new standard for display excellence.

		Technical Details
		Please refer to the product drawings for detailed dimensions

Please refer to the product specifications for more details

PART NUMBER	GDEY0213B74	CONNECTOR	24 Pin FPC
TYPE	Dot Matrix	MAX GRAYSCALE	4
SIZE	2.13 inch	COLOR	Black,White
IC	SSD1680Z	INTERFACE	SPI
RESOLUTION	250x122	FULL REFRESH(s)	3
OUTLINE SIZE(mm)	59.2x29.2x1.0	FAST REFRESH(s)	1.5
ACTIVE SIZE(mm)	48.55x23.7046	PARTIAL REFRESH TIME(s)	0.42
PIXEL PITCH(mm)	0.1943x0.1942	POWER CONSUMPTION OF THE REFRESH(mW)	10.5
OPERATING TEMP.	0℃~50℃	STANDBY POWER CONSUMPTION (mW)	0.003
STORAGE TEMP.	-25℃~70℃

Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

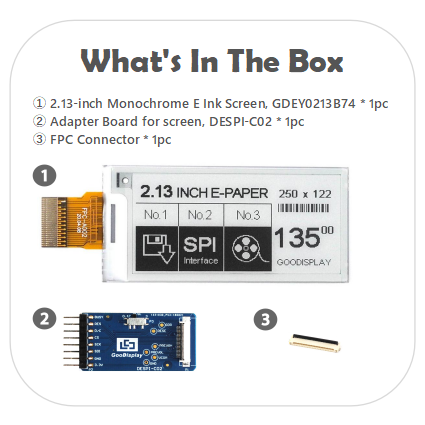

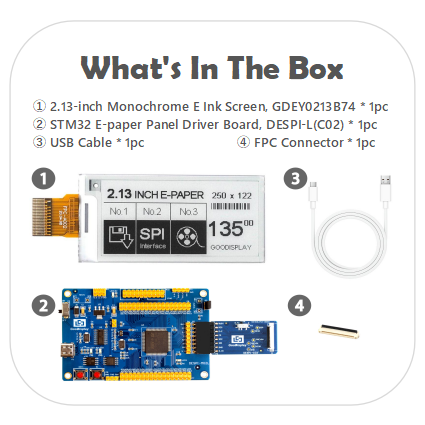

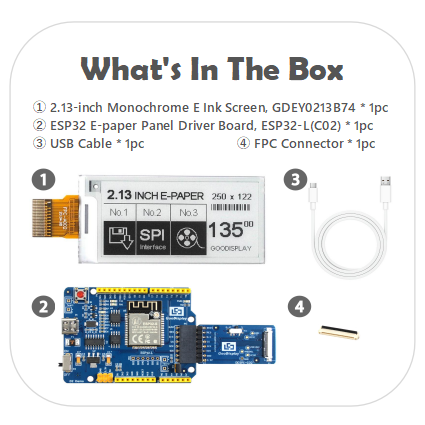

a. DESPI-C02 (E-ink Display adapter Board)	b. DESPI-L(C02) (STM32 Demo Kit)	c. ESP32-L(C02) (ESP32 Demo Kit)	d. ESP8266-L(C02) (ESP8266 Demo Kit)

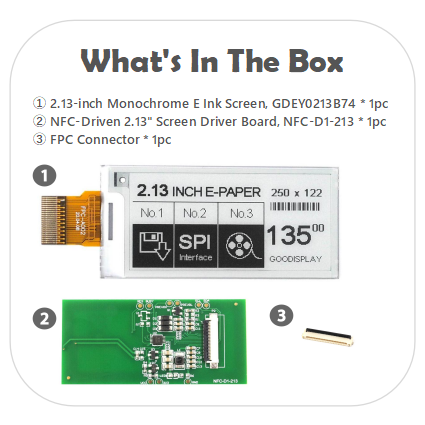

e. DEArduino-L(C02) (Arduino Platform Demo Kit)	f. NFC-D1-213 (NFC Driver Board)	g. ESP32E6-E01 (24Pin SPI ePaper Display Demo Kit)

Related Information Download Click on the subheadings below to download

	● GDEY0213B74 Specification	● GDEY0213B74 ESP8266 Sample Code
	● SSD1680 Driver IC Datasheet	● GDEY0213B74 Arduino Sample Code
	● GDEY0213B74 Picture Production and Bitmap Conversion	● The latest Catalog of ePaper display
	● GDEY0213B74 STM32 Sample Code	● Why can't I download the files?
	● GDEY0213B74 ESP32 Sample Code

Product Application

Smart Home Devices	Electronic Shelf Labels (ESL)	Factory and Warehouse Management	Medical Devices	Personalized Tags
