Name: 4.2-Inch E-Paper Display with Front Light and Fast Refresh Rate
Brand: GOOD DISPLAY
SKU: GDEY042T81-FL02
Price: 22.89 USD
Availability: InStock
Rating: 5 (3 reviews)

Description

TIP: The front light is not sold separately due to precise bonding requirements. Please purchase the complete bonded product. For temperature details, refer to the display screen specifications.

		4.2-Inch Fast Refresh E-Paper Display with Front Light
		Discover the next level of reading comfort with our 4.2-inch E-Paper Display featuring a built-in front light. Designed for book lovers and tech enthusiasts alike, this monochrome SPI E-Ink display offers exceptional clarity and a paper-like reading experience, even in low-light conditions. Upgrade your reading device or project with this versatile and efficient E-Paper display. Whether you're developing a new e-reader, a smart home device, or an innovative gadget, our 4.2-inch E-Paper Display with Front Light is the perfect choice for superior readability and performance.

Our product boasts distinctive features that set it apart from the competition

●  Front Light Technology: Enjoy clear and comfortable reading at any time of day with the integrated front light, reducing eye strain and providing uniform illumination.
●  Fast Refresh Rate: Experience smooth transitions and quick updates, making this display perfect for dynamic content and interactive applications.
●  High Resolution: With crisp, high-contrast text and images, this display ensures readability that rivals traditional paper.
●  Energy Efficient: E-Ink technology consumes minimal power, allowing for extended use without frequent recharging.
●  Wide Compatibility: Easy to integrate with various devices through its SPI interface, making it ideal for e-readers, IoT projects, and more.

		Technical Details
		Please refer to the product drawings for detailed dimensions

Please refer to the product specifications for more details

PART NUMBER	GDEY042T81-FL02	CONNECTOR	ePaper:24 Pin FPC Front-light:6 pin FPC
SIZE	4.2 inch	NUMBER OF LED LIGHTS	7
TYPE	Dot Matrix	FRONT LIGHT CONNECTION	LED parallel
IC	SSD1683	COLOR	Black,White
RESOLUTION	400x300 (DPI:120)	MAX GRAYSCALE	2
OUTLINE SIZE(mm)	91x77x2.2	COLOR	Black,White
ACTIVE SIZE(mm)	84.8x63.6	PARTIAL SCREEN UPDATE(s)	0.42
PIXEL PITCH(mm)	0.212x0.212	FAST UPDATE(s)	1.5
OPERATING TEMP.	0℃~50℃	POWER CONSUMPTION OF THE REFRESH(mW)	13.2
STORAGE TEMP.	-25℃~70℃	STANDBY POWER CONSUMPTION (mW)	0.26
INTERFACE	SPI

Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

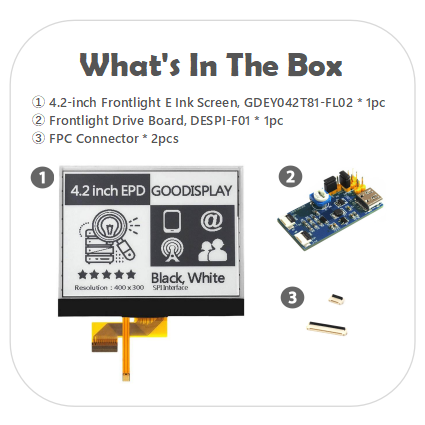

a. DESPI-F01 (Front-light Driver Board)	b. DESPI-C02 (E-ink Display adapter Board)	c. DESPI-L(C02) (STM32 Demo Kit)

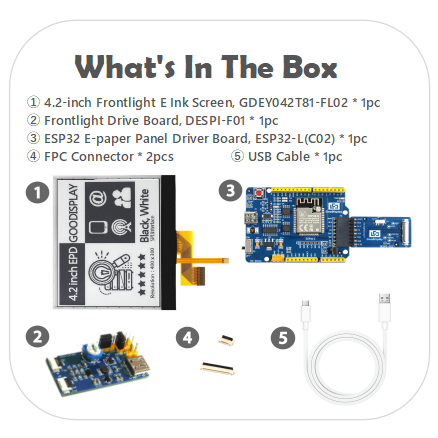

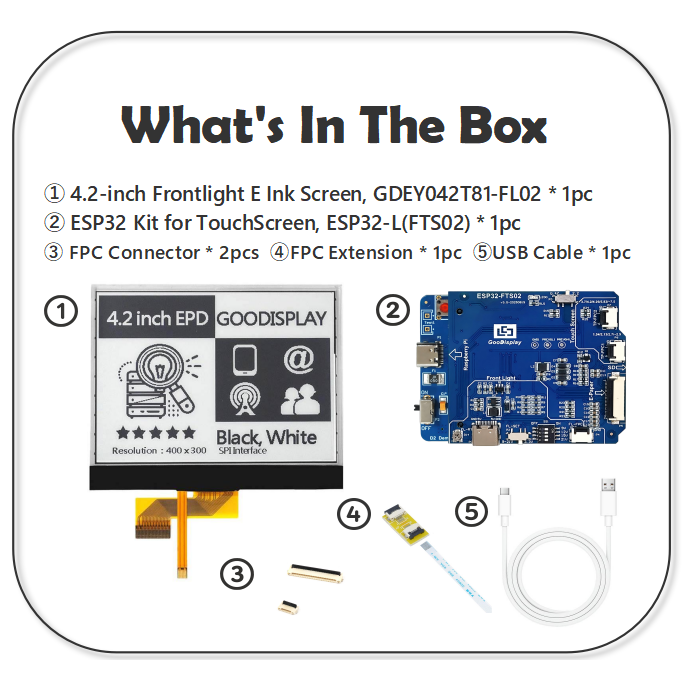

d. DEArduino-L(C02) (Arduino Platform Demo Kit)	e. ESP8266-L(C02) (ESP8266 Demo Kit)	f. ESP32-L(C02) (ESP32 Demo Kit)

Related Information Download Click on the subheadings below to download

	● GDEW042T2-FL02 Drawing	● The latest Catalog of ePaper display
	● Front-lignt Drawing of 4.2 inch EPD	● Why can't I download the files?

Product Application

Electronic Shelf Labels (ESL)	Smart Home Devices	Office and Industrial Instruments	Portable Electronics	Medical Device Displays
