Name: 2.66 inch Four-Color ePaper Display high resolution 360x184 Energy Efficient Glare-Free
Brand: GOOD DISPLAY
SKU: GDEY0266F51H
Price: 8.60 USD
Availability: InStock
Rating: 5 (2 reviews)

Description

		Versatile 2.66" Four-Color ePaper Display Energy-Saving & Eye-Friendly

		This 2.66-inch ePaper display features a high resolution of 360x184 pixels and supports four colors: black, white, yellow, and red. It uses the JD79667 driver IC and communicates via SPI interface. With a full refresh rate every 20 seconds, this display is ideal for applications such as shelf tags, smart tags, smart home devices, industrial instruments, and smart cards. Its bistable technology ensures that the content remains visible without power, and it offers a wide viewing angle of over 170 degrees. Additionally, it has zero power consumption when not refreshing, no blue light emission, and zero radiation, making it a highly energy-efficient and eye-friendly option.

Our product boasts distinctive features that set it apart from the competition

●  High Resolution: At 360x184 pixels, our display ensures sharp and clear visuals, perfect for detailed information display.
●  Four-Color Display: Featuring black, white, yellow, and red, this ePaper screen provides vibrant and versatile color options for various applications.
●  Energy Efficient: The bistable display technology means zero power consumption when not refreshing, ideal for battery-operated devices.
●  Wide Viewing Angle: With an impressive viewing angle exceeding 170 degrees, your content remains visible from almost any direction.
●  Durable and Glare-Free: Hard-coated surface treatment offers anti-glare effects, ensuring readability even in bright environments.
●  Eye-Friendly: Designed with pure reflection display mode, it emits no blue light and has zero radiation, providing a comfortable viewing experience.

		Technical Details
		Please refer to the product drawings for detailed dimensions

Please refer to the product specifications for more details

PART NUMBER	GDEM0266F51H	CONNECTOR	24 Pin 0.5mm
SIZE	2.66 inch	TYPE	Dot Matrix
IC	JD79667	COLOR	Black, White, Red, Yellow
RESOLUTION	360x184	INTERFACE MAX GRAYSCALE	SPI
OUTLINE SIZE(mm)	71.82x36.3x1.0	MAX GRAYSCALE	2
ACTIVE SIZE(mm)	60.12x30.73	FULL REFRESH(s)	20
PIXEL PITCH(mm)	0.167x0.167	POWER CONSUMPTION OF THE REFRESH(mW)	10.5
OPERATING TEMP.	0℃~40℃	STANDBY POWER CONSUMPTION (mW)	0.003
STORAGE TEMP.	-25℃~70℃

Related Information Download Click on the subheadings below to download

	● GDEM0266F51H_Specification	● GDEM0266F51H ESP8266 Sample Code
	● JD79667 Driver IC Datasheet	● GDEM0266F51H ESP32 Sample Code
	● GDEM0266F51H STM32 Sample Code	● The latest Catalog of ePaper display
	● GDEM0266F51H Arduino Sample Code	● Why can't I download the files?

WE ALSO SUGGEST
Click the image below to learn more about our products


2.66-inch E-ink display with a high resolution of 360184, GDEY0266T90H*	2.66 inch Low Temperature E-Ink 296x152 E-Paper, GDEY0266D91LT	2.66 inch E-paper E-ink Display 296x152 Color SPI Screen, GDEY0266Z90	2.66" High resolution 296x152 black,white,red and yellow color epaper display,GDEY0266F51

Matching Driver Board

To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

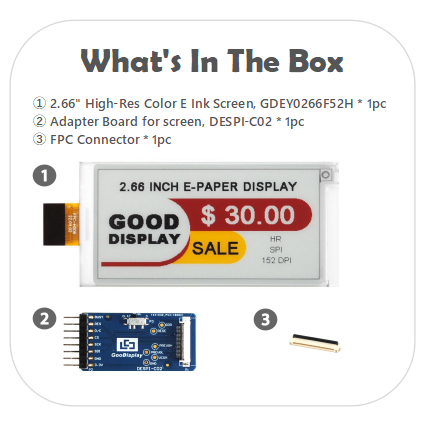

a.DESPI-C02 (E-ink Display adapter Board)

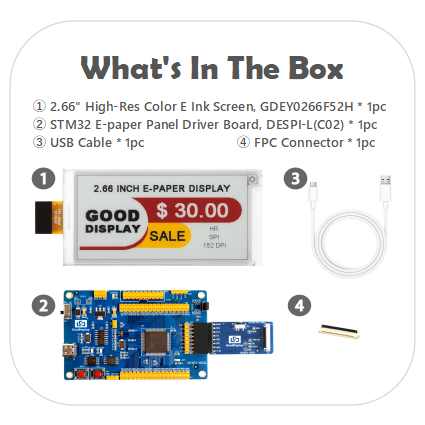

b.DESPI-L(C02) (STM32 Demo Kit)

c.DEArduino-L(C02) (Arduino Platform Demo Kit)

d.ESP8266-L(C02) (ESP8266 Demo Kit)

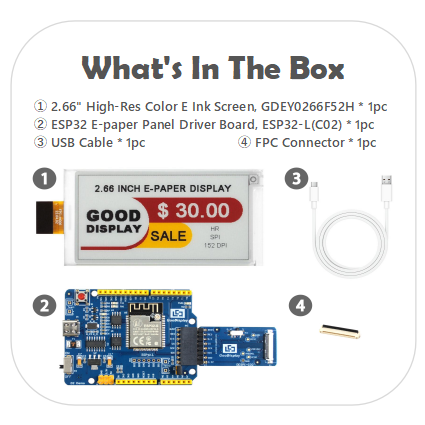

e.ESP32-L(C02) (ESP32 Demo Kit)

f. NFC-D3-0213 (NFC Driver Board)

Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].
