Name: 1.54 Inch Tri-Color E-Paper Display - Black, White, Red, and Yellow Eink 152x152 Resolution
Brand: GOOD DISPLAY
SKU: GDEY0154F51
Price: 4.09 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

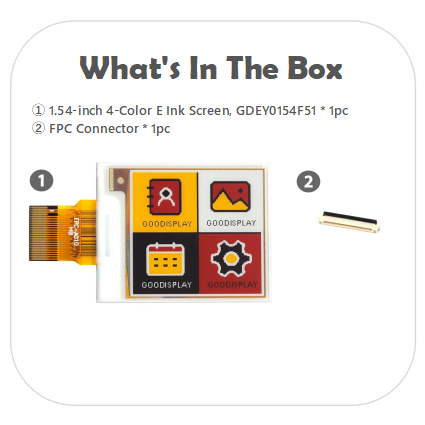

		1.54 Inch Tri-Color E-Paper Display - Black, White, Red, and Yellow Eink
		This 1.54-inch e-ink display with 152x152 resolution features black, white, yellow, and red colors. It uses an SPI interface and retains images without power, making it perfect for low-power devices like solar or battery-powered applications. The GDEY0154F51 display offers a full refresh in 26 seconds, can be viewed horizontally or vertically, and has a wide viewing angle over 170 degrees. With no blue light emission, zero radiation, and anti-glare hard-coated surface, it's easy on the eyes. Operating at 3.3V and between 0-40℃, it’s an energy-efficient, long-term stable solution for your e-paper needs.

Our product boasts distinctive features that set it apart from the competition

● Vibrant Multicolor Display: Elevate your visual experience with stunning black, white, red, and yellow hues. Perfect for showcasing dynamic information with a pop of color.
● Features vibrant colors and the ability to achieve color mixing: This allows for enhanced visual appeal and richer display options, making it suitable for applications that require bright and diverse colors.
● Ultra-Low Power Consumption: Thanks to bistable technology, our display consumes no power when not refreshing. Ideal for long-lasting, energy-efficient applications.
● Superior Viewing Angle: Enjoy a crystal-clear view from any direction with an impressive 170-degree viewing angle. Your content remains sharp and readable, no matter where you look.
● Eye-Friendly Design: Say goodbye to eye strain with our blue light-free, zero radiation display. Perfect for smart tags, wearable devices, and more, ensuring comfort during prolonged use.
● Anti-Glare Surface: Experience unparalleled readability even under bright light. Our hard-coated anti-glare surface ensures your content is always visible, indoors or outdoors.
● Reliable Long-Term Supply: Count on consistent, stable supply for all your bulk purchasing needs. Ideal for industrial instruments, smart cards, and any project requiring dependable delivery.

		Technical Details
		Please refer to the product drawings for detailed dimensions

Please refer to the product specifications for more details

PART NUMBER	GDEY0154F51	CONNECTOR	24 Pin FPC
SIZE	1.54 inch	TYPE	Dot Matrix
IC	JD79661	COLOR	Black, White, Yellow, Red
RESOLUTION	152x152	INTERFACE	SPI
OUTLINE SIZE(mm)	37.32x31.8x1.0	MAX GRAYSCALE	2
ACTIVE SIZE(mm)	27.512x27.512	TIME OF REFRESH(S)	26
PIXEL PITCH(mm)	0.181x0.181	POWER CONSUMPTION OF THE REFRESH(mW)	8.25
OPERATING TEMP.	0℃~40℃	STANDBY POWER CONSUMPTION (mW)	0.003
STORAGE TEMP.	-25℃~70℃

Files and Download Click on the subheadings below to download

	● GDEY0154F51 Specification	● GDEY0154F51 Arduino Sample Code
	● JD79661 Driver IC Datasheet	● GDEY0154F51 ESP8266 Sample Code
	● GDEY0154F51 STM32 Sample Code	● The latest Catalog of ePaper display
	● GDEY0154F51 ESP32 Sample Code	● Why can't I download the files?
	● Picture Production and Bitmap Convert for GDEY0154F51	● E Ink Prism Specification

Product Application

Retail and Shelf Labels	Logistics Management	Smart Home and IoT Devices	Transportation and Access Control	Medical and Health Monitoring

WE ALSO SUGGEST
Click the image below to learn more about our products


1.54 inch electronic paper display Customizable 1.5s fast refresh partial refresh digital price tags screen, GDEY0154D67	1.54 inch E-paper Display 200x200 Resolution Partial Screen Update Touch Eink Display, GDEY0154D67-T03	1.54 inch small e-ink display with frontlight 4 Grayscale display panel, GDEY0154D67-FL04	1.54 inch electronic paper display Customizable 1.5s fast refresh partial refresh digital price tags screen, GDEY0154D67-FT01

Epaper-display Thin 1.54inch epaper Electronic Shelf Label E Ink Panel, GDEM0154Z91	1.54 inch e-paper display high resolution 200x200 partial refresh fast speed GDEW0154M09	1.54 inch E-paper four color yellow and red Eink High Resolution 200x200, GDEM0154F51H	1.22 inch high-frequency update E Ink screen with 2s fast refresh 176x192, GDEM0122T61

Matching Driver Board

To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

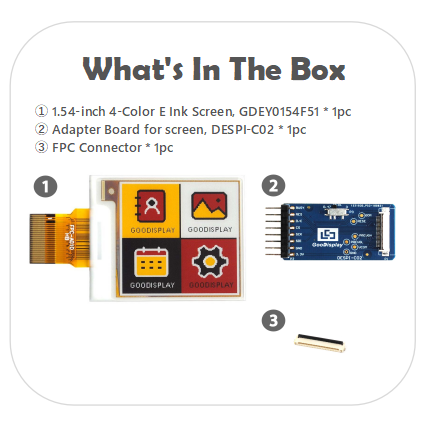

a. DESPI-C02 (E-ink Display adapter Board)

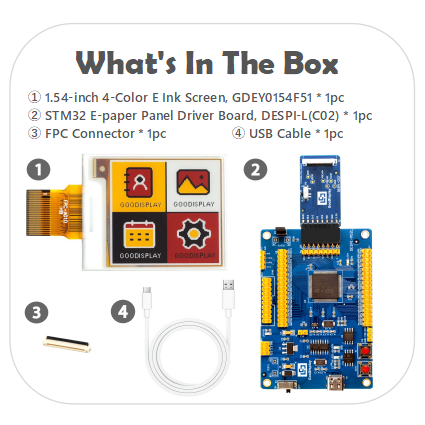

b. DESPI-L(C02) (STM32 Demo Kit)

c. DEArduino-L(C02) (Arduino Platform Demo Kit)

d. ESP8266-L(C02) (ESP8266 Demo Kit)

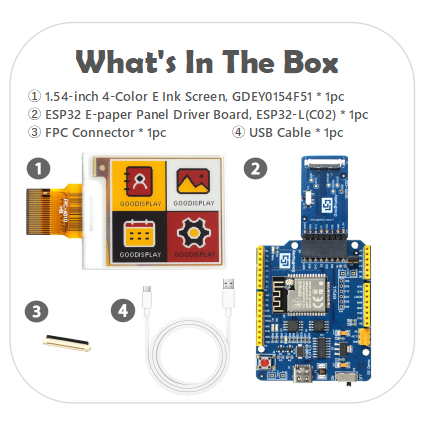

e. ESP32-L(C02) (ESP32 Demo Kit)

Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
