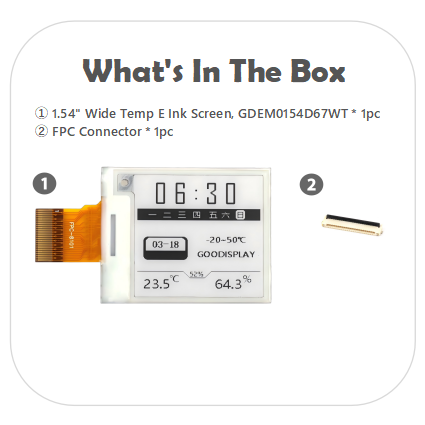

Name: 1.54-inch E-paper Display Module Wide Temperature(-25°C~50°C) Resolution 200x200
Brand: GOOD DISPLAY
SKU: GDEM0154D67WT
Price: 6.70 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

		Elevate your tech game with our versatile and reliable 1.54" E-paper display
		This is a 1.54 Wide Temperature e-ink display, 200x200 resolution, SPI interface, Full refresh for 3.5s, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. The e-paper display GDEM0154D67WT is perfect for low power devices powered by solar or batteries, such as smart tags, wearable devices, smart home applications, industrial instruments, and smart cards. Elevate your tech game with our versatile and reliable E-paper display!

Our product boasts distinctive features that set it apart from the competition

● Extreme Temperature Resilience: From -25°C to 50°C, our E-paper thrives in any climate. Perfect for both Arctic chills and desert heat!
● Cost-Effective and Reliable: High performance without breaking the bank. Consistent supply for all your large-scale projects.
● Ultra-Low Power Consumption: Lasts as long as you need it. Power-efficient design means no energy drain when not refreshing.
● Superior Visual Experience: Crisp, clear, and easy on the eyes. Enjoy over 170 degrees of wide viewing without any blue light.
● Anti-Glare Hard-Coated Surface: Readable even in bright sunlight. Our anti-glare treatment keeps your display clear and sharp.
● Versatile and Adaptable: From wearables to smart home devices, our 1.54-inch E-paper fits seamlessly into any design with both horizontal and vertical display options.

		Technical Details
		Please refer to the product drawings for detailed dimensions

Please refer to the product specifications for more details

PART NUMBER	GDEM0154D67WT	CONNECTOR	24 PIN 0.5mm
SIZE	1.54 inch	TYPE	Dot Matrix
IC	SSD1681	MAX GRAYSCALE	4
RESOLUTION	200x200	COLOR	Black, White
OUTLINE SIZE(mm)	37.32x31.8x1.0	Typical power(mW)	9.6
ACTIVE SIZE(mm)	27.00x27.00	Deep sleep power(mW)	0.003
PIXEL PITCH(mm)	0.135x0.135	Full update time(s)	2
OPERATING TEMP.	-25℃~50℃	FAST UPDATE TIME(s)	1.5
STORAGE TEMP.	-25℃~70℃	PARTIAL UPDATE TIME(s)	0.3
INTERFACE	SPI

Related Information Download Click on the subheadings below to download

	● GDEM0154D67WT Specification	● GDEM0154D67WT ESP8266 Sample Code
	● SSD1681 Driver IC Datasheet	● GDEM0154D67WT ESP32 Sample Code
	● Image2LCD Software Bitmap Conversion Instructions V1.0	● The latest Catalog of ePaper display
	● GDEM0154D67WT STM32 Sample Code	● Why can't I download the files?
	● GDEM0154D67WT Arduino Sample Code

Product Application

Low Temperature Shelf Tag	Industrial Instrument	Smart Home Application	Smart Card	Smart Tag

WE ALSO SUGGEST
Click the image below to learn more about our products


1.54 inch electronic paper display Customizable 1.5s fast refresh partial refresh digital price tags screen, GDEY0154D67	1.54 inch E-paper Display 200x200 Resolution Partial Screen Update Touch Eink Display, GDEY0154D67-T03	1.54 inch small e-ink display with frontlight 4 Grayscale display panel, GDEY0154D67-FL04	1.54 inch electronic paper display Customizable 1.5s fast refresh partial refresh digital price tags screen, GDEY0154D67-FT01

Epaper-display Thin 1.54inch epaper Electronic Shelf Label E Ink Panel, GDEM0154Z91	1.54-inch Flexible E Ink Display 0.3s Partial Refresh 200x200 ePaper Displays Module, GDEM0154I61	1.54 inch E-paper four color yellow and red Eink High Resolution 200x200, GDEM0154F51H	1.22 inch high-frequency update E Ink screen with 2s fast refresh 176x192, GDEM0122T61

Matching Driver Board

To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

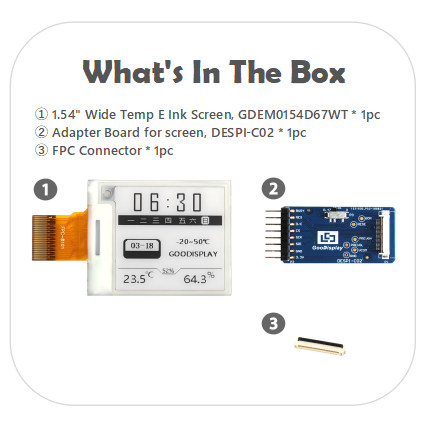

a.DESPI-C02 (E-ink Display adapter Board)

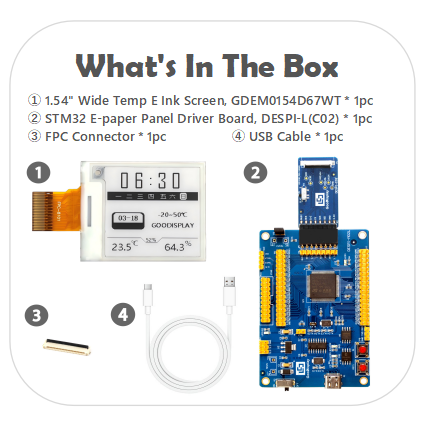

b.DESPI-L(C02) (STM32 Demo Kit)

c.DEArduino-L(C02) (Arduino Platform Demo Kit)

d.ESP8266-L(C02) (ESP8266 Demo Kit)

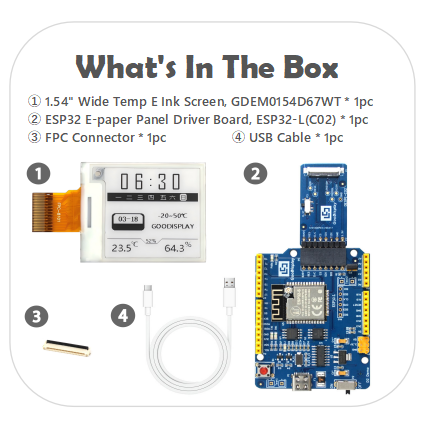

e.ESP32-L(C02) (ESP32 Demo Kit)

f. ESP32E6-E01 (24Pin SPI ePaper Display Demo Kit)

Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].
