Name: 3.1 inch ePaper Display 1s Fast refresh 320x240 UC8253 SPI E Ink screen
Brand: GOOD DISPLAY
SKU: GDEQ031T10
Price: 13.80 USD
Availability: InStock
Rating: 5 (7 reviews)

Description

		3.1-Inch ePaper Display: The Perfect Blend of Power Efficiency and Endurance
		Experience the GDEQ031T10, a 3.1-inch ePaper display with a sleek 320x240 resolution and SPI interface. It effortlessly showcases high-definition black and white images. What sets it apart? This display boasts impressive refresh rates: a full screen updates in just 3 seconds, while fast updates take only 1 second, and partial updates a swift 0.5 seconds. Once updated, content remains vivid indefinitely without power—perfect for solar or battery-powered devices. Embrace cutting-edge display technology with the GDEQ031T10, where efficiency meets enduring performance.

		Special Features
		Our product boasts distinctive features that set it apart from the competition
		● Cutting-Edge Refresh Rates: Experience lightning-fast updates with our 3.1-inch ePaper display, featuring full refresh in just 3 seconds, fast refresh in 1 second, and rapid partial updates in only 0.5 seconds. Perfect for dynamic content displays that demand speed and efficiency. ● Advanced Display Technology: Harness the power of UC8253 driver IC and SPI interface for seamless integration and high-resolution 320x240 black and white visuals. Whether for smart tags, shelf displays, or industrial instruments, clarity and precision are guaranteed. ● Energy Efficiency: Embrace sustainability with our ePaper's revolutionary energy-saving design. Enjoy zero power consumption during static display, ideal for eco-conscious applications powered by solar or battery sources. Reduce your carbon footprint without compromising on performance. ● Wide Viewing Angles: Benefit from a wide viewing angle exceeding 170 degrees, ensuring crystal-clear visibility from virtually any perspective. Whether in bright sunlight or dimly lit environments, your content remains vivid and easily accessible. ● Enhanced Eye Protection: Say goodbye to blue light and radiation concerns. Our ePaper employs pure reflection technology, emitting zero blue light and providing a comfortable viewing experience that promotes eye health and reduces strain.

		Technical Details
		Please refer to the product drawings for detailed dimensions

Product Specifications

Please refer to the product specifications for more details

PART NUMBER	GDEQ031T10	CONNECTOR	25 Pin FPC
SIZE	3.1 inch	MAX GRAYSCALE	4
TYPE	Dot Matrix	COLOR	Black,White
IC	UC8253	INTERFACE	SPI
RESOLUTION	320x240	FULL REFRESH(s)	3
OUTLINE SIZE(mm)	73.8x53.24x0.926	FAST REFRESH(s)	1
ACTIVE SIZE(mm)	62.72x47.04	PARTIAL REFRESH(s)	0.5
PIXEL PITCH(mm)	0.196x0.196	POWER CONSUMPTION OF THE REFRESH(mW)	11
OPERATING TEMP.	0℃~50℃	STANDBY POWER CONSUMPTION (mW)	0.0165
STORAGE TEMP.	-25℃~60℃

Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

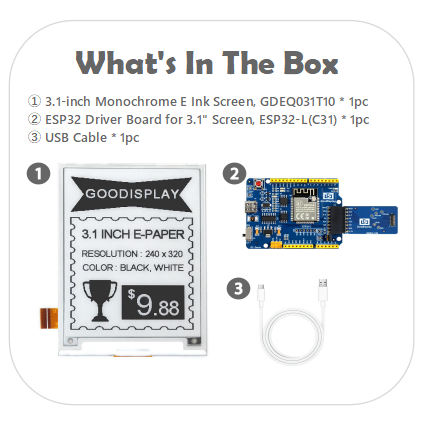

a.DESPI-C31 (E-ink Display adapter Board)	b.DESPI-L(C31) (STM32 Demo Kit)	c. ESP32-L(C31) (ESP32 Demo Kit)

Related Information Download Click on the subheadings below to download

	● GDEQ031T10- Specification	● GDEQ031T10-ESP8266 Sample Code
	● UC8253 Driver IC Datasheet	● The latest Catalog of ePaper display
	● GDEQ031T10 Bitmap Conversion	● Why can't I download the files?
	● GDEQ031T10-STM32 Sample Code	● Company Profile
	● GDEQ031T10-ESP32 Sample Code	● Product Catalog
	● GDEQ031T10-Arduino Sample Code

WE ALSO SUGGEST
Click the image below to learn more about our products


3.7 inch 416x240 e-paper black and white SPI fast refresh electronic eink display screen ESL, GDEY037T03	3.7 inch touch screen, for 3.7 inch e-paper display, GDEY037T03-T02	3.7'' Color E ink E paper Display UC8253 E-ink Display, GDEY037Z03	3.7-inch ePaper raw Display for Raspberry Pi/Jetson Nan, Black, White, Yellow, and Red, 416x240, GDEM037F52

Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
