GooDisplay 2.13" Touchscreen and Front-light E-Paper HAT Capacitive Touch E-Ink Module
USD $13.82

0

Please selectProduct
----
qty :
220 available
Close
USD $13.82
Product :

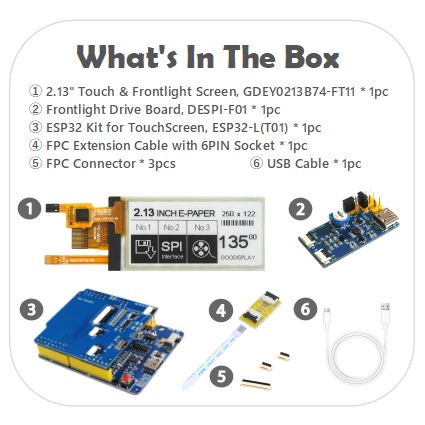

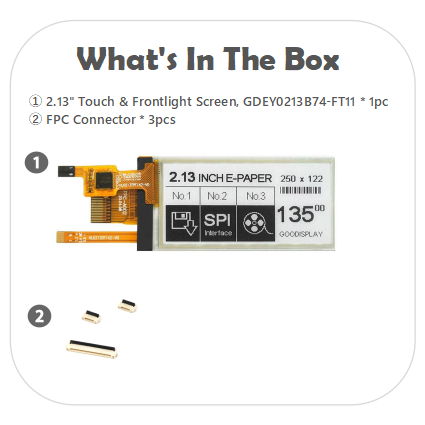

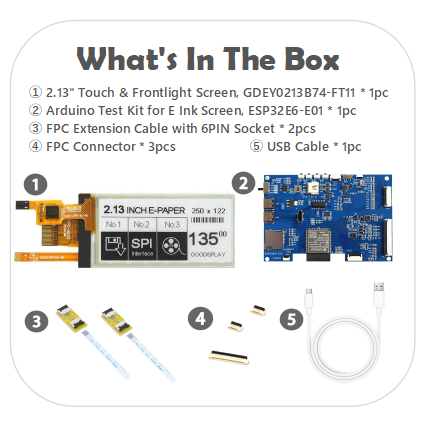

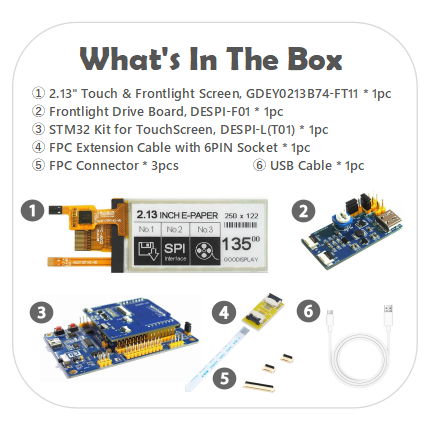

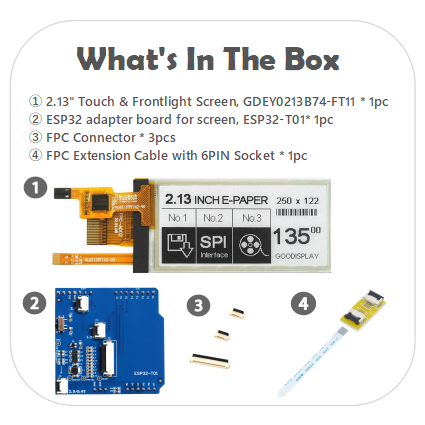

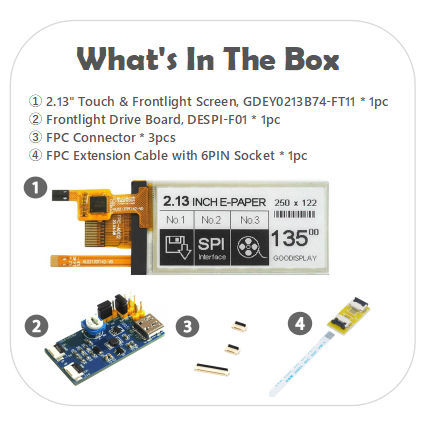

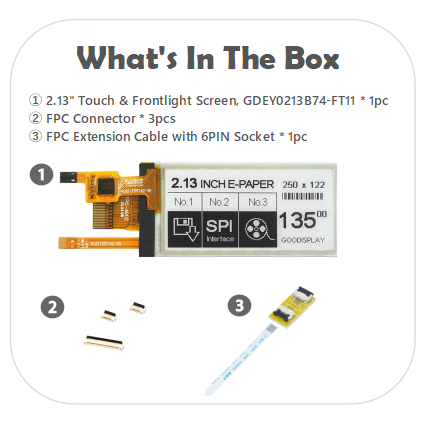

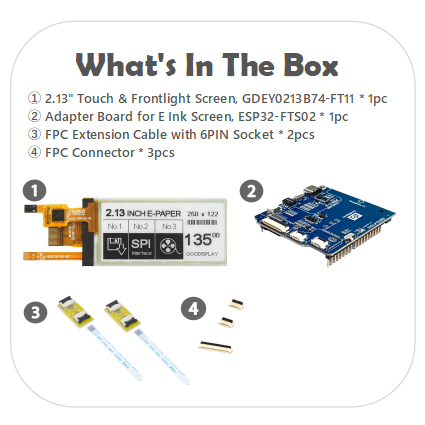

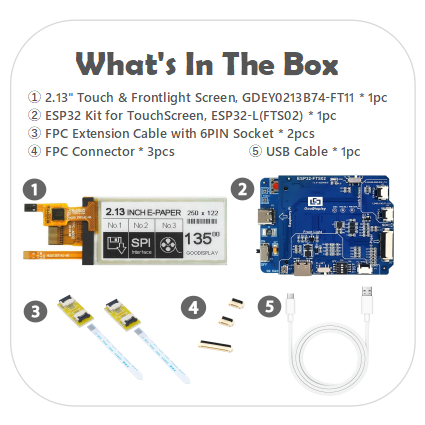

EPD EPD with Front-light Driver Board EPD with STM32 adapter board EPD with STM32 Demo Kit EPD with ESP32 adapter board EPD with ESP32 Demo Kit
qty :
220 available
Have a question?
Find answers in product info, Q&As, reviews
Have a question?
Description

TIP: The front light is not sold separately due to precise bonding requirements. Please purchase the complete bonded product. For temperature details, refer to the display screen specifications.




2.13" Touchscreen & Front-light E-Paper HAT for Raspberry Pi Capacitive Touch, Fast Refresh, Low Power Consumption





This 2.13-inch e-paper E-Ink display features a backlight with a resolution of 250x122 pixels. It offers a fast refresh rate of 1.5 seconds, a full refresh in 3 seconds, and a partial refresh in just 0.3 seconds, ensuring efficient performance for various applications. The display supports black-and-white image display and maintains the image indefinitely without power once updated, making it ideal for low-power devices such as solar- or battery-powered gadgets, especially in dark environments.

Additionally, the display includes touchscreen functionality, allowing users to interact directly with the screen for enhanced usability and flexibility. The touchscreen capability expands its potential for use in embedded controls, convenient input, and smart devices, making it suitable for a wide range of applications.









Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Front Light, Read Anytime – Built-in lighting for clear visibility in low light, read effortlessly day or night.
  ●  Touch Control, Intuitive & Smooth – Precise touch response, swipe and tap with ease for seamless navigation.
  ●  2.13-inch Compact Display – Ultra-portable, perfect for smartwatches and e-tags on the go.
  ●  E Ink Technology, Eye-Friendly & Energy-Saving – Paper-like clarity with ultra-low power consumption for comfortable reading.
  ●  Multi-Scene Ready, Instant Updates – Fast refresh rates for real-time content, keeping you connected at all times.












Technical Details









Please refer to the product drawings for detailed dimensions













Product Specifications


    Please refer to the product specifications for more details

PART NUMBER GDEY0213B74-FT11 TOUCH CONNECTOR  6 Pin FPC
TYPE Dot Matrix  TOUCH IC TOUCH IC  FT6336U
SIZE 2.13 inch TOUCH VOLTAGE   2.8-3.6 V
IC SSD1680Z8 CONNECTOR   6 pin FPC
RESOLUTION 250x122 NUMBER OF LED LIGHT
OUTLINE SIZE(mm) 59.2x29.2x2.15 CIRCUIT MODE PARALLEL   Connection
ACTIVE SIZE(mm) 48.55x23.7 OPERATING VOLTAGE   2.8V-3.3V
PIXEL PITCH(mm) 0.1942x0.1942 OPERATING CURRENT  ≤45mA
OPERATING TEMP. 0℃~50℃ FULL REFRESH(s) 3
STORAGE TEMP. -25℃~70℃ FAST REFRESH(s) 1.5
CONNECTOR 24 Pin FPC PARTIAL REFRESH TIME(s) 0.3
MAX GRAYSCALE 4 POWER CONSUMPTION OF THE REFRESH(mW) 9
COLOR Black,White STANDBY POWER CONSUMPTION (mW) 0.003
INTERFACE  SPI









Matching Driver Board



To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.





a. DESPI-F01(Front-light Driver Board)

b. STM32-T01 (STM32 adapter Board)

c. DESPI-L(T01) (STM32 Demo Kit)



d. ESP32-T01 (ESP32 adapter Board)

e. ESP32-L(T01) (ESP32 Demo Kit)









Files and Download

Click on the subheadings below to download



  ● Why can't I download the files(updated)? ● The Lastest Catalog










Product Application





Electronic Shelf Labels

Smart Home Control Panels

Medical Devices

Portable Information Tags

Office Desk Nameplates









Every day is Earth Day





You don't need to be an environmental scientist to make sustainable choices.
At Good Display, we passionately integrate sustainability into the production of e-paper.













Substitute for Paper Usage

Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.

Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.

Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.
