Name: Good e-Paper display 3.97inch E-ink display 800x480 SPI Interface by China Manufacturer
Brand: GOOD DISPLAY
SKU: GDEM0397T81P
Price: 17.50 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

		High-Resolution 3.97-Inch e-Paper Display with 0.3s Refresh Low Power Consumption

		This 3.97-inch e-paper display features a resolution of 800x480, delivering clear and detailed images, making it perfect for DIY photo displays on phone cases, and other applications. It supports FPC customization, offering flexibility to meet various design needs, combining both convenience and practicality.

	Special Features
	● Supports full refresh in 1.5s, partial refresh in 0.3s, full screen refresh in 3s for smooth, seamless updates of dynamic content. ● High-Resolution Display: 800x480 high pixel density for clear, detailed images and text. ● 4 Levels of Grayscale Support： Enhanced contrast and clarity for a variety of visual applications. ● Compatible with STM32,ESP32，ESP8266 main boards via SPI interface, backed by detailed documentation and user-friendly manuals.

The Advantages of E Ink Displays


		E Ink displays use electrophoretic imaging technology, reflecting ambient light to create a paper-like appearance without the need for a backlight, providing a glare-free, energy-efficient reading experience. Since the display doesn't require constant power to maintain the image, it is highly energy-efficient. E Ink screens offer nearly 170° viewing angles and high contrast, making them ideal for smart devices applications focused on eco-friendly, eye-friendly readability.

	Technical Details

Product Specifications
PART NUMBER	GDEM0397T81P	CONNECTOR	24 PIN 0.5mm
TYPE	Dot Matrix	COLOR	Black, White
SIZE	3.97 inch	INTERFACE	SPI
IC	SSD1677	MAX GRAYSCALE	4
RESOLUTION	800x480	4-LEVEL GRAYSCALE TIME(s)	3
PPI	235	TYPICAL POWER(mW)	12.6
OUTLINE SIZE(mm)	96.62x56.24x0.92	FULL UPDATE TIME(s)	3
ACTIVE SIZE(mm)	86.40x51.84	FAST REFRESH TIME(s)	1.5
PIXEL PITCH(mm)	0.108x0.108	PARTIAL REFRESH TIME(s)	0.3
OPERATING TEMP.	-25℃~50℃	TYPICAL POWER(mW)	36
STORAGE TEMP.	-25℃~70℃	DEEP SLEEP POWER(mW)	0.003

Matching Driver Boards

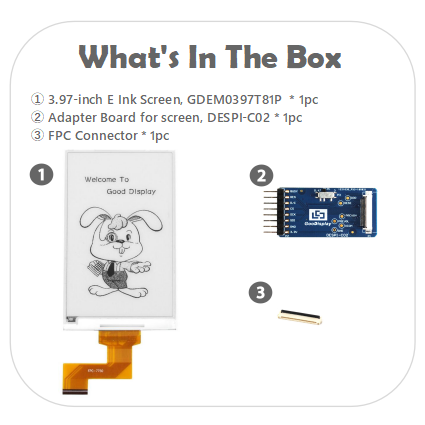

Ⅰ. DESPI-C02
(E-ink Display adapter Board)

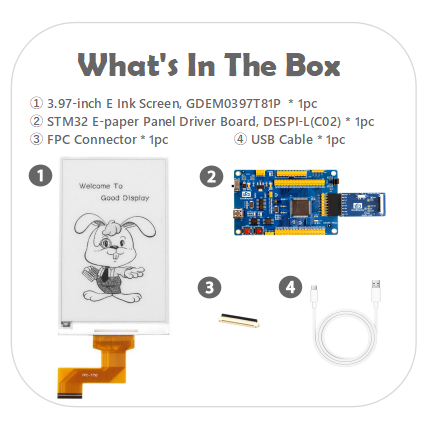

Ⅱ. DESPI-L(C02)
(STM32 Demo Kit)

Ⅲ. DEArduino-L(C02)
(Arduino Platform Demo Kit)

Ⅳ. ESP8266-L(C02)
(ESP8266 Demo Kit)

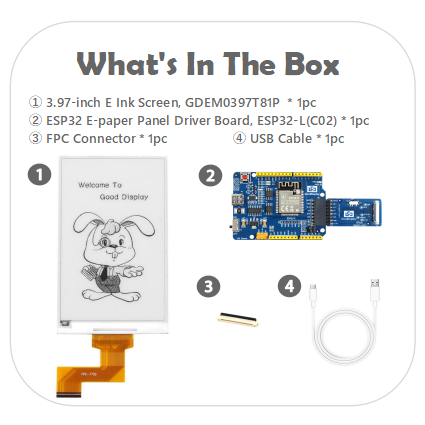

Ⅴ. ESP32-L(C02)
(ESP32 Demo Kit)

Ⅵ. ESP32E6-E01
(24Pin SPI EPD Demo Kit)


	Files And Download
	● GDEM0397T81P_Specification	● Why can't I download the files(updated)?
	● IC Driver SSD2677(Rev1.1)	● The Lastest Catalog
	● Image2LCD Software Bitmap Conversion Instructions V1.1

Product Application

Automotive Dashboard	Medical Equipment	Industrial Applications	Smart Labels for Retail

Every Day is Earth Day
You don't need to be an environmental scientist to make sustainable choices. At GooDisplay, we passionately integrate sustainability into the production of e-paper.

Substitute for Paper Usage Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.	Device Packaging 95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.	Energy Efficiency Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.

We Also Recommend


4-Inch Full-Color ePaper Display E Ink Spectra 6 Resolution 600x400 GDEP040E01	4.2 Inch E-paper Display 0.26s Fast Update Morochrome SPI E-ink GDEY042T81	4.2-Inch E-Paper Display with Front Light and Fast Refresh Rate GDEY042T81-FL02	4.2-Inch E-Paper Touchscreen Display Monochrome SPI E-Ink Front Light for Optimal Reading Experience GDEY042T81-FT02

Why GooDisplay E-Paper Refreshes Faster

Optimized Fast-Refresh FPL

We rigorously select fast-refresh FPL films at the raw material level, laying a solid hardware foundation for high-speed performance.

Smart Temp-Controlled Drive

Our engineers optimize waveform files for different temperature ranges, ensuring excellent display quality even during rapid refresh cycles.

Chip-Level Integrated Solution

Optimized waveforms are built into the display driver chip—activate fast refresh mode with a simple code call!

Display Type	Refresh Capability	Available Sizes
Black & White (B/W) Displays	Supports fast refresh, partial refresh, and 4-level grayscale	0.97" to 10.3"
Black, White & Red (BWR) Displays	Supports fast refresh and partial B/W refresh	2.13" to 11.6"
Black, White, Red & Yellow (BWRY) Displays	Supports fast refresh with multi-color layered updating	0.97" to 11.6"
