Name: 3.5" E-Paper 384x184 Pixels 0.3s Fastest Refresh E-Ink Displays Electronic Paper Display
Brand: GOOD DISPLAY
SKU: GDEW0213I5FDC70
Price: 10.15 USD
Availability: InStock

Description

		3.5-Inch E-Paper Display 384x184 Resolution SPI E Ink Panels

		Want to experience true low-power display technology? This 3.5-inch E-Paper Display is powered by the SSD1865 driver, featuring a high resolution and 4-level grayscale display for crisp black-and-white clarity. It is easy to integrate and perfect for applications such as smart home devices, portable electronics, electronic labels, and industrial instruments. One of its standout features is the ability to support full refresh, partial refresh, and fast refresh, ensuring faster data updates while eliminating the ghosting issues of traditional e-paper screens. Additionally, optional front light and touchscreen features allow for even greater versatility, enabling more creative and interactive projects!

Achieve lightning-fast 1.5s full refresh and 0.3s partial refresh, delivering ultra-smooth visuals for a seamless experience.

With a 384x184 resolution, this E Ink screen is perfect for detailed content display in applications like smart labels, wearables, and IoT devices.

E Ink displays consume power only during refresh, with zero power usage in static display mode and the ability to retain images without power.

Special Features

● High Compatibility – Compatible with STM32, ESP32, ESP8266, and Arduino development boards, with a plug-and-play SPI interface for seamless integration.
● Customizable Options – Supports front light and touchscreen as optional add-ons, providing enhanced functionality for smart and interactive e-paper applications.
● Reliable Quality – Every display undergoes rigorous factory testing and is backed by detailed documentation and dedicated technical support to ensure the success of your projects.

Technical Details

Product Specifications

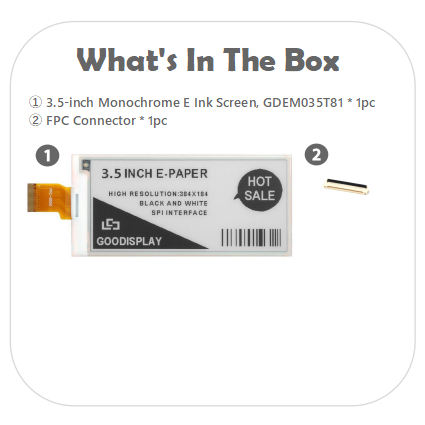

PART NUMBER	GDEM035T81	CONNECTOR	24 Pin 0.5mm
TYPE	Dot Matrix	MAX GRAYSCALE	4
SIZE	3.5 inch	COLOR	Black,White
IC	SSD1685	FULL REFRESH TIME(s)	2
RESOLUTION	384x184	PARTIAL REFRESH TIME(s)	0.3
OUTLINE SIZE(mm)	91.75x45.03x0.9	FAST REFRESH(s)	1.5
ACTIVE SIZE(mm)	79.68x38.18	OPERATION POWER DISSIPATION (mW)	15
PIXEL PITCH(mm)	0.2075x0.2075	STANDBY POWER DISSIPATION (mW)	0.003
OPERATING TEMP.	0℃~50℃	INTERFACE	SPI
STORAGE TEMP.	-25℃~70℃

Matching Driver Boards

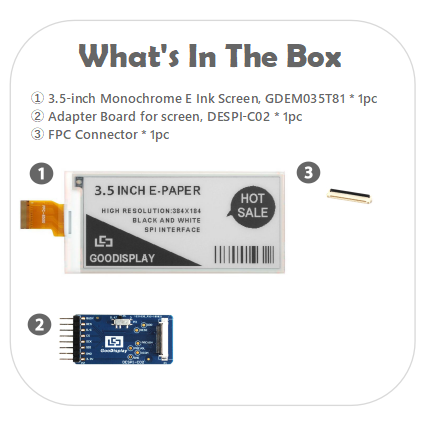

Ⅰ. DESPI-C02 (EPD adapter Board)

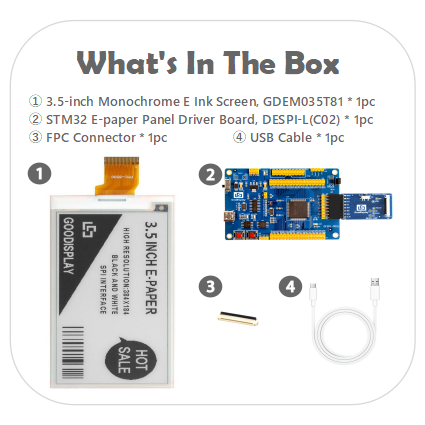

Ⅱ. DESPI-L(C02) (STM32 Demo Kit)

Ⅲ. ESP8266-L(C02) (ESP8266 Demo Kit)

Ⅳ. ESP8266-L(C02) (ESP8266 Demo Kit)

Ⅴ. DEArduino UNO R4-L(C02) (Arduino Demo Kit)

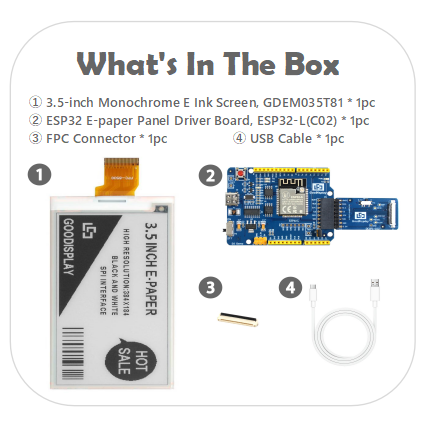

Ⅵ. ESP32E6-E01 (24Pin SPI ePaper Display Demo Kit)

Files And Download

	● Why can't I download the files(updated)?	● The Lastest Catalog

Product Application

Smart Thermostats	Electronic Shelf Labels (ESL)	Electronic Timetables	Smart Business Cards
