☆ INTRODUCTION

This is a 5.83 inch e-ink display with 648x480 resolution, SPI interface, and the display is capable to display images with black, white and yellow content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.


This 5.83 inch e-ink display GDEW583C64 is perfect for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.

We provide the E-Ink Adapter Board for you to connect the E-paper Display.

We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

* This e-ink display module DOES NOT support partial updates.



☆ THE ABOVE PRICE INCLUDE

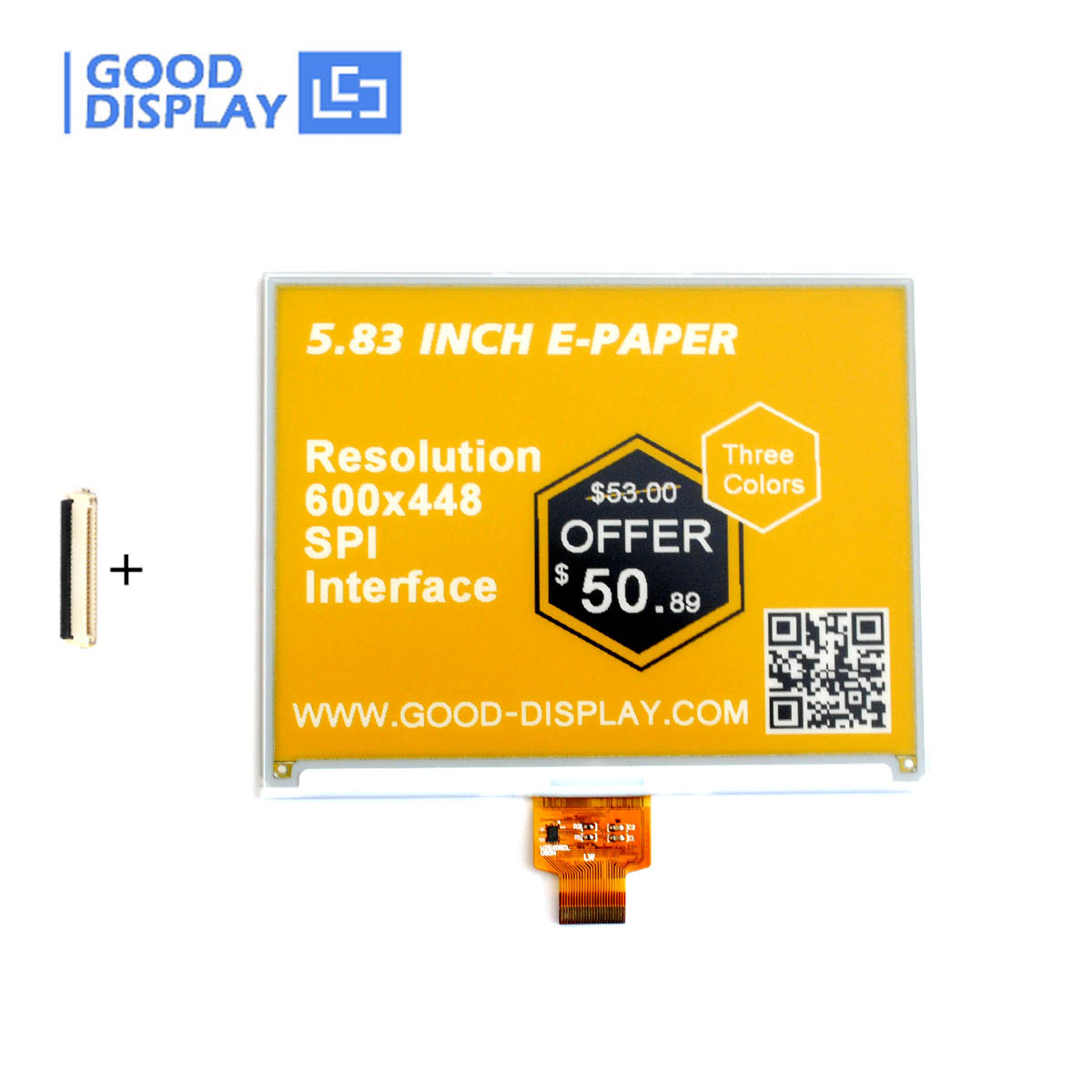

Package A		+
	a. 5.83 inch 3-color three colors yellow e-paper display eink screen module, GDEW0583C64 * 1pc		b. FPC Connector * 1pc

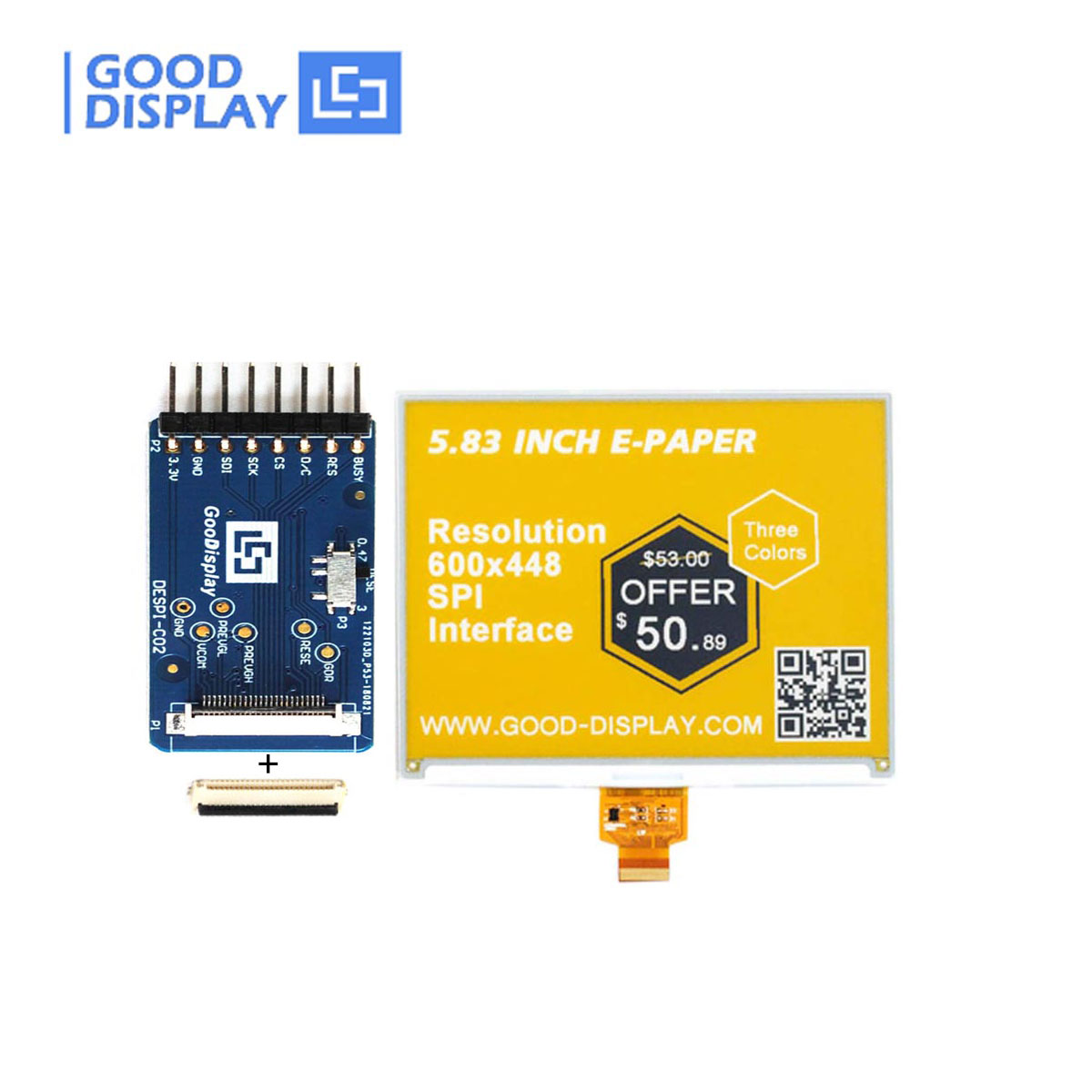

Package B		+		+
	a. 5.83 inch 3-color three colors yellow e-paper display eink screen module, GDEW0583C64 * 1pc		b. FPC Connector * 1pc		c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02* 1pc

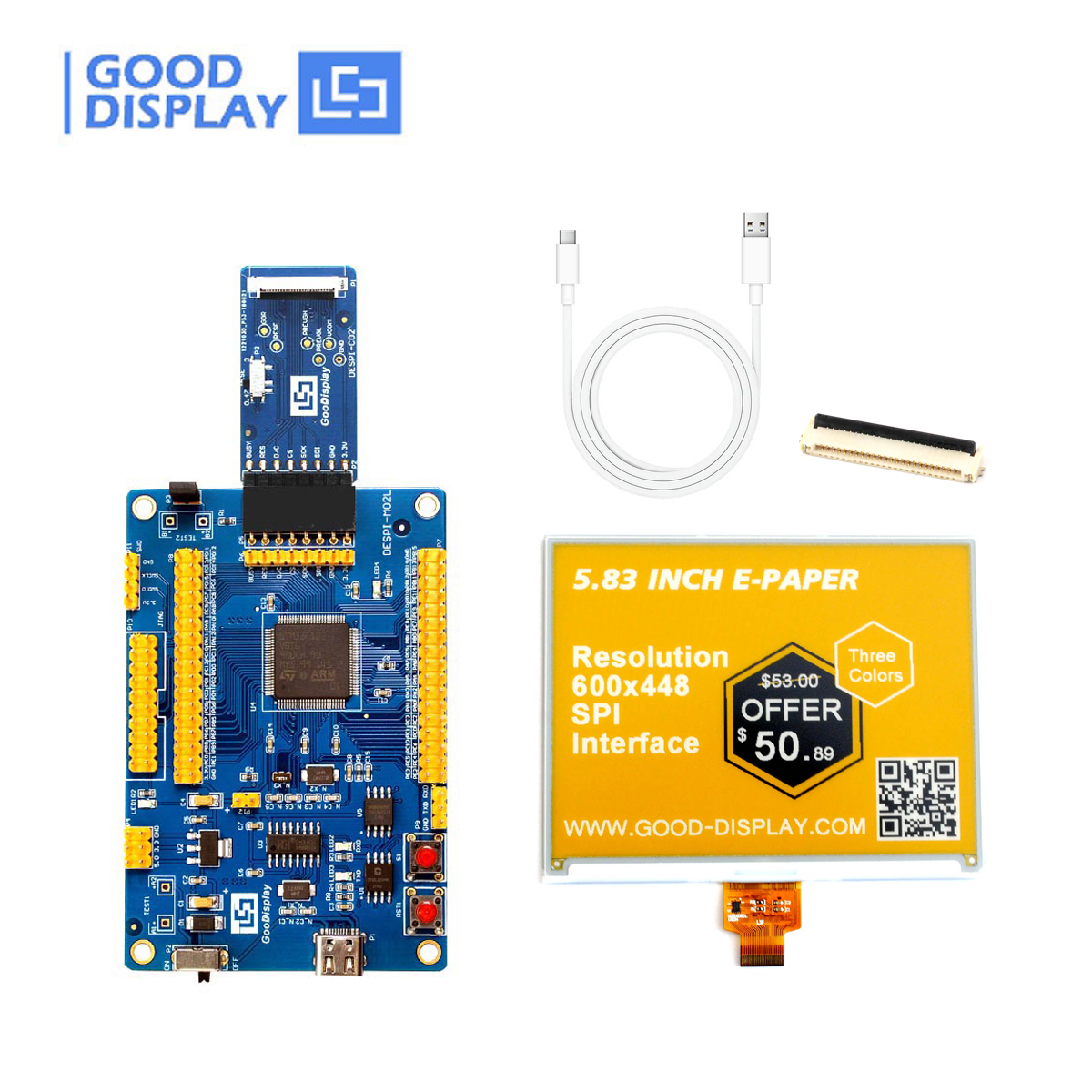

Package C		+		+		+
	a. 5.83 inch 3-color three colors yellow e-paper display eink screen module, GDEW0583C64 * 1pc		b. FPC Connector * 1pc		c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02)* 1pc		d. USB Cable* 1pc

Package D		+		+
	a. 5.83 inch 3-color three colors yellow e-paper display eink screen module, GDEW0583C64 * 1pc		b. FPC Connector * 1pc		c.Arduino E-paper Driving Board Type-C Interface EPD development kit, DEArduino-L(C02)* 1pc		d. USB Cable* 1pc
Package E		+		+
	a. 5.83 inch 3-color three colors yellow e-paper display eink screen module, GDEW0583C64 * 1pc		b. FPC Connector * 1pc		c. ESP8266 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP8266-L(C02)* 1pc		d. USB Cable* 1pc

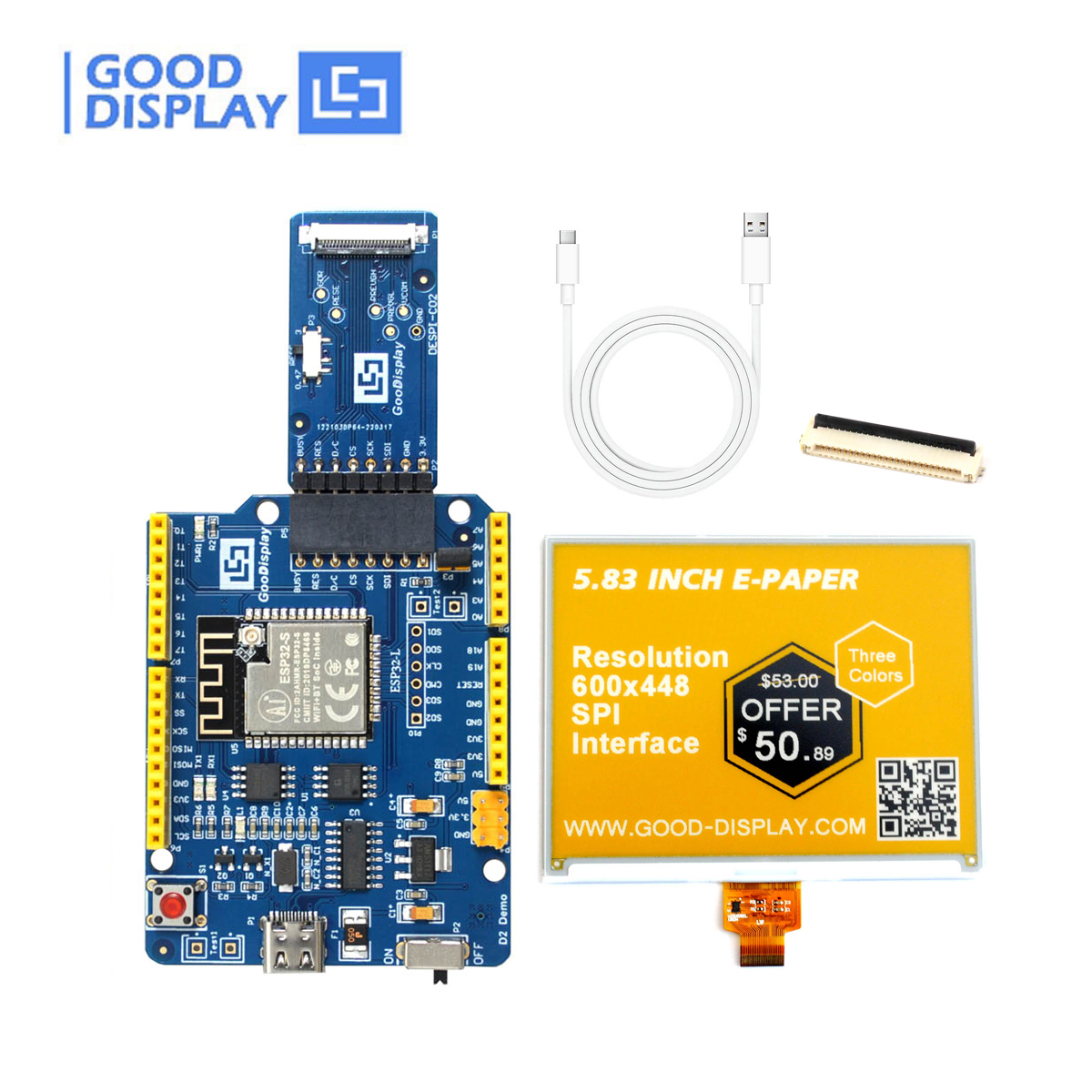

Package F		+		+		+
	a. 5.83 inch 3-color three colors yellow e-paper display eink screen module, GDEW0583C64 * 1pc		b. FPC Connector * 1pc		c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02)* 1pc		d. USB Cable* 1pc

☆ MAIN PARAMETERS

☆ FEATURE

●  Black and white monochrome is easy to read.
●  Versatile. Use in portrait or landscape format.
●  Bistable. (Will continue to display with no power source)
●  I2C Signal Master Interface to read external temperature sensor.
●  Color Optional. We also have other color for you to choose.

●  Development platform available STM32 / Arduino / Raspberry Pi / ESP8266 / ESP32



☆ DRAWING

☆ 5.83 INCH E-INK DISPLAY

☆ MATCHED DEVELOPMENT KIT

● DESPI-C02 (E-ink Display HAT)

● DESPI-L(C02) (STM32 Platform/Universal)


● ESP32-L(C02) (WiFi / Bluetooth)


● DEArduino-L(C02) (Arduino Platform)


● ESP8266-L(C02) (WiFi)

● DESPI-PICO (Rasberry Pi Epaper HAT)
