☆ INTRODUCTION

It consists of 2.7 inch touch eink epaper and its adapter board ESP32-T01. It is used on Arduino Platform. The 2.7 inch small e-ink display with capacitive touch screen, 264x176 resolution, SPI interface, and the display is capable to display images with black and white content. It supports 3s full refresh, 1.5s fast refresh and 0.42s partial refresh. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW027T91-T01 is perfect for low power devices powered by solar or batteries.

The epaper adapter board STM32-T01 is aim to help users to learen how to use the E-paper Display easier, and it is used for Good Display's SPI interface E-paper Display. It also has interface for touch screen. It can realize the collaboration of touch screen and e-paper display to facilitate the early debugging of customers.

Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

☆ THE ABOVE PRICE INCLUDE

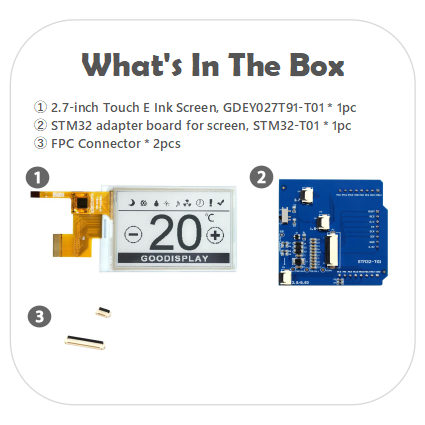

Package A		+
	a.  2.7 inch e-ink touch screen SPI interface China 4 Grayscale e-ink screen manufacturer with touch panel,GDEY027T91-T01 * 1pc		b. FPC Connector * 2pcs		c. Multifunction E-paper HAT connection STM32 adapter board, STM32-T01* 1pc

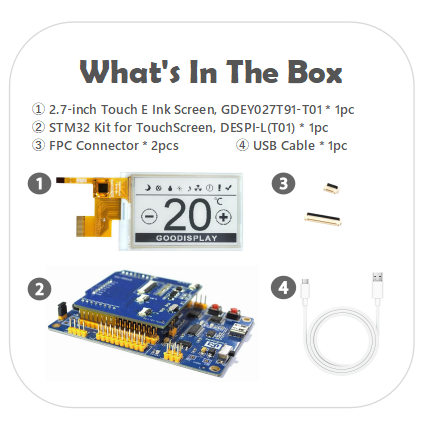

Package B		+		+
	a.  2.7 inch e-ink touch screen SPI interface China 4 Grayscale e-ink screen manufacturer with touch panel,GDEY027T91-T01 *2pcs		b. FPC Connector * 4pcs		c. STM32 development board Type-C interface ultra-low power consumption for touch e-ink epaper, DESPI-L(T01)* 1pc		d. USB Cable* 1pc
Package C		+		+
	a.  2.7 inch e-ink touch screen SPI interface China 4 Grayscale e-ink screen manufacturer with touch panel,GDEY027T91-T01 *2pcs		b. FPC Connector * 2pcs		c. Multifunction E-paper HAT connection ESP32 adapter board, ESP32-T01* 1pc

Package D		+		+		+
	a.  2.7 inch e-ink touch screen SPI interface China 4 Grayscale e-ink screen manufacturer with touch panel,GDEY027T91-T01 *2pcs		b. FPC Connector * 2pcs		c. ESP32 development board Type-C interface ultra-low power consumption for touch e-ink epaper, ESP32-L(T01)* 1pc		d. USB Cable* 1pc

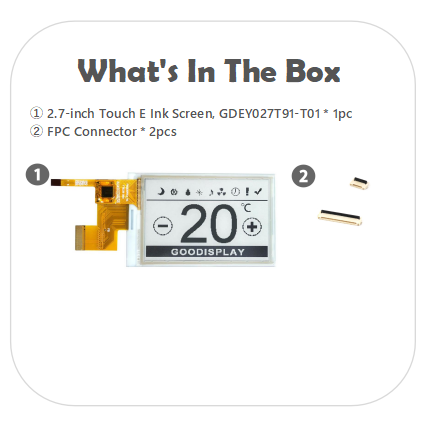

Package E		+
	a.  2.7 inch e-ink touch screen SPI interface China 4 Grayscale e-ink screen manufacturer with touch panel,GDEY027T91-T01 *1pcs		b. FPC Connector * 2pcs

☆ MAIN PARAMETERS

☆ FEATURE

●  Support 4 Grayscale
●  Support 1.5s fast refresh

●  With capacitive touch screen

●  Versatile. Use in portrait or landscape format

●  It supports partial refresh, the refresh rate is 0.42s/frame

●  Bistable. (Will continue to display with no power source)

●  I²C Signal Master Interface to read external temperature sensor

●  It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays


☆ DRAWING


☆ RELATED INFORMATION DOWNLOAD

● GDEY027T91-T01_Specification

● TP027-S01 Touch Screen Drawing

● Demo code for 2.7 inch touch panel FT6336

● GDEY027T91-T01 (E-Paper+Touch Screen) Drawing

● GDEY027T91-T01_STM32 Sample Code

● STM32-T01 Specification

● STM32-T01_SCH
