Name: Epaper HAT Connection Adapter Board for 7.3 inch 7-color E Ink Display
Brand: GOOD DISPLAY
SKU: DESPI-C73
Price: 6.99 USD
Availability: InStock

Description

		7.3-Inch & 4-Inch E-Paper HAT Adapter Board with Peripheral Boost Circuit
		The DESPI-C73 is a versatile E-Paper HAT adapter board designed to support 7.3-inch and 4-inch e-paper displays. It features a peripheral boost circuit for stable performance and supports seamless integration with various motherboards, including DESPI-M02L, ESP32-L, ESP8266-L, and Arduino UNO-L. With an SPI communication interface, the DESPI-C73 ensures reliable connectivity, making it a great design reference for product development.

Our product boasts distinctive features that set it apart from the competition

● Peripheral Boost Circuit: Integrated boost circuit for stable power delivery and enhanced display performance.
● Compatibility with Multiple Motherboards: Supports popular platforms like ESP32, Arduino UNO-L, and more, ensuring broad application potential.
● Reserved Boost Detection Points: Enables quick fault diagnosis, facilitating efficient troubleshooting during development.

		Technical Details
		Please refer to the product drawings for detailed dimensions

Please refer to the product specifications for more details

PARAMETER	DESPI-C73
IC	SI1308EDL, MBR0530
PLATFORM	STM32、Arduino
SCREEN FUNCTION	50PIN 0.5mm
OUTSIDE DIMENSION	47x32mm
DIP SWITCH	RESE resistor selection (3Ω, 0.47Ω)
COMMUNICATION INTERFACE	SPI
OPERATING VOLTAGE	3.3V
OPERATING TEMPERATURE	-20~70℃
SAMPLE CODE	(please contact sales)
MAIN FUNCTION	Provide driving voltage for e-paper; Provide interface for e-paper and motherboard; Help users operate e-paper quickly.
ADDITIONAL FUNCTION	Measurement of e-paper power consumption; Test of e-paper working condition.

	Compatible E6 E-INK

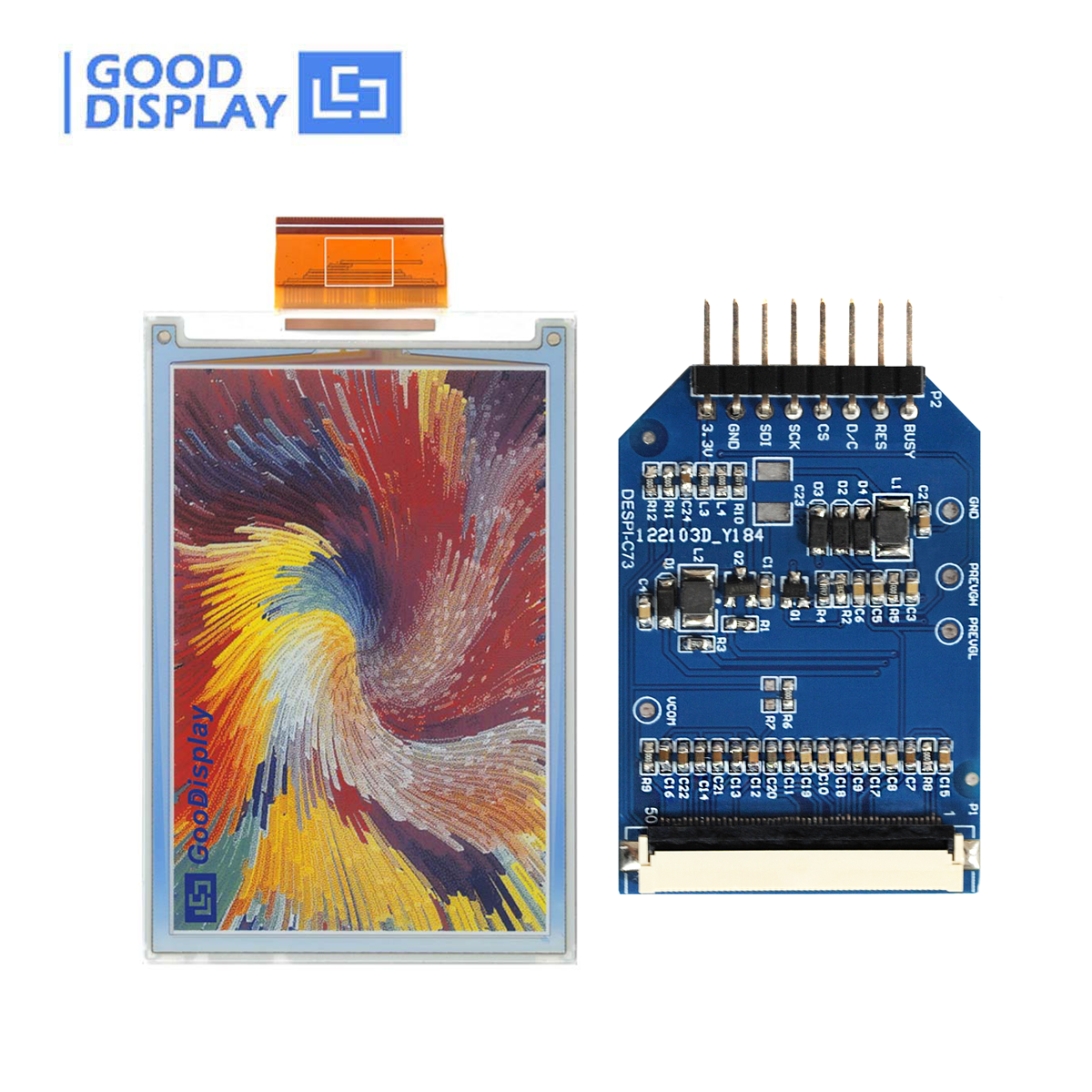

	E6 4-inch color ePaper Display E Ink Spectra 6 600x400 RESOLUTION, GDEP040E01		7.3-inch E6 color e-ink display high-saturation 800x480 ePaper display module, GDEP073E01

Related Information Download Click on the subheadings below to download

	● DESPI-C73 Specification	● DESPI-C73-SCH
