☆ INTRODUCTION

It consist of 1.54 inch 200x200 resolution suqare eink and its adapter board STM32-T01. It is used on Arduino Platform. The 1.54 inch e-ink display with capacitive touch screen, 200x200 resolution, SPI interface, and the display is capable to display images with black and white content. It supports 2s full screen update, 0.26s partial screen update. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This electronic paper display GDEY0154D67-T03 is perfect for low power devices powered by solar or batteries.

The epaper adapter board STM32-T01 is aim to help users to learen how to use the E-paper Display easier, and it is used for Good Display's SPI interface E-paper Display. It also has interface for touch screen. It can realize the collaboration of touch screen and e-paper display to facilitate the early debugging of customers.

Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

☆ THE ABOVE PRICE INCLUDE

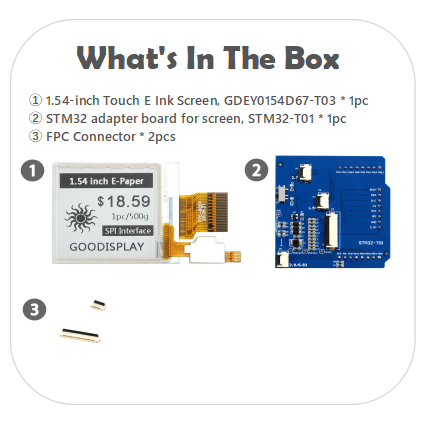

Package A		+		+
	a. 1.54 inch E-paper Display 200x200 Resolution Partial Screen Update Touch Eink Display,GDEY0154D67-T03 * 1pc		b. FPC Connector * 2pc		c. Multifunction E-paper HAT connection STM32 adapter board, STM32-T01* 1pc

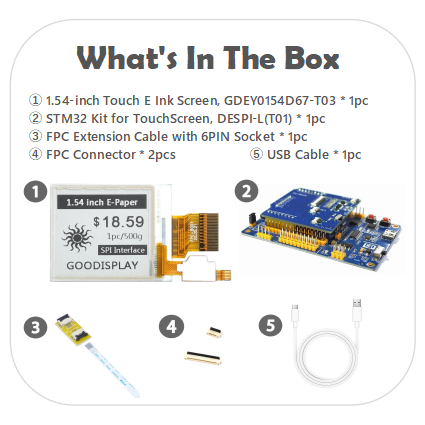

Package B		+		+
	a. 1.54 inch E-paper Display 200x200 Resolution Partial Screen Update Touch Eink Display,GDEY0154D67-T03 * 1pc		b. FPC Connector * 4pcs		c. STM32 development board Type-C interface ultra-low power consumption for touch e-ink epaper, DESPI-L(T01)* 1pc		d. USB Cable* 1pc
Package C		+		+
	a. 1.54 inch E-paper Display 200x200 Resolution Partial Screen Update Touch Eink Display,GDEY0154D67-T03 * 1pc		b. FPC Connector * 2pcs		c. Multifunction E-paper HAT connection ESP32 adapter board, ESP32-T01* 1pc

Package D		+		+		+
	a. 1.54 inch E-paper Display 200x200 Resolution Partial Screen Update Touch Eink Display,GDEY0154D67-T03 * 2pcs		b. FPC Connector * 4pcs		c. ESP32 development board Type-C interface ultra-low power consumption for touch e-ink epaper, ESP32-L(T01)* 1pc		d. USB Cable* 1pc

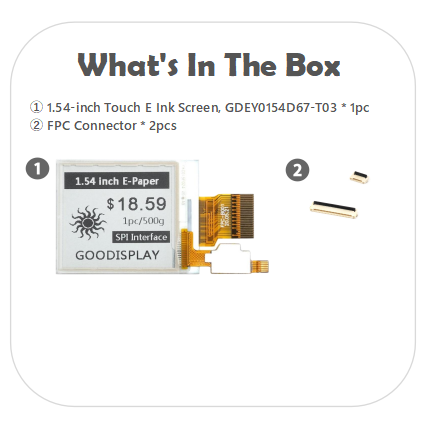

Package E		+
	a. 1.54 inch E-paper Display 200x200 Resolution Partial Screen Update Touch Eink Display,GDEY0154D67-T03 * 1pcs		b. FPC Connector * 2pcs

☆ MAIN PARAMETERS

●  With capacitive touch screen
●  Black and white monochrome is easy to read.
●  Versatile. Use in portrait or landscape format.
●  It supports partial refresh, the refresh rate is 0.26s/frame.

●  Bistable. (Will continue to display with no power source)

●  I²C Signal Master Interface to read external temperature sensor.


☆ DRAWING


☆ RELATED INFORMATION DOWNLOAD


● GDEY0154D67-T03_Specification

● STM32-T01 Specification


● STM32-T01_SCH
