Name: High-Resolution 2.9-Inch E Ink Display 384x168 Pixel Clarity with Vibrant 4-Color Support
Brand: GOOD DISPLAY
SKU: GDEY029F51H
Price: 8.90 USD
Availability: InStock
Rating: 5 (4 reviews)

Description

		High solution 2.9 Inch 4-Color E Ink Screen JD79667 Unveiled
		The powerhouse of pixel perfection with an impressive 384x168 resolution! This display isn't just about pixels—it's your canvas for dynamic visuals in black, white, and red that pop with personality. Imagine this: snap your image onto the screen, power down, and voilà! Your masterpiece stays put indefinitely, thanks to its innovative bistable technology. No power? No problem! This display holds onto your content like a champ, perfect for those off-the-grid moments powered by solar or batteries. Whether it's jazzing up smart gadgets, adding flair to signage, or bringing life to digital art, this ePaper marvel is your go-to for staying visually vibrant while keeping energy consumption minimal. Embrace the future of displays with style and eco-conscious ease—because sometimes, less power means more wow!

Our product boasts distinctive features that set it apart from the competition

● Color Blitz: Picture this—black, white, yellow, and red in one sleek package. It's like a color explosion that turns heads and steals the show!
● Power Nap Pro: Say goodbye to energy-sucking screens! Our bistable display holds your image even when the power takes a nap. No flicker, all power saver!
● Wide-Angle Wonder: From every angle—over 170 degrees, baby! Whether you're lounging horizontal or standing tall, the view is always spot-on. It's like the display has its own selfie mode.
● Green Machine: Eco-warriors, rejoice! No refresh means no power drain. It's the screen that keeps on ticking, powered by sunshine or battery juice. Mother Nature approved!
● Eye Candy: Blue light? Radiation? Nope, none of that here! With our glare-resistant hard coating, your peepers stay fresh and focused. It's like wearing stylish sunglasses for your eyes.
● Jack of All Trades: Need a smart tag? A shelf sensation? Maybe a home hub that's as smart as you? This screen does it all—smart, sharp, and always ready for its next gig.

		Technical Details
		Please refer to the product drawings for detailed dimensions

Please refer to the product specifications for more details

PART NUMBER	GDEY029F51H	CONNECTOR	24 Pin FPC
SIZE	2.9 inch	TYPE	Dot Matrix
IC	JD79667	MAX GRAYSCALE	2
RESOLUTION	384x168	COLOR	Black, White, Red, Yellow
OUTLINE SIZE(mm)	79.98x35.57x1.0	INTERFACE	SPI
ACTIVE SIZE(mm)	67.58x29.57	FULL REFRESH(s)	25
PIXEL PITCH(mm)	0.176x0.176	POWER CONSUMPTION OF THE REFRESH(mW)	9.9
OPERATING TEMP.	0℃~40℃	STANDBY POWER CONSUMPTION (mW)	0.003
STORAGE TEMP.	-25℃~70℃

Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

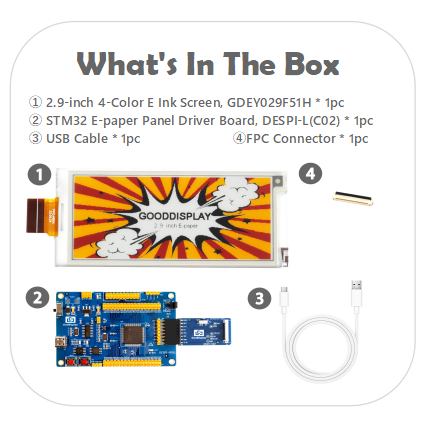

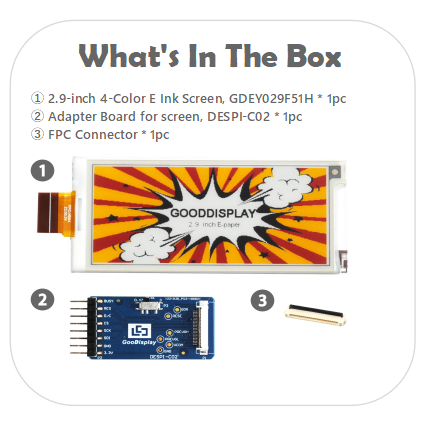

a. DESPI-C02 (E-ink Display adapter Board)	b. DESPI-L(C02) (STM32 Demo Kit)	c. DEArduino-L(C02) (Arduino Platform Demo Kit)

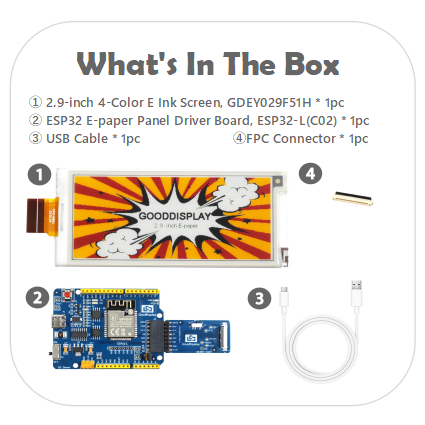

d. ESP8266-L(C02) (ESP8266 Demo Kit)	e. ESP32-L(C02) (ESP32 Demo Kit)	f. NFC-D3-029 (NFC Driver Board)

Related Information Download Click on the subheadings below to download

	● GDEY029F51H Specification	● GDEY029F51H ESP8266 Sample Code
	● JD79667 Driver IC Datasheet	● GDEY029F51H Arduino Sample Code
	● Picture Production and Bitmap Convert for GDEY029F51H	● The latest Catalog of ePaper display
	● GDEY029F51H STM32 Sample Code	● Why can't I download the files(updated)?
	● GDEY029F51H ESP32 Sample Code
