Name: ESP32 Epaper Board for 4-inch & 7.3 inch E6 color e-ink Display
Brand: GOOD DISPLAY
SKU: ESP32-L(C73)
Price: 14.58 USD
Availability: InStock

Description

		Supporting 4-inch & 7.3-inch E6 E-paper Display

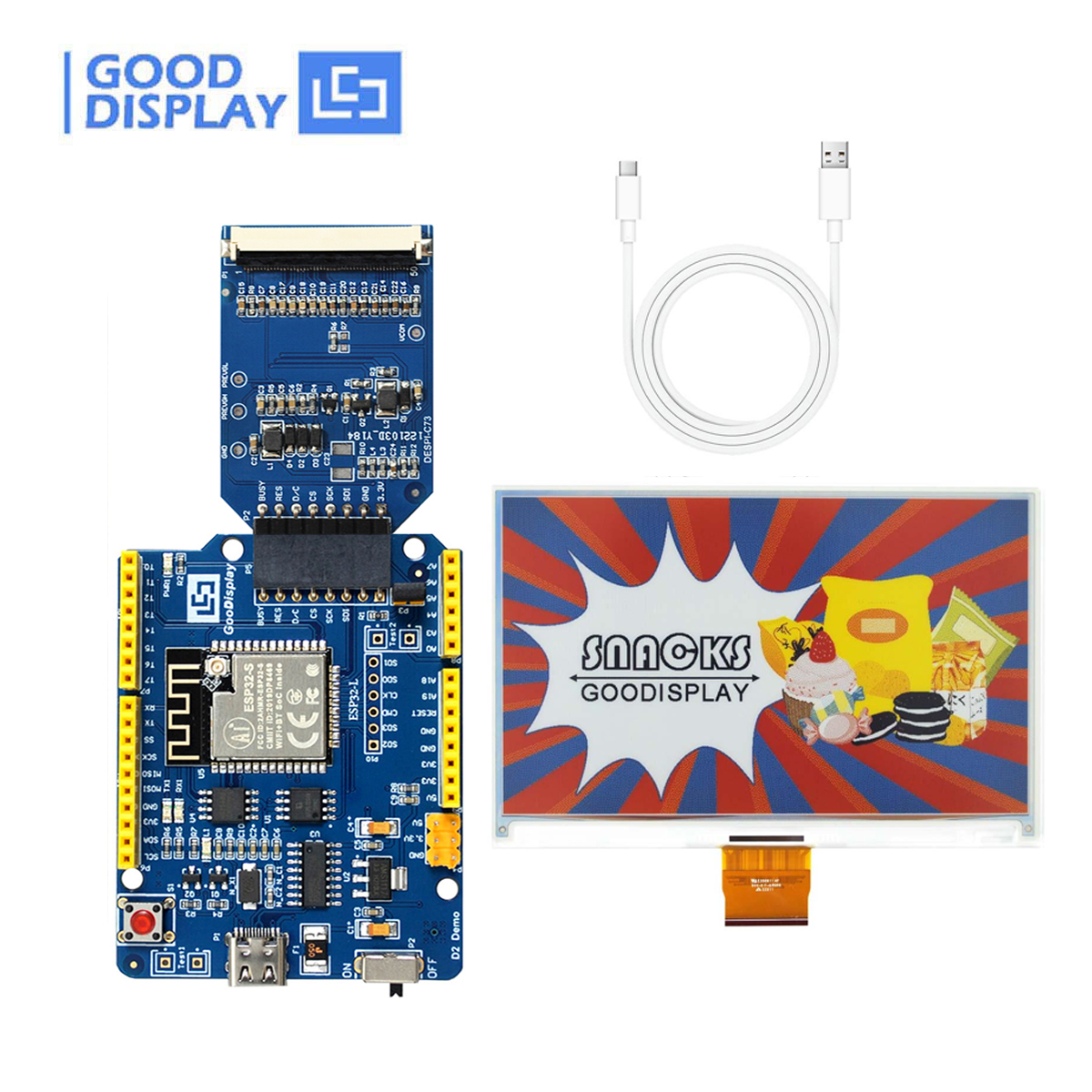

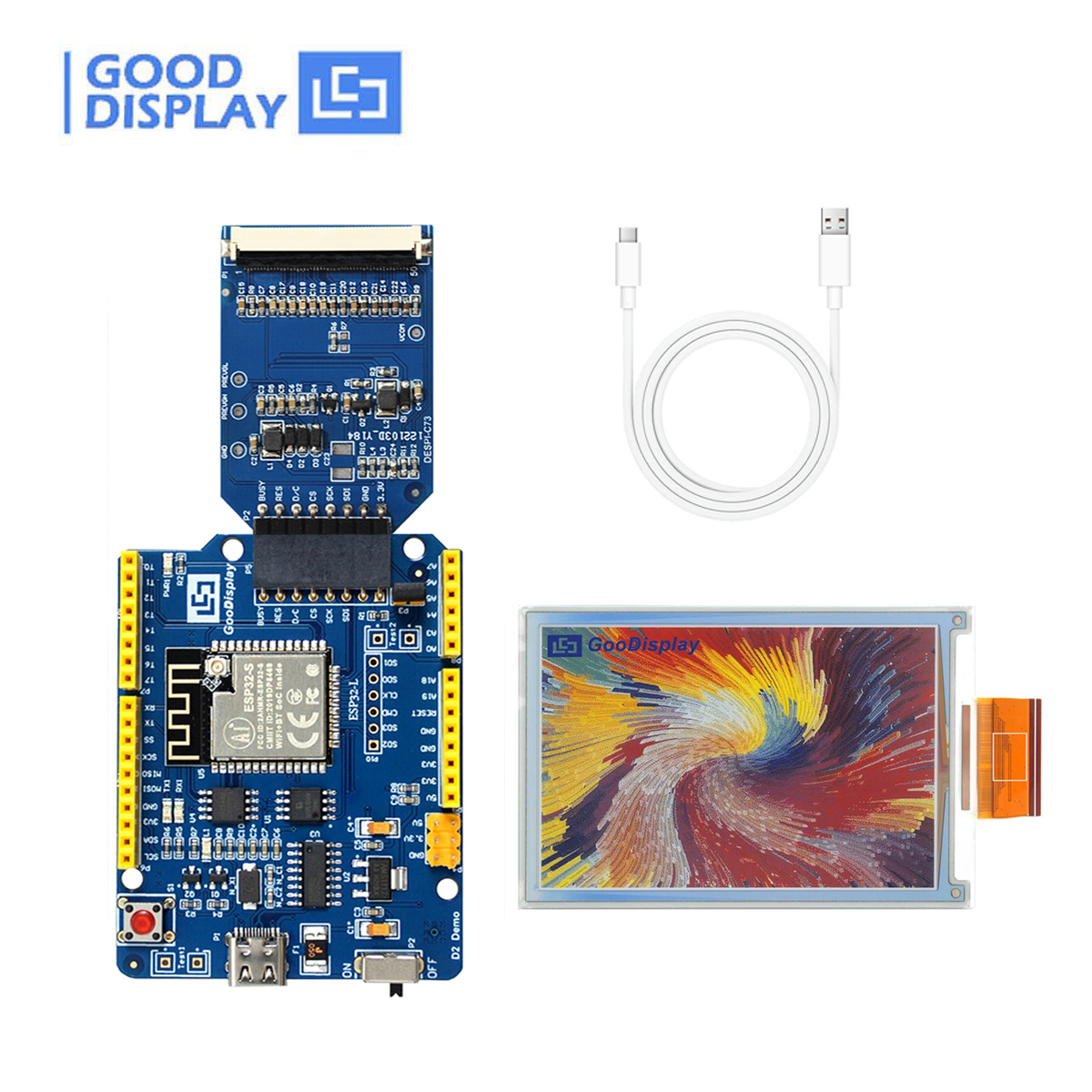

		ESP32-L evaluation kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It supports driving Good Display's SPI e-paper display. And it is added the functions of USB serial port and LED indicator light, Reset button, font chip, Flash chip and etc. ESP32-L(C73) development kit consists of motherboard ESP32-L for EPD and connector board DESPI-C 73.

		Special Features
		Our product boasts distinctive features that set it apart from the competition
		ESP32-L is an E-Paper display driver board based on ESP32, and ESP32 is a serial port WiFi+BT module. Compared with ESP8266, it adds Bluetooth function, and its processor speed is faster and power consumption is lower. Its internal integrated MCU can realize serial communication between single-chip computers; this module is easy to learn, small in size, and convenient for embedded development. ESP32 is specially designed for mobile devices, wearable electronic products and IoT applications, and achieves ultra-low power consumption through a number of proprietary technologies. The power saving mode of ESP32 is suitable for various low-power application scenarios. We can understand the ESP32 module as a single-chip microcomputer with WiFi and BT functions. When we use our own single-chip microcomputer to control, we only need to let the two single-chip microcomputers communicate with each other, the instructions are the same, and the corresponding operations are performed.

		Technical Details
		Please refer to the product drawings for detailed dimensions

Product Specifications

Please refer to the product specifications for more details

PARAMETER	ESP32-L(C73)
IC	ESP32-WROOM-32D
PLATFORM	Arduino
FUNCTION	Drive E-paper Display
SUITABLE SIZE	4", 7.3''
OUTSIDE DIMENSION	70x54mm (ESP32-L) 47x32mm (DESPI-C73)
INTERFACE	Type-C
POWER INPUT	DC5V
FEATURE	Support fully refresh, fast refresh and partial refresh
GRAYSCALE LEVEL	Max 16 Grayscale
OPERATING TEMP.	-20℃~70℃
RESERVED FUNCTION	Type-C, LED indicator, User-defined button, Reset button, Font chip, Flash chip, Current detection
MAIN FUNCTION	Learn to drive E-paper display; Test and evaluate e-paper display; Support secondary development

	Compatible E6 E-INK

	E6 4-inch color ePaper Display E Ink Spectra 6 600x400 RESOLUTION, GDEP040E01		7.3-inch E6 color e-ink display high-saturation 800x480 ePaper display module, GDEP073E01

Related Information Download Click on the subheadings below to download

	● ESP32-L(C73) Specification	● DESPI-C73 Specification
	● ESP32-L-SCH	● DESPI-C73-SCH

Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
