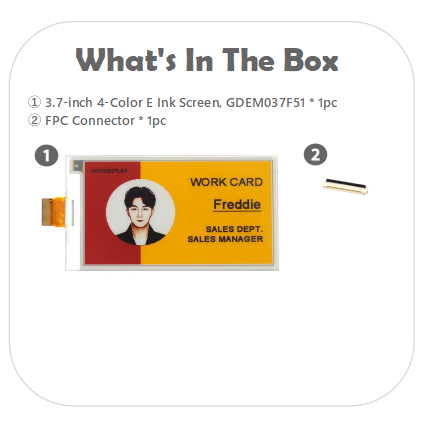

This is a 3.7 e-ink display, 416x240 resolution, SPI interface, and the display is capable to display images with 4 colors content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEM037F51 is perfect for low power devices powered by solar or batteries.
We provide the E-Ink Adapter Board for you to connect the E-paper Display.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
PART NUMBER |
GDEM037F51 |
||
TYPE |
Dot Matrix |
CONNECTOR | 24 Pin FPC |
SIZE |
3.7 inch |
IC | IST7163 |
RESOLUTION |
416x240 |
COLOR | Black, white, red, yellow |
OUTLINE SIZE(mm) |
92.99x53.00x1.0 |
INTERFACE | SPI |
OPERATING TEMP. | 0℃~40℃ | STORAGE TEMP. | -25℃~70℃ |
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
● Development platform available STM32 / ESP8266 / ESP32

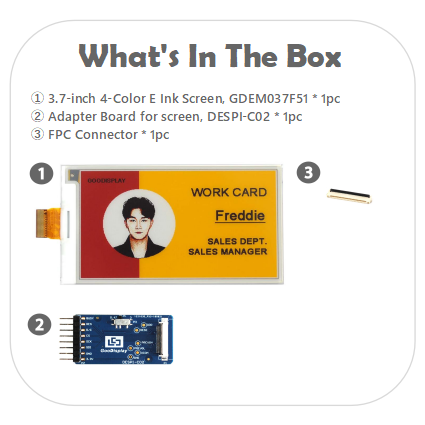

● DESPI-C02 (E-ink Display HAT)

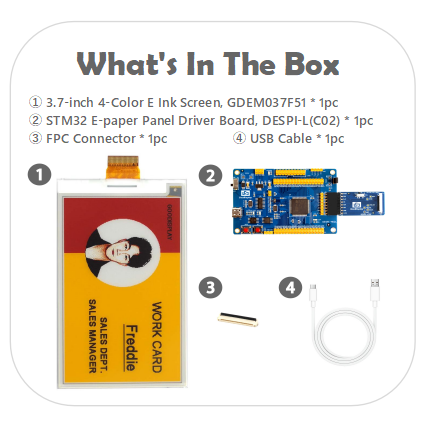

● DESPI-L(C02) (STM32 Platform/Universal)

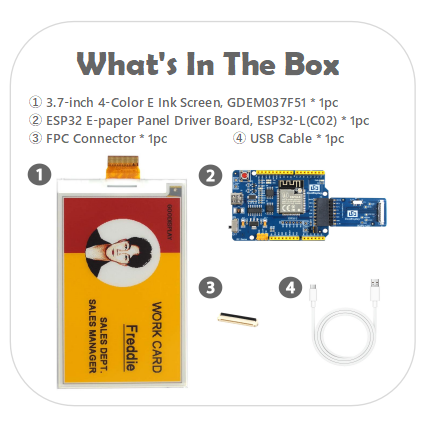

● ESP32-L(C02) (WiFi / Bluetooth)
☆ RELATED INFORMATION DOWNLOAD
Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
PART NUMBER | SIZE | COLOR | GREY SCALE | RESOLUTION | ACTIVE SIZE(mm) | FULL REFRESH TIME (S) | OPERATING TEMP. | PARTIAL REFRESH | FLEXIBLE | INTERFACE |
GDEW0102T4 | 1.02'' | BW | 2 | 128x80 | 21.76x14 | 3 | 0℃~50℃ | √ | SPI | |
GDEW0102I3F | 1.02'' | BW | 2 | 128x80 | 21.76x14 | 3 | 0℃~50℃ | √ | √ | SPI |
GDEW0154M10 | 1.54'' | BW | 2 | 152x152 | 27.512x27.512 | 3 | -20℃~60℃ | SPI | ||
GDEH0154D67 | 1.54'' | BW | 4 | 200x200 | 27x27 | 2 | 0℃~50℃ | √ | SPI | |
GDEW0154M09 | 1.54'' | BW | 2 | 200x200 | 27.6x27.6 | 0.82 | 0℃~50℃ | √ | SPI | |
GDEW0154T8D | 1.54'' | BW | 4 | 152x152 | 27.51x27.51 | 3 | 0℃~50℃ | √ | SPI | |
GDEH0154Z90 | 1.54'' | BWR | 2 | 200x200 | 27x27 | 15 | 0℃~40℃ | SPI | ||
GDEW0213M21 | 2.13'' | BW | 2 | 212x104 | 48.548x23.712 | 3 | -20℃~60℃ | SPI | ||
GDEW0213I5FD | 2.13'' | BW | 4 | 212x104 | 48.55x23.71 | 3 | 0℃~50℃ | √ | √ | SPI |
GDEM0213B74 | 2.13'' | BW | 4 | 250x122 | 48.55x23.7 | 3 | 0℃~50℃ | SPI | ||
GDEM0213U23 | 2.13'' | BWR | 2 | 250x122 | 23.67x48.50 | - | 0℃~25℃ | SPI | ||
GDEM0213D23 | 2.13'' | BW | 2 | 250x122 | 23.67x48.50 | - | 0℃~25℃ | SPI | ||
GDEW0213V7LT | 2.13'' | BW | 2 | 212x104 | 48.55x23.71 | 3 | -25℃~10℃ | √ | SPI | |
GDEY0213Z98 | 2.13'' | BWR | 2 | 250x122 | 48.55x23.7046 | 14 | 0℃~40℃ | SPI | ||
GDEW0213T5D | 2.13'' | BW | 4 | 212x104 | 48.55x23.71 | 3 | 0℃~50℃ | √ | SPI | |
GDEW0213T5D-FL01(With Frontlight) | 2.13'' | BW | 4 | 212x104 | 48.55x23.71 | 3 | 0℃~50℃ | √ | SPI | |
GDEW026T0D | 2.6'' | BW | 4 | 296x152 | 60.09x30.7 | 3 | 0℃~50℃ | √ | SPI | |
GDEW027W3 | 2.7'' | BW | 4 | 264x176 | 57.288x38.192 | 3 | 0℃~50℃ | √ | SPI | |
GDEW027W3-T(With Touch Panel) | 2.7'' | BW | 4 | 264x176 | 57.288x38.192 | 3 | 0℃~50℃ | √ | SPI | |
GDEM029E97 | 2.9'' | BW | 2 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | SPI | ||
GDEH029Z13 | 2.9'' | BWR | 2 | 296x128 | 66.9x29.06 | 15 | 0℃~40℃ | SPI | ||
GDEM029T94 | 2.9'' | BW | 4 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | √ | SPI | |
GDEY029T94 | 2.9'' | BW | 4 | 296x128 | 66.896x29.056 | 3 | 0℃~50℃ | √ | SPI | |
GDEW029M06 | 2.9'' | BW | 2 | 296x128 | 66.896x29.056 | 3 | -20℃~60℃ | SPI | ||
GDEW029I6FD | 2.9'' | BW | 4 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | √ | √ | SPI |
GDEW029T5D | 2.9'' | BW | 4 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | √ | SPI | |
GDEW029T5D-FL02(With Frontlight) | 2.9'' | BW | 4 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | √ | SPI | |
GDEH037Z01 | 3.71'' | BWR | 2 | 416x240 | 81.54x47.04 | 16 | 0℃~40℃ | SPI | ||
GDEW0371W7 | 3.71'' | BW | 2 | 416x240 | 81.536x47.04 | 4 | 0℃~50℃ | SPI |
PART NUMBER | SIZE | COLOR | GREY SCALE | RESOLUTION | ACTIVE SIZE(mm) | FULL REFRESH TIME (S) | OPERATING TEMP. | PARTIAL REFRESH | FLEXIBLE | INTERFACE |
GDEW042C37 | 4.2'' | BWY | 2 | 400x300 | 84.8x63.6 | 28 | 0℃~40℃ | SPI | ||
GDEW042T2 | 4.2'' | BW | 4 | 400x300 | 84.8x63.6 | 3 | 0℃~50℃ | SPI | ||
GDEY042T91 | 4.2'' | BW | 2 | 400x300 | 84.8x63.6 | 3 | 0℃~50℃ | SPI | ||
GDEQ042Z21 | 4.2'' | BWR | 2 | 400x300 | 84.8x63.6 | 19 | 0℃~40℃ | SPI | ||
GDEY0579T93 | 5.79'' | BW | 2 | 792x272 | 139.00×47.74 | 3 | 0℃~50℃ | SPI | ||
GDEY0579Z93 | 5.79'' | BWR | 2 | 792x272 | 139.00×47.74 | 20 | 0℃~40℃ | SPI | ||
GDEW0583C64 | 5.83'' | BWY | 2 | 600x448 | 118.80x88.26 | 25 | 0℃~40℃ | SPI | ||
GDEY0583T8 | 5.83'' | BW | 2 | 648x480 | 118.78x88.22 | 3 | 0℃~50℃ | SPI | ||
GDEW0583Z83 | 5.83'' | BWR | 2 | 648x480 | 119.232x88.32 | 12 | 0℃~40℃ | SPI | ||
GDEY075T7 | 7.5'' | BW | 4 | 800x480 | 163.2x97.72 | 3 | 0℃~50℃ | √ | SPI | |
GDEY075Z08 | 7.5'' | BWR | 2 | 800x480 | 163.2x97.72 | 12 | 0℃~40℃ | SPI | ||
GDEP097TC2 |
9.7'' |
BW |
16 |
1200x825 |
202.8x139.425 |
1 |
0℃~50℃ |
√ |
|
Parallel |
GDEQ102T90 | 10.2'' | BW | 2 | 960x640 | 215.52x143.68 | 4 | 0℃~50℃ | SPI | ||
GDEQ102Z90 | 10.2'' | BWR | 2 | 960x640 | 215.52x143.68 | 4 | 0℃~50℃ | SPI | ||
GDEH116T91 | 11.6'' | BW | 2 | 960x640 | 244.512x163.008 | 5 | 0℃~50℃ | SPI | ||
GDEH116Z91 | 11.6'' | BWR | 2 | 960x640 | 244.512x163.008 | 30 | 0℃~35℃ | SPI | ||
GDEY1248Z51 | 12.48'' | BWR | 2 | 1304x984 | 252.98x190.90 | 25 | 0℃~40℃ | SPI | ||
GDEP133UT3 | 13.3'' | BW | 16 | 1600x1200 | 270.4x202.8 | 1 | -15℃~65℃ | Parallel |
