Name: 3.5-inch ePaper four color E Ink screen 384x184, GDEM035F51
Brand: GOOD DISPLAY
Price: 10.14 USD
Availability: InStock

Description

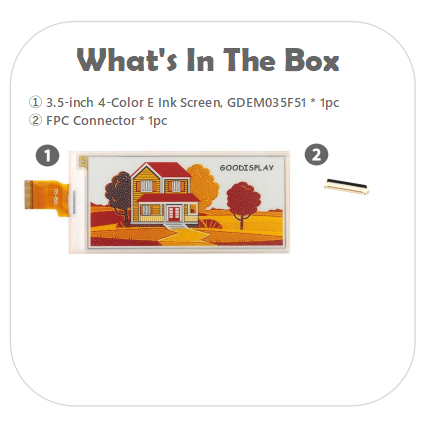

		3.5-inch ePaper four color E Ink screen 384x184

		This 3.5" e-ink display, with a resolution of 384x184, is perfect for smart home applications and industrial instruments. It can display images with 4 colors (Black, White, Red and Yellow) and holds the image indefinitely without power. Just set your image, shut down the power, and the content remains visible. Once updated, these e-paper modules don't need any power and can be disconnected, making them ideal for low-power devices powered by solar or batteries. The GDEM035F51 e-paper display is a great choice for energy-efficient setups in both smart homes and industrial settings.

		Special Features
		Our product boasts distinctive features that set it apart from the competition
		● Four-color Display: Supports black, white, red, and yellow colors. ● Features vibrant colors and the ability to achieve color mixing: This allows for enhanced visual appeal and richer display options, making it suitable for applications that require bright and diverse colors. ● Resolution: Features a resolution of 384x184 pixels. ● Viewing angle: Wide viewing angle exceeding 170 degrees. This wide viewing angle ensures that the content is easily readable from almost any direction, which is particularly beneficial for public displays or smart home devices where the screen might be viewed from various angles. ● Display feature: Bistable display (retains the current content after a power outage) ● Energy conservation: No power consumption when not refreshing the screen

Product Specifications

Please refer to the product specifications for more details

PART NUMBER	GDEM035F51	CONNECTOR	24 Pin 0.5mm
SIZE	3.5 inch	TYPE	Dot Matrix
IC	JD79667AA	OPERATING TEMP.	0℃~40℃
RESOLUTION	384x184	STORAGE TEMP.	-25℃~70℃
OUTLINE SIZE(mm)	91.75x45.03x1.0	COLOR	Black, White, Red, Yellow
ACTIVE SIZE(mm)	79.68x38.18	INTERFACE	SPI
PIXEL PITCH(mm)	0.2075x0.2075	FULL UPDATE TIME(s)	18

		Product Drawings
		Please refer to the product drawings for detailed dimensions

Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you. Click image to buy

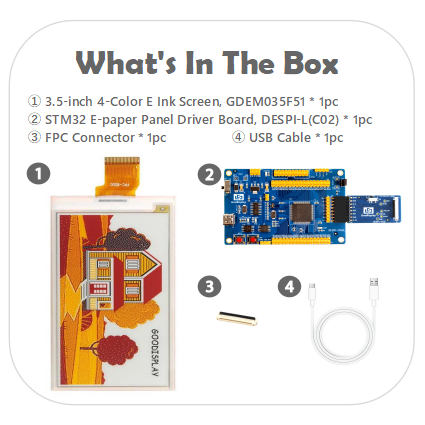

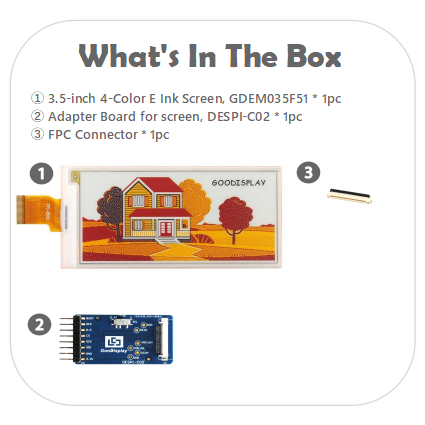

a.DESPI-C02 (E-ink Display adapter Board)	b.DESPI-L(C02) (STM32 Demo Kit)	c.DEArduino-L(C02) (Arduino Platform Demo Kit)

d.ESP8266-L(C02) (ESP8266 Demo Kit)	e.ESP32-L(C02) (ESP32 Demo Kit)

Related Information Download Click on the subheadings below to download

	● GDEM035F51 Specification	● GDEM035F51 ESP8266 Sample Code
	● GDEM035F51 STM32 Sample Code	● The latest Catalog of ePaper display
	● GDEM035F51 ESP32 Sample Code	● Disabling-Pop-Up-Blockers
	● GDEM035F51-Arduino Sample Code
