Name: Color E-ink Module 13.3-Inch High-saturation E Ink Spectra 6 QSPI Display
Brand: GOOD DISPLAY
SKU: GDEP133C02
Price: 289.00 USD
Availability: InStock
Rating: 5 (3 reviews)

Description

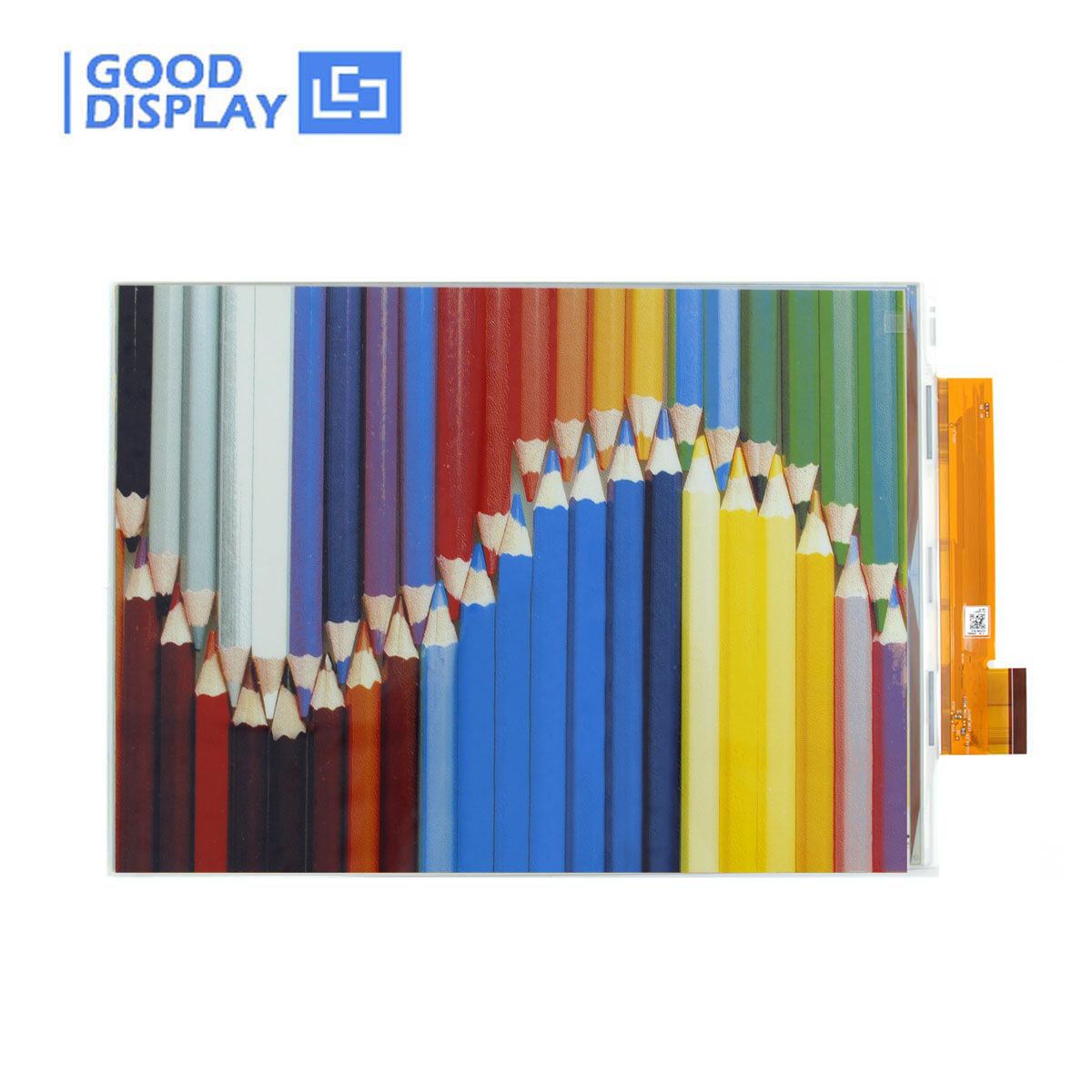

		13.3-Inch High-saturation Color E-ink Module E Ink Spectra 6 SPI Display

		The 13.3-inch high-saturation color E Ink Spectra 6 module offers a high-resolution display of 1600x1200 pixels, making it ideal for vibrant and visually appealing applications. Utilizing E Ink Spectra 6 technology, this bistable display maintains its image without power consumption, enhancing energy efficiency. It supports both horizontal and vertical orientations and features a wide viewing angle of over 170 degrees, with hard coating anti-glare treatment for optimal readability. Operating at 3.3V within a temperature range of 0℃ to 50℃, it is perfect for shelf labels, smart labels, smart home applications, and industrial instruments. Its pure reflective mode ensures excellent eye protection with no blue light or radiation, making it a sustainable and environmentally friendly display solution.

Our product boasts distinctive features that set it apart from the competition

● Introducing E Ink Spectra 6: the latest in color e-paper technology. With vibrant hues and lifelike saturation, it’s like bringing your favorite stories to life in full color! Dive into your reading with unparalleled realism.
● With a high resolution of 1600x1200, our color e-paper brings images to life with exquisite clarity, making every picture vivid and dynamic!
● Viewing angle: Wide viewing angle exceeding 170 degrees
● Display feature: Bistable display (retains the current content after a power outage)
● Energy conservation: No power consumption when not refreshing the screen

		Technical Details
		Please refer to the product drawings for detailed dimensions

Please refer to the product specifications for more details

PART NUMBER	GDEP133C02	CONNECTOR	60 PIN
SIZE	13.3 inch	TYPE	Dot Matrix
IC	NC	COLOR	6 color（E Ink Spectra 6）
RESOLUTION	1600x1200	OPERATING TEMP.	0℃~50℃
OUTLINE SIZE(mm)	208.8x284.7x0.85	STORAGE TEMP.	-25℃~50℃
ACTIVE SIZE(mm)	202.8x270.4	INTERFACE	QSPI
PIXEL PITCH(mm)	0.169x0.169

Related Information Download Click on the subheadings below to download

	● GDEP133C02-Specification

E Ink Display's Product Application

Furniture central	Smart Deskplate	Bus Stop Signs	Smart Logistics	Smart New Retail

Related Information Download Click on the subheadings below to download

	● GDEP133C02-Specification	● E Ink Spectra 6 (E6) design notice
	● Why can't I download the files(updated)?	● ePaper Display Usage Guidelines

WE ALSO SUGGEST
Click the image below to learn more about our products


E6 4-inch color ePaper Display E Ink Spectra 6 600x400 RESOLUTION, GDEP040E01	7.3-inch E6 color e-ink display high-saturation 800x480 ePaper display module, GDEP073E01	25.3 Inch Large e-paper Full-Color E Ink Display for Ad Boards and Information Signage, GDEP253C02	31.5-inch high-saturation color e-ink module (E Ink Spectra 6) SPI display with a resolution of 2560x1440, GDEP315C01

Matching Driver Board

To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

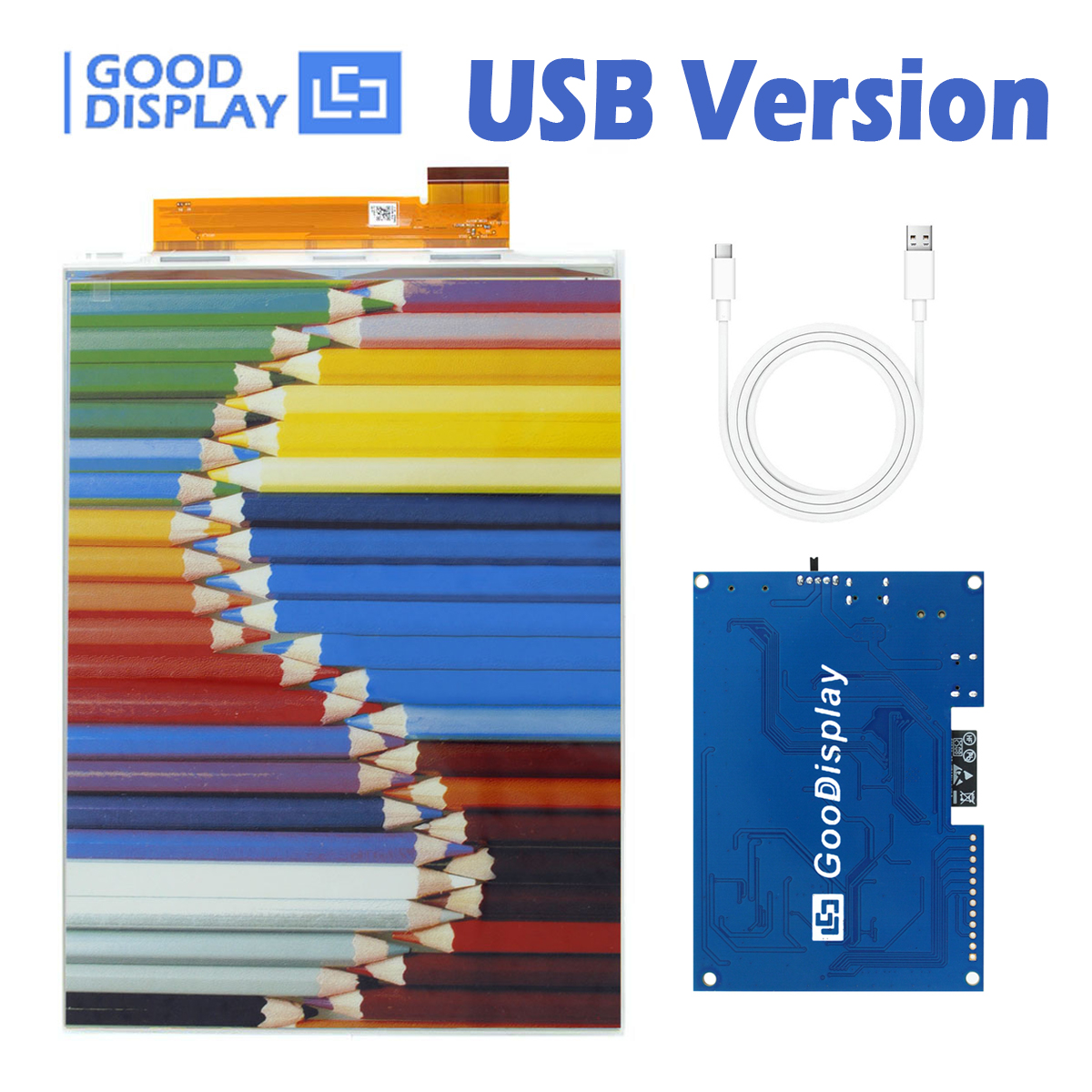

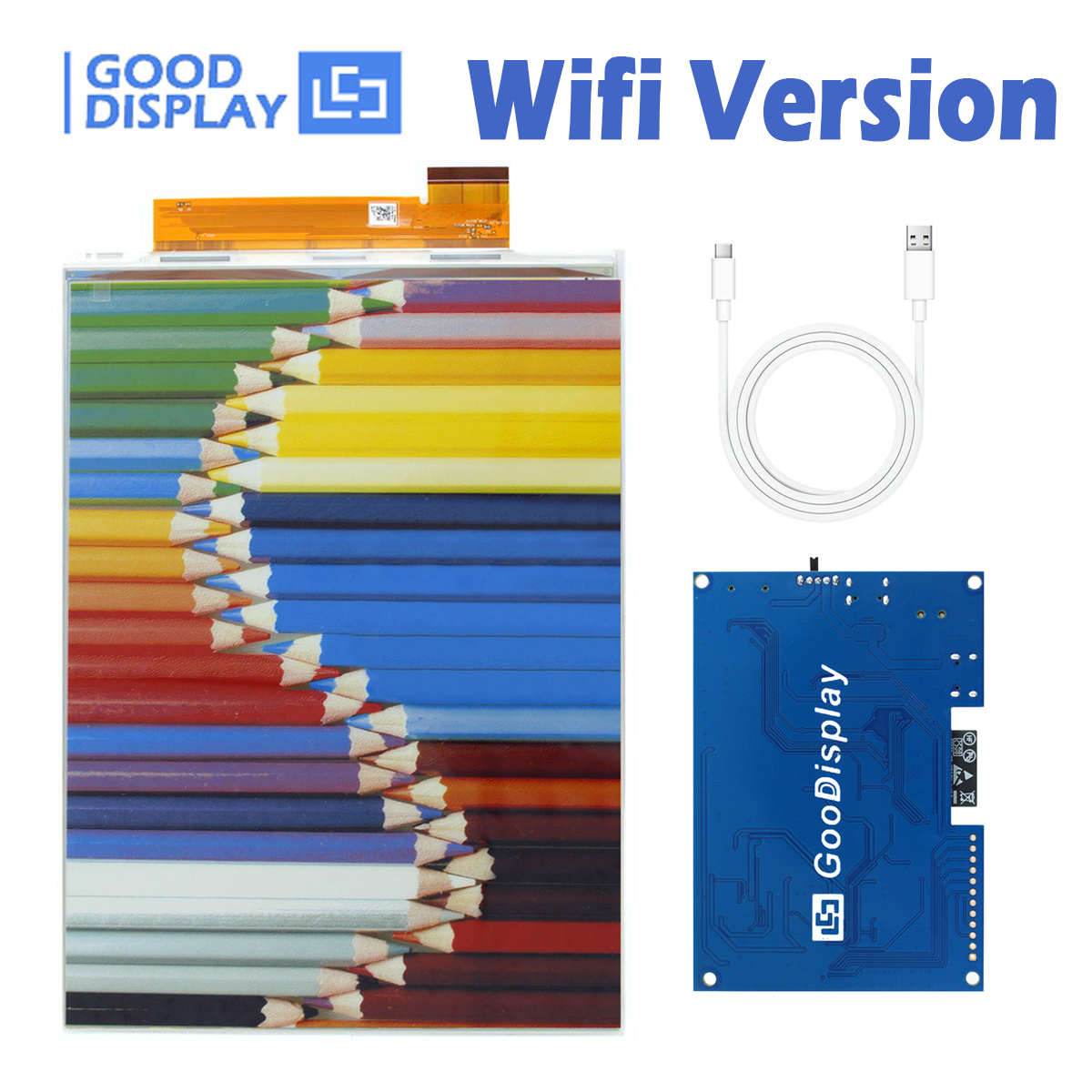

a. ESP32-133C02 (E6 Series Color Display Demo Kit)

Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].
