☆ INTRODUCTION
This is a 1.54 inch small e-ink display 4 Grayscale display panel with 6 pins FPC frontlight, 200x200 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-ink modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-ink display GDEY0154D67-FL04 is perfect for low power devices powered by solar or batteries, and it can be used in dark environment.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
* Note: We can customize the OTP code to make the refresh time of this 1.54 inch e-paper display GDEY0154D67 reach to 1.5s, if you need, please contact us.

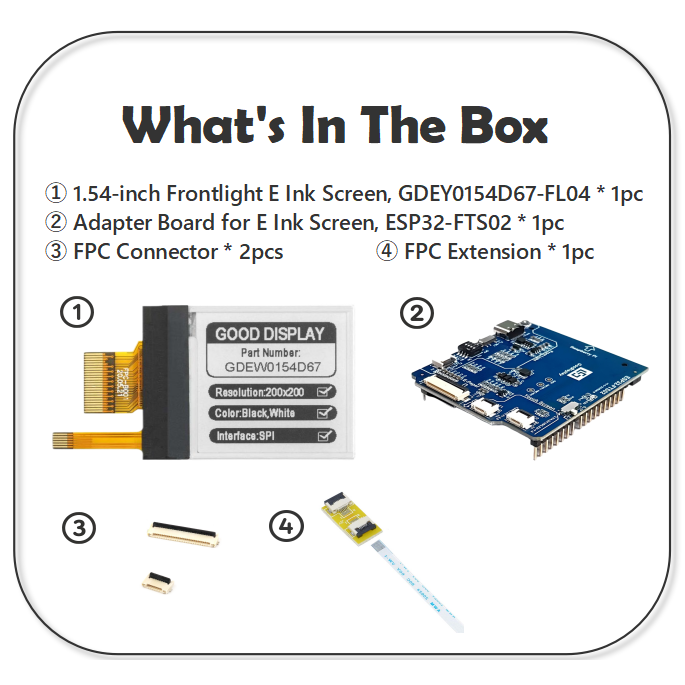

☆ THE ABOVE PRICE INCLUDE

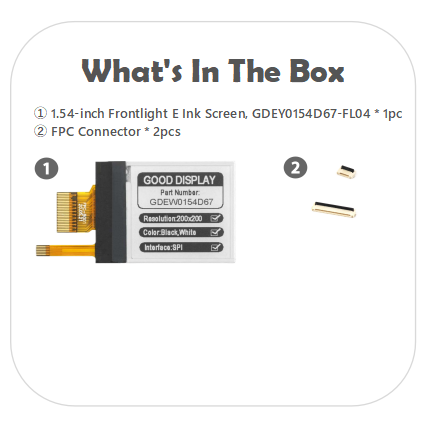

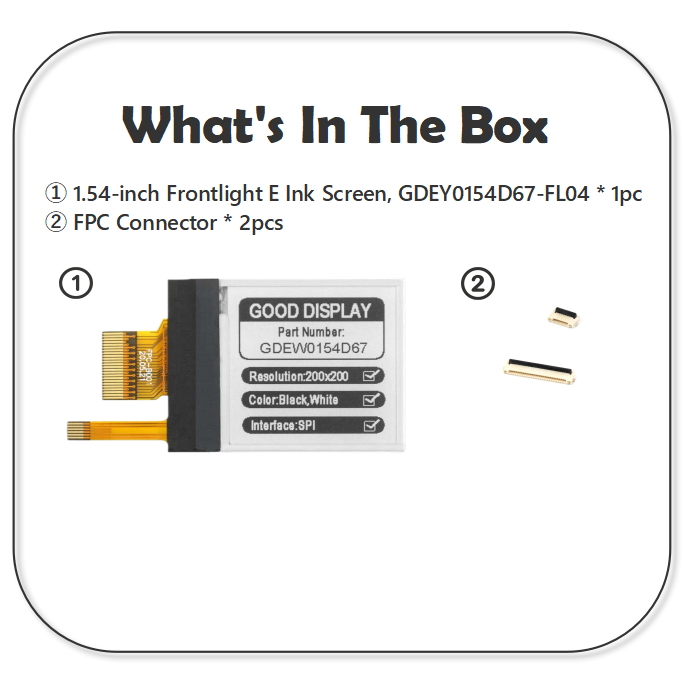

Package A | + | ||||||||
a. 1.54 inch small e-ink display with frontlight 4 Grayscale display panel, GDEY0154D67-FL04 * 1pc | b. FPC Connector * 2pcs | ||||||||
|
|||||||||

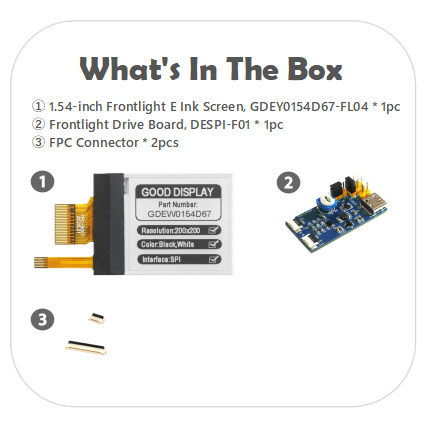

Package B | + | + | |||||||
a. 1.54 inch small e-ink display with frontlight 4 Grayscale display panel, GDEY0154D67-FL04 * 1pc | b. FPC Connector * 2pcs | c. Epaper HAT Connection Adapter Board Frontlight Drive Board, DESPI-F01* 1pc | |||||||
|
|||||||||

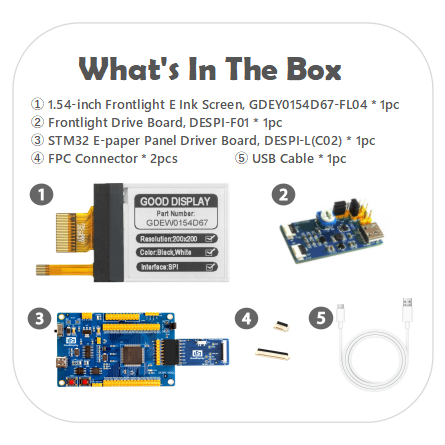

Package D | + | + | + | ||||||
a. 1.54 inch small e-ink display with frontlight 4 Grayscale display panel, GDEY0154D67-FL04 * 2pcs | b. FPC Connector * 4pcs | c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02)* 1pc | d. USB Cable* 1pc | ||||||
|

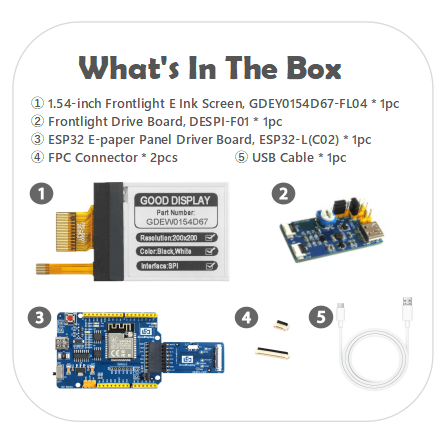

Package E | + | + | + | ||||
a. 1.54 inch small e-ink display with frontlight 4 Grayscale display panel, GDEY0154D67-FL04 * 2pcs | b. FPC Connector * 4pcs | c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02)* 1pc | d. USB Cable* 1pc |
PART NUMBER | GDEY0154D67-FL04 | ||
SIZE | 1.54 inch | MAX GRAYSCALE | 4 |
DISPLAY FORMAT | 200x200 | CHANNEL NUMBER | 14 |
IC OF EPD | SSD1681 | CONNECTOR OF EPD | 24 Pin FPC |
ACTIVE AREA(mm) | 27x27 | CONNECTOR OF TOUCH PANEL | 6 Pin FPC |
OUTLINE DIMENSION(mm) | 37.32x31.8x1.525 | FULL REFRESH(s) | 2 |
STORAGE ENVIRONMENT | -20℃~70℃, ≤90%RH | PARTIAL REFRESH TIME(s) | 0.26 |
OPERATING ENVIRONMENT | 0℃~50℃, ≤90%RH | COLOR | Black, White |
OPERATING VOLTAGE(V) | 2.8V~3.3V |
● Customizable 1.5s Fast Refresh
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
● DESPI-L(C02) (STM32 Platform/Universal)
● DEArduino-L(C02) (Arduino Platform)
● ESP32-L(C02) (WiFi / Bluetooth)
● DESPI-C02 (Rasberry Pi Epaper HAT)
☆ RELATED INFORMATION DOWNLOAD
● GDEY0154D67-FL04-CAD
● FL0154-L04-CAD
