This is a 1.54 inch e-ink display with capacitive touch screen, 200x200 resolution, SPI interface, and the display is capable to display images with black and white content. It supports 2s full screen update, 0.26s partial screen update. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This electronic paper display GDEY0154D67-T03 is perfect for low power devices powered by solar or batteries.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
* Note: We can customize the OTP code to make the refresh time of this 1.54 inch e-paper display GDEY0154D67 reach to 1.5s, if you need, please contact us.

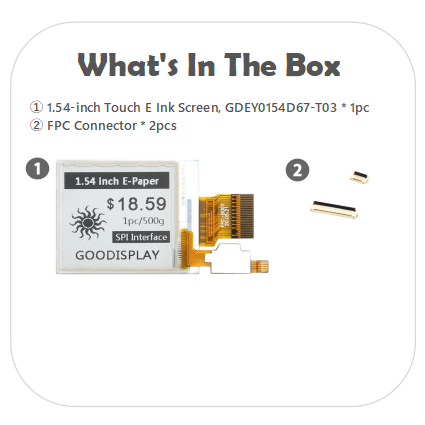

Package A | + | ||||||||
a. 1.54 inch E-paper Display 200x200 Resolution Partial Screen Update Touch Eink Display,GDEY0154D67-T03 * 1pc | b. FPC Connector * 2pc | ||||||||
|
|||||||||

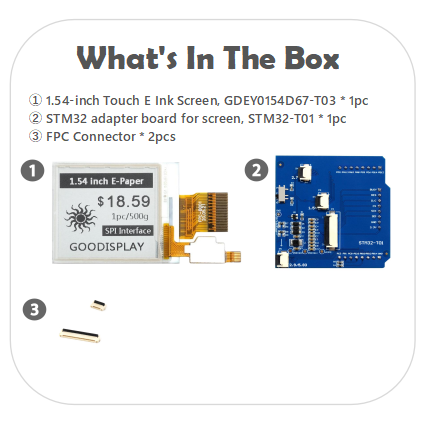

Package B | + | + | |||||||
a. 1.54 inch E-paper Display 200x200 Resolution Partial Screen Update Touch Eink Display,GDEY0154D67-T03 * 1pc | b. FPC Connector * 2pcs | c. Multifunction E-paper HAT connection STM32 adapter board, STM32-T01* 1pc | |||||||
|
|||||||||

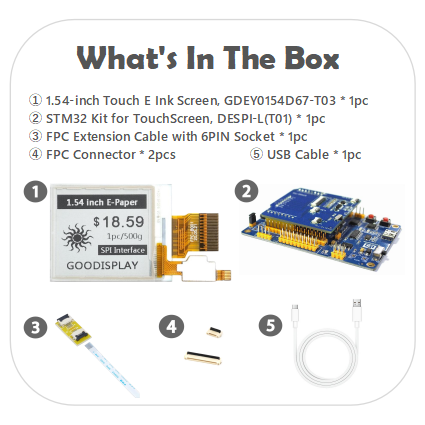

Package C | + | + | + | ||||||
a. 1.54 inch E-paper Display 200x200 Resolution Partial Screen Update Touch Eink Display,GDEY0154D67-T03 * 2pcs | b. FPC Connector * 4pcs | c. STM32 development board Type-C interface ultra-low power consumption for touch e-ink epaper, DESPI-L(T01)* 1pc | d. USB Cable* 1pc | ||||||
|

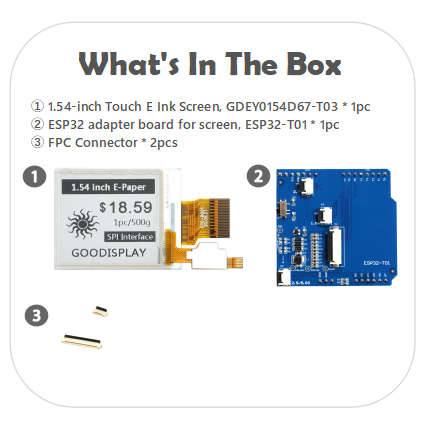

Package D | + | + | |||||
a. 1.54 inch E-paper Display 200x200 Resolution Partial Screen Update Touch Eink Display,GDEY0154D67-T03 * 1pc | b. FPC Connector * 2pcs | c. Multifunction E-paper HAT connection ESP32 adapter board, ESP32-T01* 1pc | |||||
|
|||||||

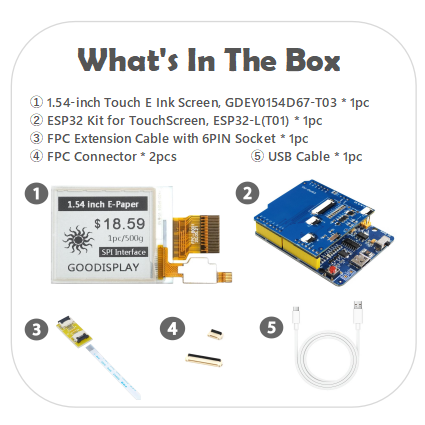

Package E | + | + | + | ||||
a. 1.54 inch E-paper Display 200x200 Resolution Partial Screen Update Touch Eink Display,GDEY0154D67-T03 * 2pcs | b. FPC Connector * 4pcs | c. ESP32 development board Type-C interface ultra-low power consumption for touch e-ink epaper, ESP32-L(T01)* 1pc | d. USB Cable* 1pc |
PART NUMBER | GDEY0154D67-T03 | ||
SIZE | 1.54 inch | MAX GRAYSCALE | 4 |
DISPLAY FORMAT | 200x200 | CHANNEL NUMBER | 14 |
IC OF EPD | SSD1681 | CONNECTOR OF EPD | 24 Pin FPC |
IC OF TOUCH PANEL | FT6336U | CONNECTOR OF TOUCH PANEL | 6 Pin FPC |
OUTLINE DIMENSION(mm) | 37.32x31.8x1.525 | FULL REFRESH(s) | 2 |
ACTIVE AREA(mm) | 27x27 | PARTIAL REFRESH TIME(s) | 0.26 |
OPERATING ENVIRONMENT | 0℃~50℃, ≤90%RH | COLOR | Black, White |
STORAGE ENVIRONMENT | -20℃~70℃, ≤90%RH | WORKING VOLTAGE(V) | 2.8V~3.3V |
● Customizable 1.5s Fast Refresh
● With capacitive touch screen
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● It supports partial refresh, the refresh rate is 0.26s/frame.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
● DESPI-L(C02) (STM32 Platform/Universal)
● DEArduino-L(C02) (Arduino Platform)
● ESP32-L(C02) (WiFi / Bluetooth)
● DESPI-C02 (Rasberry Pi Epaper HAT)
☆ RELATED INFORMATION DOWNLOAD
● GDEY0154D67-T03_Specification
● IC Driver FT6336U Datasheet
● GDEY0154D67-T03 Drawing
● GDEY0154D67-T03 ESP32 Sample Code
● GDEY0154D67-T03 STM32 Sample Code
● 1.54 inch Touch Screen Sample Code
● Touch Panel Drawing for 1.54 inch E-paper Display
☆ WE ALSO SUGGEST...
Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
PART NUMBER | SIZE | COLOR | RESOLUTION | ACTIVE SIZE(mm) | FULL UPDATE(S) | OPERATING TEMP. | PARTIAL UPDATE | FLEXIBLE |
GDEW0097T50 | 0.97'' | BW | 184x88 | 22.264x10.648 | 4 | 0℃~50℃ | √ | |
GDEW0097C50 | 0.97'' | BWY | 184x88 | 22.264x10.648 | 22 | 0℃~40℃ | ||
GDEW0102T4 | 1.02'' | BW | 128x80 | 21.76x14 | 3 | 0℃~50℃ | √ | |
GDEW0102I3F | 1.02'' | BW | 128x80 | 21.76x14 | 3 | 0℃~50℃ | √ | √ |
1.02'' |
BW |
128x80 |
21.76x14 |
3 |
0℃~50℃ |
√ |
√ |
|
GDEW0154M10 | 1.54'' | BW | 152x152 | 27.512x27.512 | 3 | -10℃~60℃ | ||
GDEY0154D67 | 1.54'' | BW | 200x200 | 27x27 | 2 | 0℃~50℃ | √ | |
GDEW0154T8D | 1.54'' | BW | 152x152 | 27.51x27.51 | 3 | 0℃~50℃ | √ | |
GDEY0154Z90 | 1.54'' | BWR | 200x200 | 27x27 | 16 | 0℃~40℃ | ||
GDEW0154I9FC | 1.54'' | BW | 152x152 | 27.51x27.51 | 3 | 0℃~50℃ | √ | √ |
GDEW0213I5FD | 2.13'' | BW | 212x104 | 48.55x23.71 | 3 | 0℃~50℃ | √ | √ |
GDEY0213B74 | 2.13'' | BW | 250x122 | 48.55x23.7046 | 3 | 0℃~50℃ | √ | |
GDEY0213Z98 | 2.13'' | BWR | 250x122 | 48.55x23.7046 | 14 | 0℃~40℃ | ||
GDEW0213T5D | 2.13'' | BW | 212x104 | 48.55x23.71 | 3 | 0℃~50℃ | √ | |
GDEW026T0D | 2.6'' | BW | 296x152 | 60.09x30.7 | 3 | 0℃~50℃ | √ | |
GDEY0266T90 | 2.66'' | BW | 296x152 | 60.088x30.704 | 3 | 0℃~50℃ | √ | |
GDEY0266Z90 | 2.66'' | BWR | 296x152 | 60.088x30.704 | 12 | 0℃~40℃ | ||
GDEY027T91 | 2.7'' | BW | 264x176 | 57.29x38.19 | 3 | 0℃~50℃ | √ | |
GDEY029T94 | 2.9'' | BW | 296x128 | 66.896x29.056 | 3 | 0℃~50℃ | √ | |
GDEY029Z94 | 2.9'' | BWR | 296x128 | 66.896x29.056 | 12 | 0℃~40℃ | ||
GDEW029I6FD | 2.9'' | BW | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | √ | √ |
GDEQ031T10 | 3.1'' | BW | 320x240 | 62.72x47.04 | 3 | 0℃~50℃ | √ | |
GDEY037Z03 | 3.71'' | BWR | 416x240 | 81.54x47.04 | 12 | 0℃~40℃ | ||
GDEY037T03 | 3.71'' | BW | 416x240 | 81.54x47.04 | 3 | 0℃~50℃ |
PART NUMBER | SIZE | COLOR | RESOLUTION | ACTIVE SIZE(mm) | FULL UPDATE (S) | OPERATING TEMP. | PARTIAL REFRESH | FLEXIBLE |
GDEW042C37 | 4.2'' | BWY | 400x300 | 84.8x63.6 | 28 | 0℃~40℃ | ||
GDEW042T2 | 4.2'' | BW | 400x300 | 84.8x63.6 | 3 | 0℃~50℃ | √ | |
GDEY042T91 | 4.2'' | BW | 400x300 | 84.8x63.6 | 3 | 0℃~50℃ | √ | |
GDEQ042Z21 | 4.2'' | BWR | 400x300 | 84.8x63.6 | 19 | 0℃~40℃ | ||
GDEY0579T93 | 5.79'' | BW | 792x272 | 139.00×47.74 | 3 | 0℃~50℃ | ||
GDEY0579Z93 | 5.79'' | BWR | 792x272 | 139.00×47.74 | 20 | 0℃~40℃ | ||
GDEW0583C64 | 5.83'' | BWY | 600x448 | 118.80x88.26 | 25 | 0℃~40℃ | ||
GDEY0583T8 | 5.83'' | BW | 648x480 | 118.78x88.22 | 3 | 0℃~50℃ | ||
GDEW0583Z83 | 5.83'' | BWR | 648x480 | 119.232x88.32 | 12 | 0℃~40℃ | ||
GDEY075T7 | 7.5'' | BW | 800x480 | 163.2x97.72 | 3 | 0℃~50℃ | √ | |
GDEY075Z08 | 7.5'' | BWR | 800x480 | 163.2x97.72 | 12 | 0℃~40℃ | ||
GDEP097TC2 |
9.7'' |
BW |
1200x825 |
202.8x139.425 |
1 |
0℃~50℃ |
√ |
|
GDEQ102T90 | 10.2'' | BW | 960x640 | 215.52x143.68 | 4 | 0℃~50℃ | ||
GDEQ102Z90 | 10.2'' | BWR | 960x640 | 215.52x143.68 | 4 | 0℃~50℃ | ||
GDEH116T91 | 11.6'' | BW | 960x640 | 244.512x163.008 | 5 | 0℃~50℃ | ||
GDEH116Z91 | 11.6'' | BWR | 960x640 | 244.512x163.008 | 30 | 0℃~35℃ | ||
GDEY1248Z51 | 12.48'' | BWR | 1304x984 | 252.98x190.90 | 25 | 0℃~40℃ | ||
GDEP133UT3 | 13.3'' | BW | 1600x1200 | 270.4x202.8 | 1 | -15℃~65℃ | √ |
