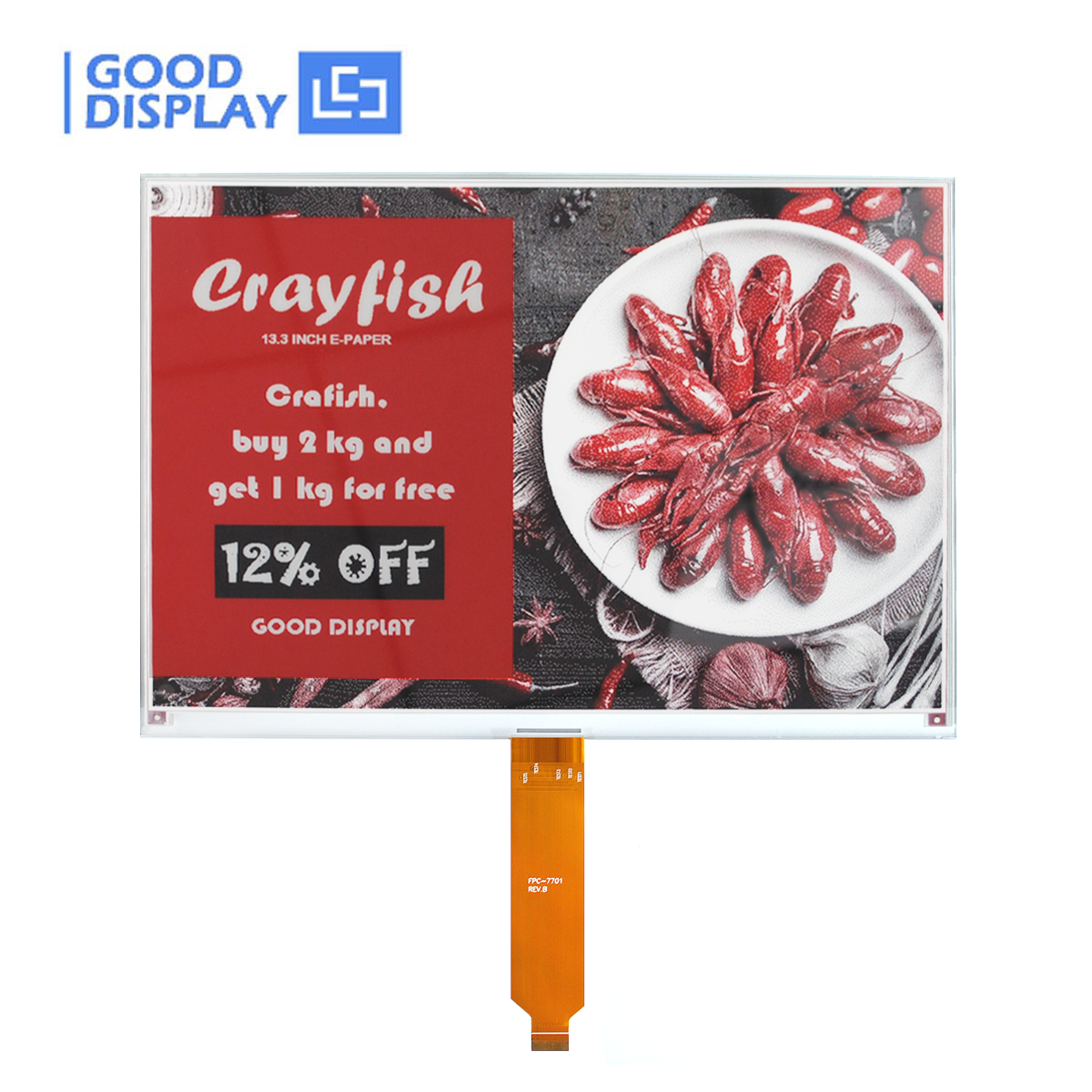

This is a 13.3 inch e-ink display large electronic paper screen, with 960x680 resolution, SPI interface, Supports full update for 27s、 partial update for 2.6s, and the display is capable to display images with black white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, this 13.3 inch e-paper display GDEM133Z91 is an ideal choice for applications such as industrial instrument, ebook reader, electronic menu and so on.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
*Tip: Parallel port, wide temperature, high resolution, supports fast refresh and partial refresh, large size display screen.
Package A | + | ||||||||
a. Monochrome 13.3 inch Big E-ink Display HD 960x680 Resolution E-paper Screen, GDEM133Z91 * 1pc | b. FPC Connector * 1pc | ||||||||
|
|||||||||

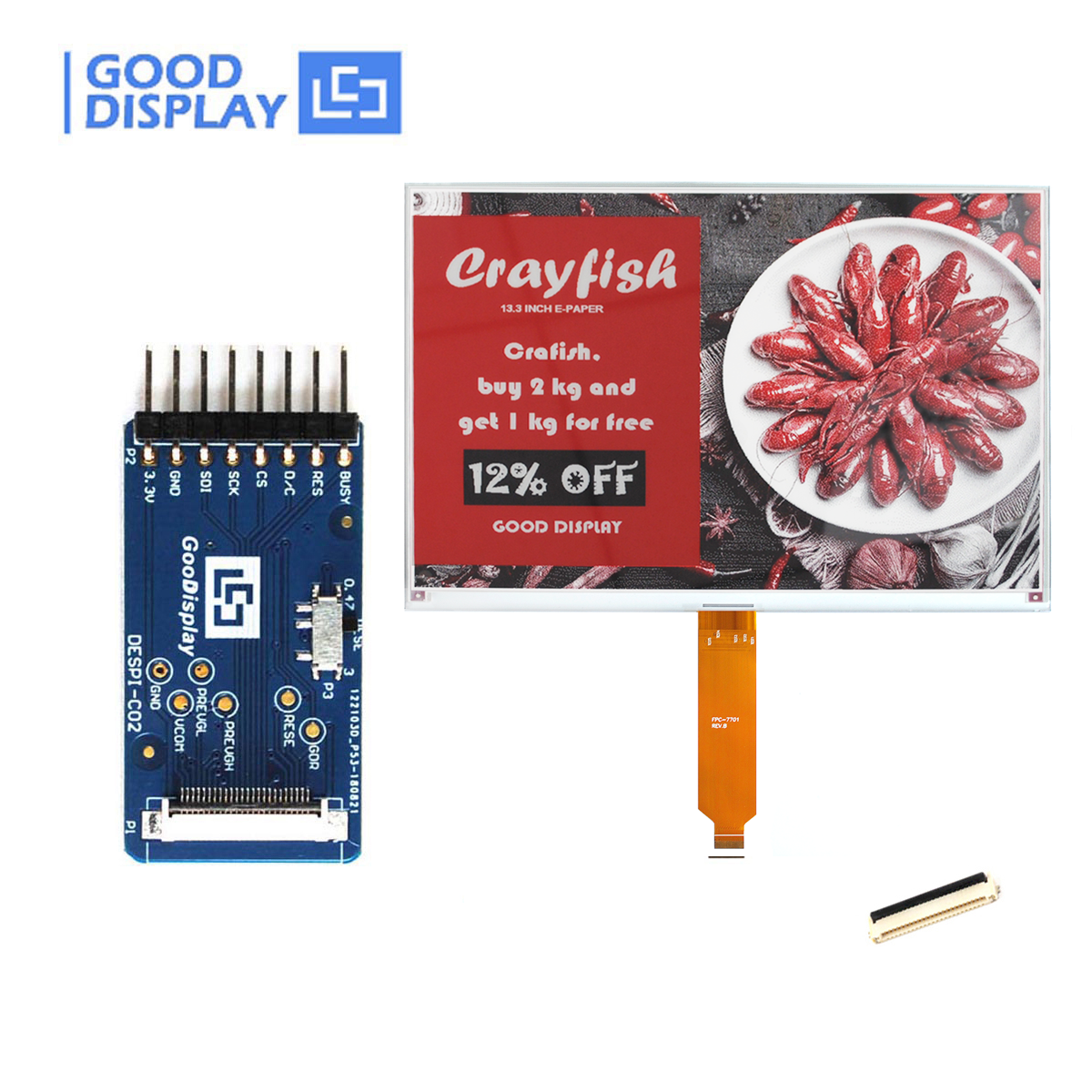

Package B | + | + | |||||||
a. Monochrome 13.3 inch Big E-ink Display HD 960x680 Resolution E-paper Screen, GDEM133Z91 * 1pc | b. FPC Connector * 1pc | c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02* 1pc | |||||||
|
|||||||||

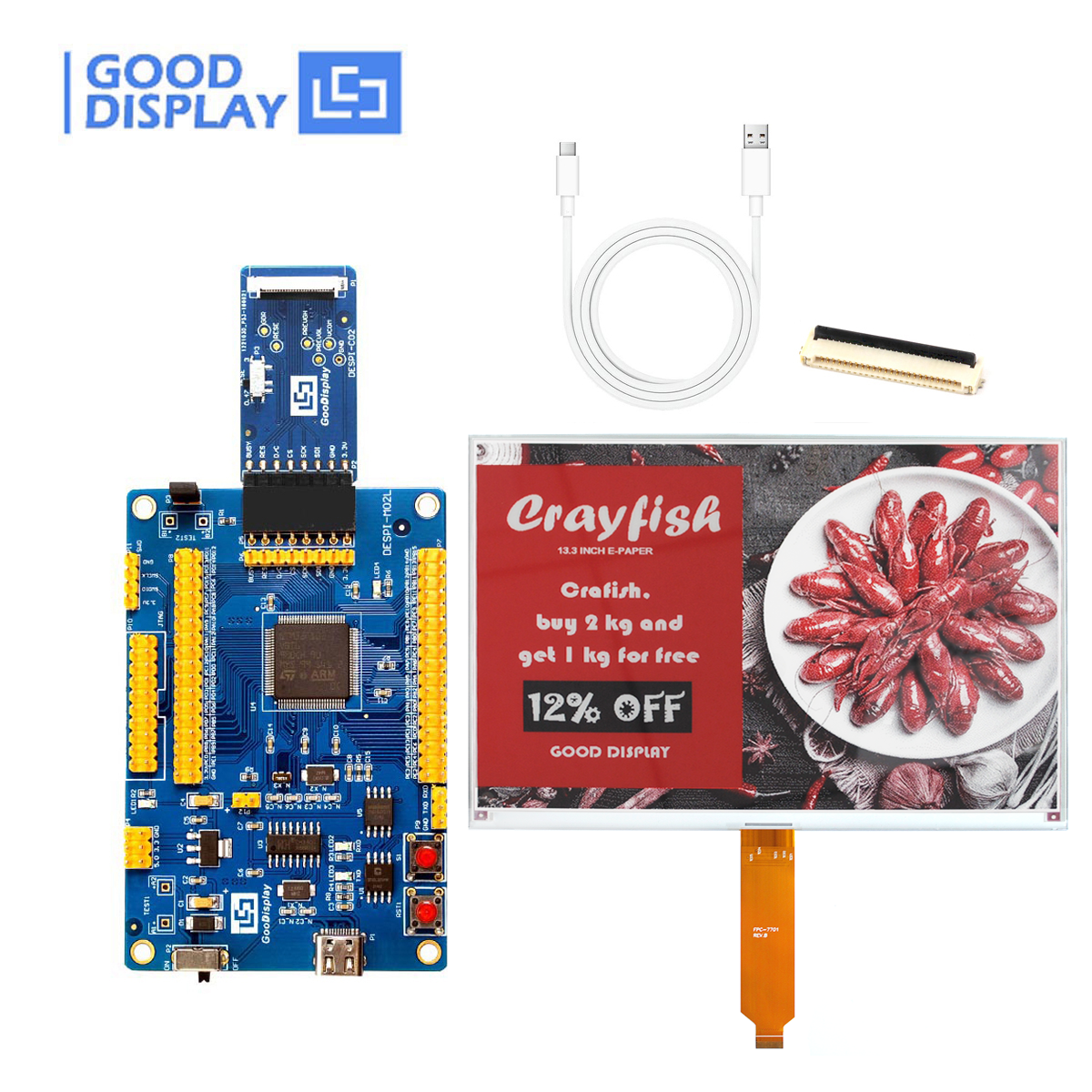

Package C | + | + | + | ||||||
a. Monochrome 13.3 inch Big E-ink Display HD 960x680 Resolution E-paper Screen, GDEM133Z91 * 1pc | b. FPC Connector * 1pc | c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02) * 1pc | d. USB Cable * 1pc | ||||||
|

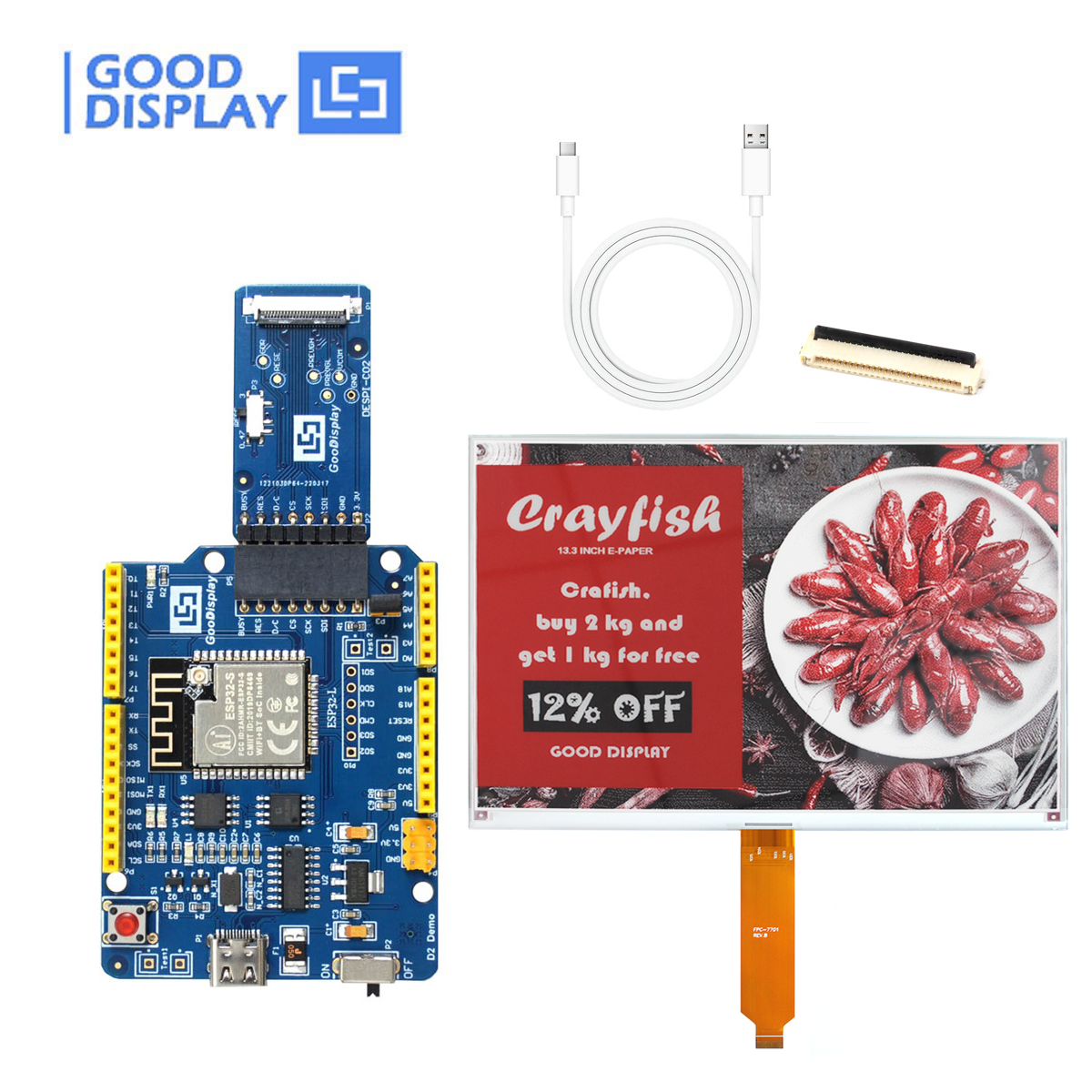

Package D | + | + | + | ||||
a. Monochrome 13.3 inch Big E-ink Display HD 960x680 Resolution E-paper Screen, GDEM133Z91 * 1pc | b. FPC Connector * 1pc | c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02) * 1pc | d. USB Cable * 1pc |
PART NUMBER |
GDEM133Z91 |
||
SIZE |
13.3 inch |
INTERFACE | SPI |
TYPE |
Dot Matrix |
MAX GRAYSCALE | 16 |
RESOLUTION |
960X680 |
COLOR | Black,White,Red |
OUTLINE SIZE(mm) |
286.32×212.26 ×1.20 |
FULL SCREEN UPDATE(s) | 27 |
ACTIVE SIZE(mm) |
275.52×195.16 |
PARTIAL SCREEN UPDATE(s) | 1 |
PIXEL PITCH(mm) |
0.287×0.287 |
POWER CONSUMPTION OF THE REFRESH(mW) | 66 |
OPERATING TEMP. |
0℃~40℃ |
STANDBY POWER CONSUMPTION (mW) | 0.003 |
STORAGE TEMP. | -25℃~60℃ |
Grayscale |
4 |
● Support Partial Refresh.
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● Wide temperature operating range from -25℃~60℃ with 1-bit WF
● Low power consumption, basically power is only required for refreshing
☆ RELATED INFORMATION DOWNLOAD
● GDEM133Z91_Specification
● Picture Production and Bitmap Convert for GDEM133Z91
● GDEM133Z91 STM32 Sample Code
● GDEM133Z91 ESP32 Sample Code
● GDEM133Z91 ESP8266 Sample Code
Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
PART NUMBER | SIZE | COLOR | GREY SCALE | RESOLUTION | ACTIVE SIZE(mm) | FULL REFRESH TIME (S) | OPERATING TEMP. | PARTIAL REFRESH | FLEXIBLE | INTERFACE |
GDEW0102T4 | 1.02'' | BW | 2 | 128x80 | 21.76x14 | 3 | 0℃~50℃ | √ | SPI | |
GDEW0102I3F | 1.02'' | BW | 2 | 128x80 | 21.76x14 | 3 | 0℃~50℃ | √ | √ | SPI |
GDEW0154M10 | 1.54'' | BW | 2 | 152x152 | 27.512x27.512 | 3 | -20℃~60℃ | SPI | ||
GDEH0154D67 | 1.54'' | BW | 4 | 200x200 | 27x27 | 2 | 0℃~50℃ | √ | SPI | |
GDEW0154M09 | 1.54'' | BW | 2 | 200x200 | 27.6x27.6 | 0.82 | 0℃~50℃ | √ | SPI | |
GDEW0154T8D | 1.54'' | BW | 4 | 152x152 | 27.51x27.51 | 3 | 0℃~50℃ | √ | SPI | |
GDEH0154Z90 | 1.54'' | BWR | 2 | 200x200 | 27x27 | 15 | 0℃~40℃ | SPI | ||
GDEW0213M21 | 2.13'' | BW | 2 | 212x104 | 48.548x23.712 | 3 | -20℃~60℃ | SPI | ||
GDEW0213I5FD | 2.13'' | BW | 4 | 212x104 | 48.55x23.71 | 3 | 0℃~50℃ | √ | √ | SPI |
GDEM0213B74 | 2.13'' | BW | 4 | 250x122 | 48.55x23.7 | 3 | 0℃~50℃ | SPI | ||
GDEM0213U23 | 2.13'' | BWR | 2 | 250x122 | 23.67x48.50 | - | 0℃~25℃ | SPI | ||
GDEM0213D23 | 2.13'' | BW | 2 | 250x122 | 23.67x48.50 | - | 0℃~25℃ | SPI | ||
GDEW0213V7LT | 2.13'' | BW | 2 | 212x104 | 48.55x23.71 | 3 | -25℃~10℃ | √ | SPI | |
GDEY0213Z98 | 2.13'' | BWR | 2 | 250x122 | 48.55x23.7046 | 14 | 0℃~40℃ | SPI | ||
GDEW0213T5D | 2.13'' | BW | 4 | 212x104 | 48.55x23.71 | 3 | 0℃~50℃ | √ | SPI | |
GDEW0213T5D-FL01(With Frontlight) | 2.13'' | BW | 4 | 212x104 | 48.55x23.71 | 3 | 0℃~50℃ | √ | SPI | |
GDEW026T0D | 2.6'' | BW | 4 | 296x152 | 60.09x30.7 | 3 | 0℃~50℃ | √ | SPI | |
GDEW027W3 | 2.7'' | BW | 4 | 264x176 | 57.288x38.192 | 3 | 0℃~50℃ | √ | SPI | |
GDEW027W3-T(With Touch Panel) | 2.7'' | BW | 4 | 264x176 | 57.288x38.192 | 3 | 0℃~50℃ | √ | SPI | |
GDEM029E97 | 2.9'' | BW | 2 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | SPI | ||
GDEH029Z13 | 2.9'' | BWR | 2 | 296x128 | 66.9x29.06 | 15 | 0℃~40℃ | SPI | ||
GDEM029T94 | 2.9'' | BW | 4 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | √ | SPI | |
GDEY029T94 | 2.9'' | BW | 4 | 296x128 | 66.896x29.056 | 3 | 0℃~50℃ | √ | SPI | |
GDEW029M06 | 2.9'' | BW | 2 | 296x128 | 66.896x29.056 | 3 | -20℃~60℃ | SPI | ||
GDEW029I6FD | 2.9'' | BW | 4 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | √ | √ | SPI |
GDEW029T5D | 2.9'' | BW | 4 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | √ | SPI | |
GDEW029T5D-FL02(With Frontlight) | 2.9'' | BW | 4 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | √ | SPI | |
GDEH037Z01 | 3.71'' | BWR | 2 | 416x240 | 81.54x47.04 | 16 | 0℃~40℃ | SPI | ||
GDEW0371W7 | 3.71'' | BW | 2 | 416x240 | 81.536x47.04 | 4 | 0℃~50℃ | SPI |
PART NUMBER | SIZE | COLOR | GREY SCALE | RESOLUTION | ACTIVE SIZE(mm) | FULL REFRESH TIME (S) | OPERATING TEMP. | PARTIAL REFRESH | FLEXIBLE | INTERFACE |
GDEW042C37 | 4.2'' | BWY | 2 | 400x300 | 84.8x63.6 | 28 | 0℃~40℃ | SPI | ||
GDEW042T2 | 4.2'' | BW | 4 | 400x300 | 84.8x63.6 | 3 | 0℃~50℃ | SPI | ||
GDEY042T91 | 4.2'' | BW | 2 | 400x300 | 84.8x63.6 | 3 | 0℃~50℃ | SPI | ||
GDEQ042Z21 | 4.2'' | BWR | 2 | 400x300 | 84.8x63.6 | 19 | 0℃~40℃ | SPI | ||
GDEY0579T93 | 5.79'' | BW | 2 | 792x272 | 139.00×47.74 | 3 | 0℃~50℃ | SPI | ||
GDEY0579Z93 | 5.79'' | BWR | 2 | 792x272 | 139.00×47.74 | 20 | 0℃~40℃ | SPI | ||
GDEW0583C64 | 5.83'' | BWY | 2 | 600x448 | 118.80x88.26 | 25 | 0℃~40℃ | SPI | ||
GDEY0583T8 | 5.83'' | BW | 2 | 648x480 | 118.78x88.22 | 3 | 0℃~50℃ | SPI | ||
GDEW0583Z83 | 5.83'' | BWR | 2 | 648x480 | 119.232x88.32 | 12 | 0℃~40℃ | SPI | ||
GDEY075T7 | 7.5'' | BW | 4 | 800x480 | 163.2x97.72 | 3 | 0℃~50℃ | √ | SPI | |
GDEY075Z08 | 7.5'' | BWR | 2 | 800x480 | 163.2x97.72 | 12 | 0℃~40℃ | SPI | ||
GDEP097TC2 |
9.7'' |
BW |
16 |
1200x825 |
202.8x139.425 |
1 |
0℃~50℃ |
√ |
|
Parallel |
GDEQ102T90 | 10.2'' | BW | 2 | 960x640 | 215.52x143.68 | 4 | 0℃~50℃ | SPI | ||
GDEQ102Z90 | 10.2'' | BWR | 2 | 960x640 | 215.52x143.68 | 4 | 0℃~50℃ | SPI | ||
GDEH116T91 | 11.6'' | BW | 2 | 960x640 | 244.512x163.008 | 5 | 0℃~50℃ | SPI | ||
GDEH116Z91 | 11.6'' | BWR | 2 | 960x640 | 244.512x163.008 | 30 | 0℃~35℃ | SPI | ||
GDEY1248Z51 | 12.48'' | BWR | 2 | 1304x984 | 252.98x190.90 | 25 | 0℃~40℃ | SPI | ||
GDEP133UT3 | 13.3'' | BW | 16 | 1600x1200 | 270.4x202.8 | 1 | -15℃~65℃ | Parallel |
