This is a large epaper e-ink display, 10.2 inch, with 960x640 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e paper display modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This epaper display GDEM102Z91 is perfect for low power devices powered by solar or batteries.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

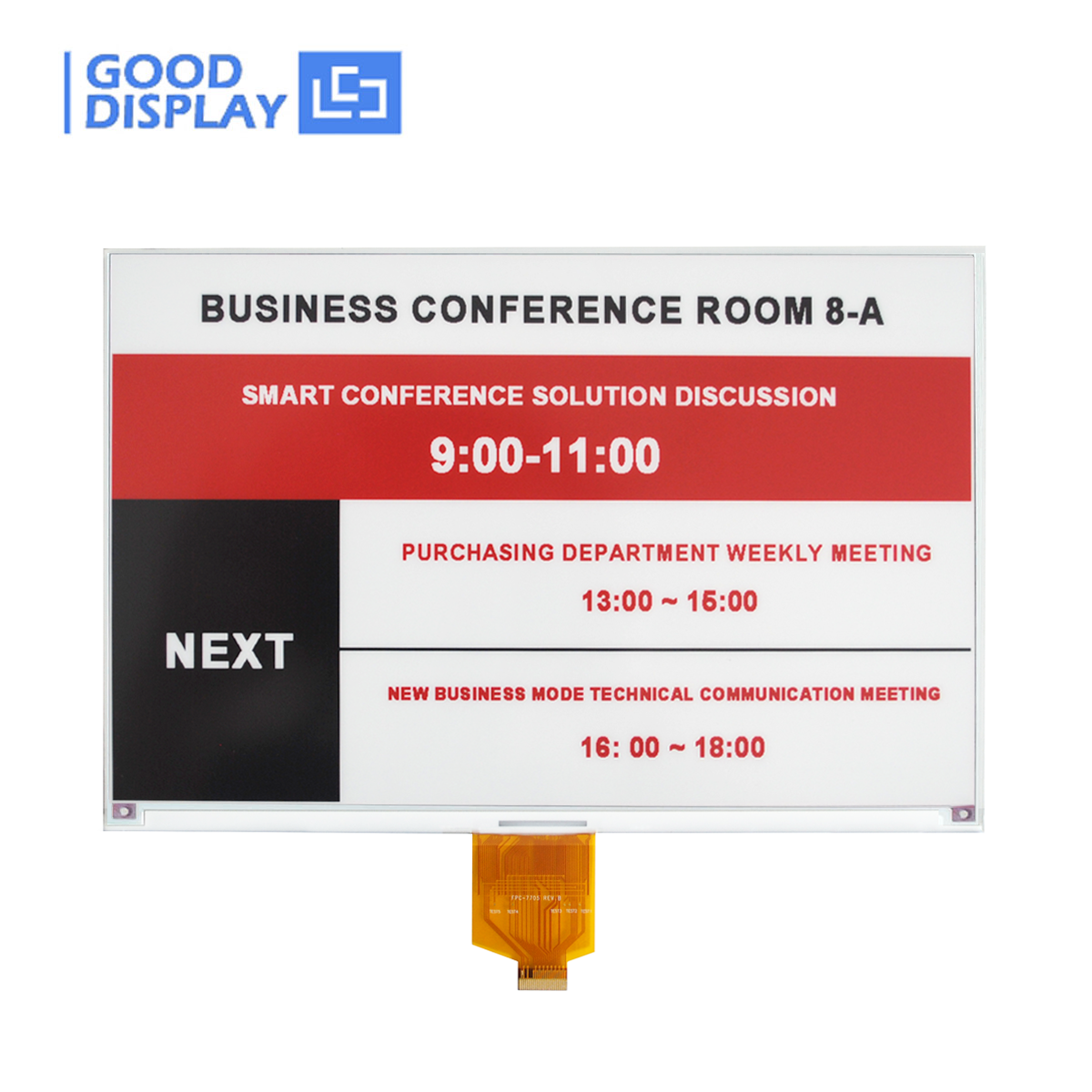

Package A | + | ||||||||
a. large e-paper 10.2 inch color eink epd screen for electronic menu, GDEM102Z91 *1pc | b. FPC Connector * 1pc | ||||||||
|
|||||||||

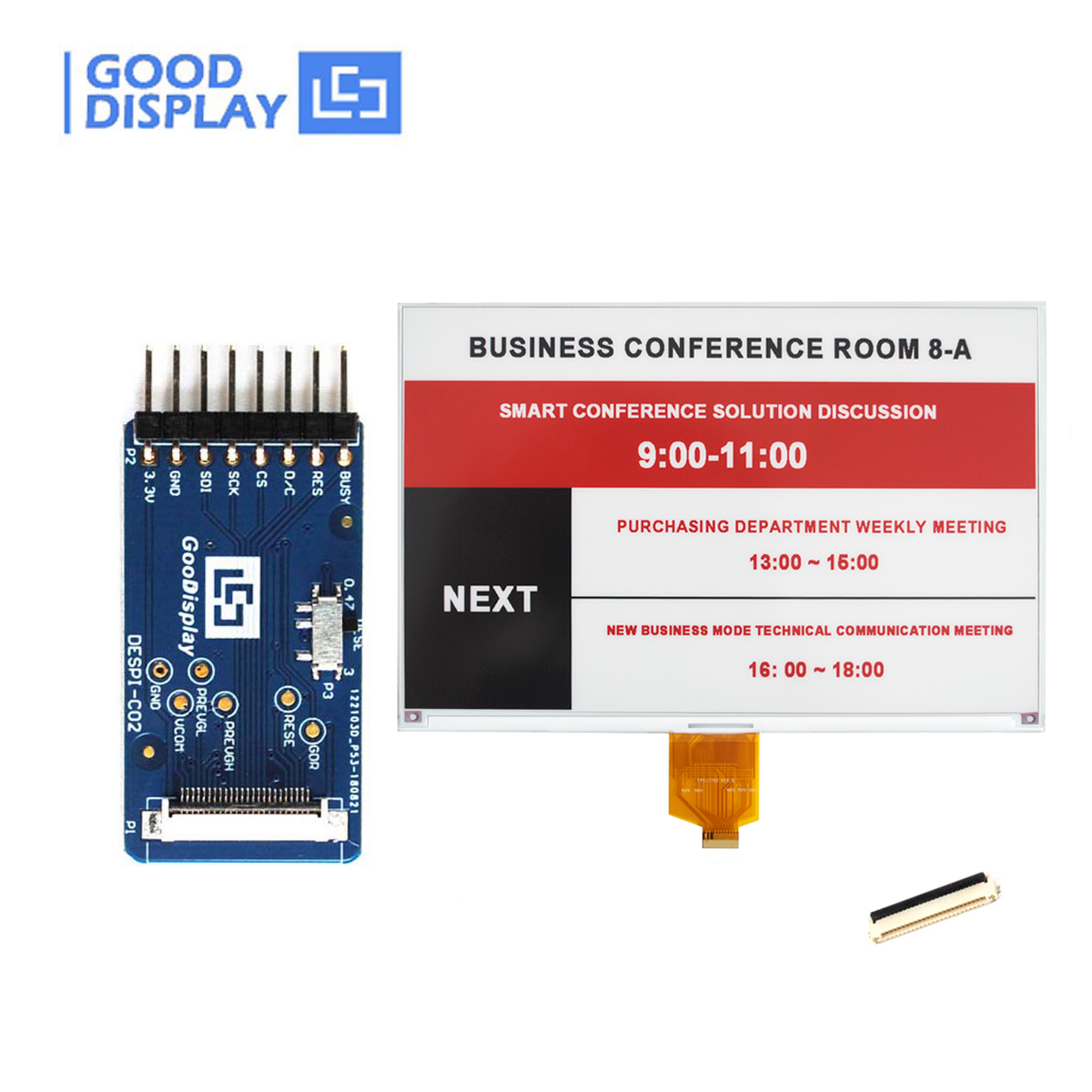

Package B | + | + | |||||||
a. large e-paper 10.2 inch color eink epd screen for electronic menu, GDEM102Z91 *1pc | b. FPC Connector * 1pc | c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02* 1pc | |||||||
|
|||||||||

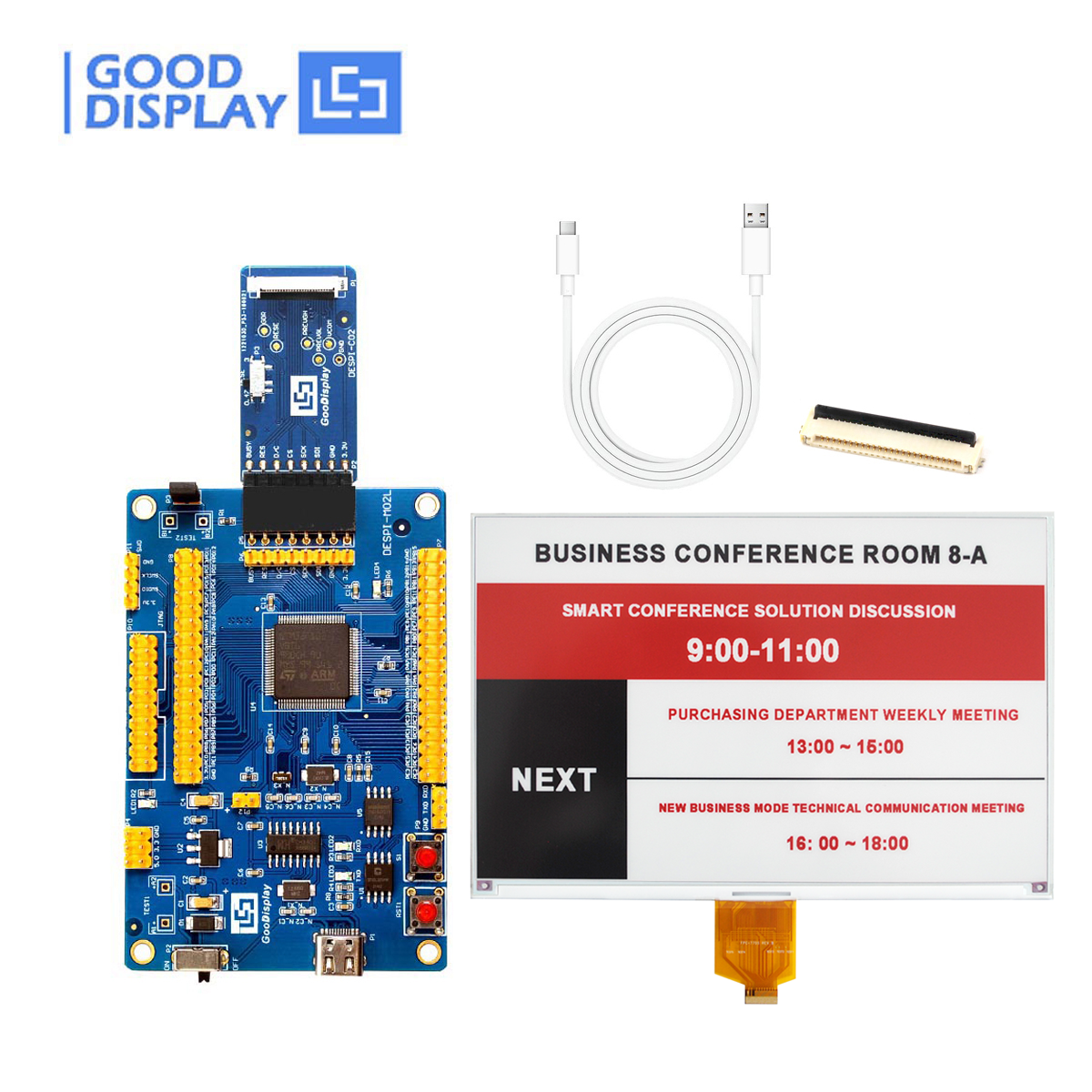

Package C | + | + | + | ||||||
a. large e-paper 10.2 inch color eink epd screen for electronic menu, GDEM102Z91 *1pc | b. FPC Connector * 1pc | c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02) * 1pc | d. USB Cable * 1pc | ||||||
|

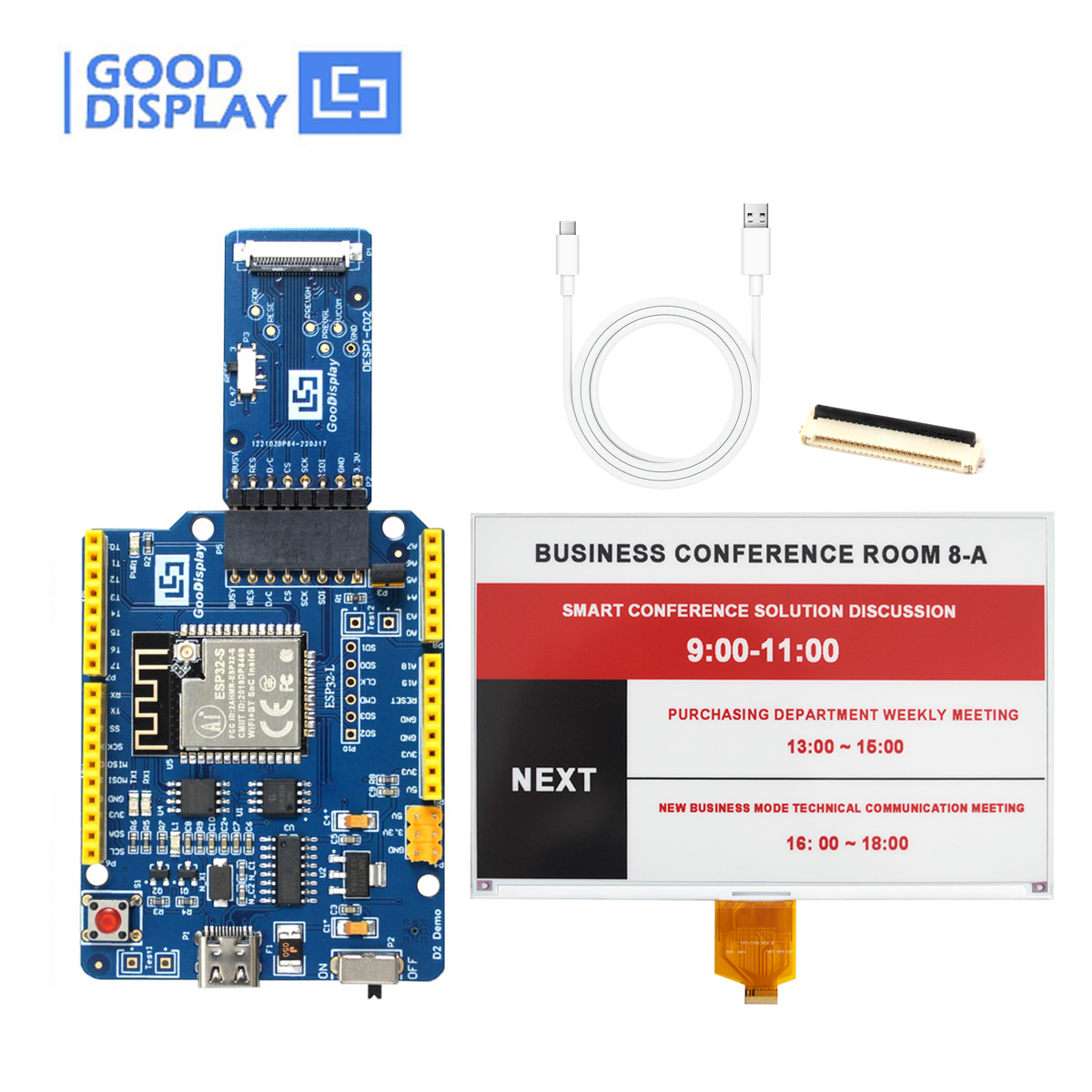

Package D | + | + | + | ||||
a. large e-paper 10.2 inch color eink epd screen for electronic menu, GDEM102Z91 *1pc | b. FPC Connector * 1pc | c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02) * 1pc | d. USB Cable * 1pc |
PART NUMBER | GDEM102Z91 | ||
TYPE | Dot Matrix | STORAGE TEMP. | -25℃~40℃ |
SIZE | 10.2 inch | CONNECTOR | 24 Pin FPC |
IC | SSD1677 | MAX GRAYSCALE | 2 |
RESOLUTION | 960x640 | COLOR | Black, White, Red |
OUTLINE SIZE(mm) | 224x157x0.9 | INTERFACE | SPI |
ACTIVE SIZE(mm) | 215.52x143.68 | FULL REFRESH(s) | 20 |
PIXEL PITCH(mm) | 0.2245x0.2245 | POWER CONSUMPTION OF THE REFRESH(mW) | 39 |
OPERATING TEMP. | 0℃~40℃ | STANDBY POWER CONSUMPTION (mW) | 0.003 |
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
● Development platform available STM32 / ESP8266 / ESP32
● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)
● ESP32-L(C02) (WiFi / Bluetooth)
☆ RELATED INFORMATION DOWNLOAD
Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
PART NUMBER | SIZE | COLOR | GREY SCALE | RESOLUTION | ACTIVE SIZE(mm) | FULL REFRESH TIME (S) | OPERATING TEMP. | PARTIAL REFRESH | FLEXIBLE | INTERFACE |
GDEW0102T4 | 1.02'' | BW | 2 | 128x80 | 21.76x14 | 3 | 0℃~50℃ | √ | SPI | |
GDEW0102I3F | 1.02'' | BW | 2 | 128x80 | 21.76x14 | 3 | 0℃~50℃ | √ | √ | SPI |
GDEW0154M10 | 1.54'' | BW | 2 | 152x152 | 27.512x27.512 | 3 | -20℃~60℃ | SPI | ||
GDEH0154D67 | 1.54'' | BW | 4 | 200x200 | 27x27 | 2 | 0℃~50℃ | √ | SPI | |
GDEW0154M09 | 1.54'' | BW | 2 | 200x200 | 27.6x27.6 | 0.82 | 0℃~50℃ | √ | SPI | |
GDEW0154T8D | 1.54'' | BW | 4 | 152x152 | 27.51x27.51 | 3 | 0℃~50℃ | √ | SPI | |
GDEH0154Z90 | 1.54'' | BWR | 2 | 200x200 | 27x27 | 15 | 0℃~40℃ | SPI | ||
GDEW0213M21 | 2.13'' | BW | 2 | 212x104 | 48.548x23.712 | 3 | -20℃~60℃ | SPI | ||
GDEW0213I5FD | 2.13'' | BW | 4 | 212x104 | 48.55x23.71 | 3 | 0℃~50℃ | √ | √ | SPI |
GDEM0213B74 | 2.13'' | BW | 4 | 250x122 | 48.55x23.7 | 3 | 0℃~50℃ | SPI | ||
GDEM0213U23 | 2.13'' | BWR | 2 | 250x122 | 23.67x48.50 | - | 0℃~25℃ | SPI | ||
GDEM0213D23 | 2.13'' | BW | 2 | 250x122 | 23.67x48.50 | - | 0℃~25℃ | SPI | ||
GDEW0213V7LT | 2.13'' | BW | 2 | 212x104 | 48.55x23.71 | 3 | -25℃~10℃ | √ | SPI | |
GDEY0213Z98 | 2.13'' | BWR | 2 | 250x122 | 48.55x23.7046 | 14 | 0℃~40℃ | SPI | ||
GDEW0213T5D | 2.13'' | BW | 4 | 212x104 | 48.55x23.71 | 3 | 0℃~50℃ | √ | SPI | |
GDEW0213T5D-FL01(With Frontlight) | 2.13'' | BW | 4 | 212x104 | 48.55x23.71 | 3 | 0℃~50℃ | √ | SPI | |
GDEW026T0D | 2.6'' | BW | 4 | 296x152 | 60.09x30.7 | 3 | 0℃~50℃ | √ | SPI | |
GDEW027W3 | 2.7'' | BW | 4 | 264x176 | 57.288x38.192 | 3 | 0℃~50℃ | √ | SPI | |
GDEW027W3-T(With Touch Panel) | 2.7'' | BW | 4 | 264x176 | 57.288x38.192 | 3 | 0℃~50℃ | √ | SPI | |
GDEM029E97 | 2.9'' | BW | 2 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | SPI | ||
GDEH029Z13 | 2.9'' | BWR | 2 | 296x128 | 66.9x29.06 | 15 | 0℃~40℃ | SPI | ||
GDEM029T94 | 2.9'' | BW | 4 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | √ | SPI | |
GDEY029T94 | 2.9'' | BW | 4 | 296x128 | 66.896x29.056 | 3 | 0℃~50℃ | √ | SPI | |
GDEW029M06 | 2.9'' | BW | 2 | 296x128 | 66.896x29.056 | 3 | -20℃~60℃ | SPI | ||
GDEW029I6FD | 2.9'' | BW | 4 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | √ | √ | SPI |
GDEW029T5D | 2.9'' | BW | 4 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | √ | SPI | |
GDEW029T5D-FL02(With Frontlight) | 2.9'' | BW | 4 | 296x128 | 66.9x29.06 | 3 | 0℃~50℃ | √ | SPI | |
GDEH037Z01 | 3.71'' | BWR | 2 | 416x240 | 81.54x47.04 | 16 | 0℃~40℃ | SPI | ||
GDEW0371W7 | 3.71'' | BW | 2 | 416x240 | 81.536x47.04 | 4 | 0℃~50℃ | SPI |
PART NUMBER | SIZE | COLOR | GREY SCALE | RESOLUTION | ACTIVE SIZE(mm) | FULL REFRESH TIME (S) | OPERATING TEMP. | PARTIAL REFRESH | FLEXIBLE | INTERFACE |
GDEW042C37 | 4.2'' | BWY | 2 | 400x300 | 84.8x63.6 | 28 | 0℃~40℃ | SPI | ||
GDEW042T2 | 4.2'' | BW | 4 | 400x300 | 84.8x63.6 | 3 | 0℃~50℃ | SPI | ||
GDEY042T91 | 4.2'' | BW | 2 | 400x300 | 84.8x63.6 | 3 | 0℃~50℃ | SPI | ||
GDEQ042Z21 | 4.2'' | BWR | 2 | 400x300 | 84.8x63.6 | 19 | 0℃~40℃ | SPI | ||
GDEY0579T93 | 5.79'' | BW | 2 | 792x272 | 139.00×47.74 | 3 | 0℃~50℃ | SPI | ||
GDEY0579Z93 | 5.79'' | BWR | 2 | 792x272 | 139.00×47.74 | 20 | 0℃~40℃ | SPI | ||
GDEW0583C64 | 5.83'' | BWY | 2 | 600x448 | 118.80x88.26 | 25 | 0℃~40℃ | SPI | ||
GDEY0583T8 | 5.83'' | BW | 2 | 648x480 | 118.78x88.22 | 3 | 0℃~50℃ | SPI | ||
GDEW0583Z83 | 5.83'' | BWR | 2 | 648x480 | 119.232x88.32 | 12 | 0℃~40℃ | SPI | ||
GDEY075T7 | 7.5'' | BW | 4 | 800x480 | 163.2x97.72 | 3 | 0℃~50℃ | √ | SPI | |
GDEY075Z08 | 7.5'' | BWR | 2 | 800x480 | 163.2x97.72 | 12 | 0℃~40℃ | SPI | ||
GDEP097TC2 |
9.7'' |
BW |
16 |
1200x825 |
202.8x139.425 |
1 |
0℃~50℃ |
√ |
|
Parallel |
GDEQ102T90 | 10.2'' | BW | 2 | 960x640 | 215.52x143.68 | 4 | 0℃~50℃ | SPI | ||
GDEQ102Z90 | 10.2'' | BWR | 2 | 960x640 | 215.52x143.68 | 4 | 0℃~50℃ | SPI | ||
GDEH116T91 | 11.6'' | BW | 2 | 960x640 | 244.512x163.008 | 5 | 0℃~50℃ | SPI | ||
GDEH116Z91 | 11.6'' | BWR | 2 | 960x640 | 244.512x163.008 | 30 | 0℃~35℃ | SPI | ||
GDEY1248Z51 | 12.48'' | BWR | 2 | 1304x984 | 252.98x190.90 | 25 | 0℃~40℃ | SPI | ||
GDEP133UT3 | 13.3'' | BW | 16 | 1600x1200 | 270.4x202.8 | 1 | -15℃~65℃ | Parallel |
